SG-38MARB-01 Specifications subject to change without notice. 9

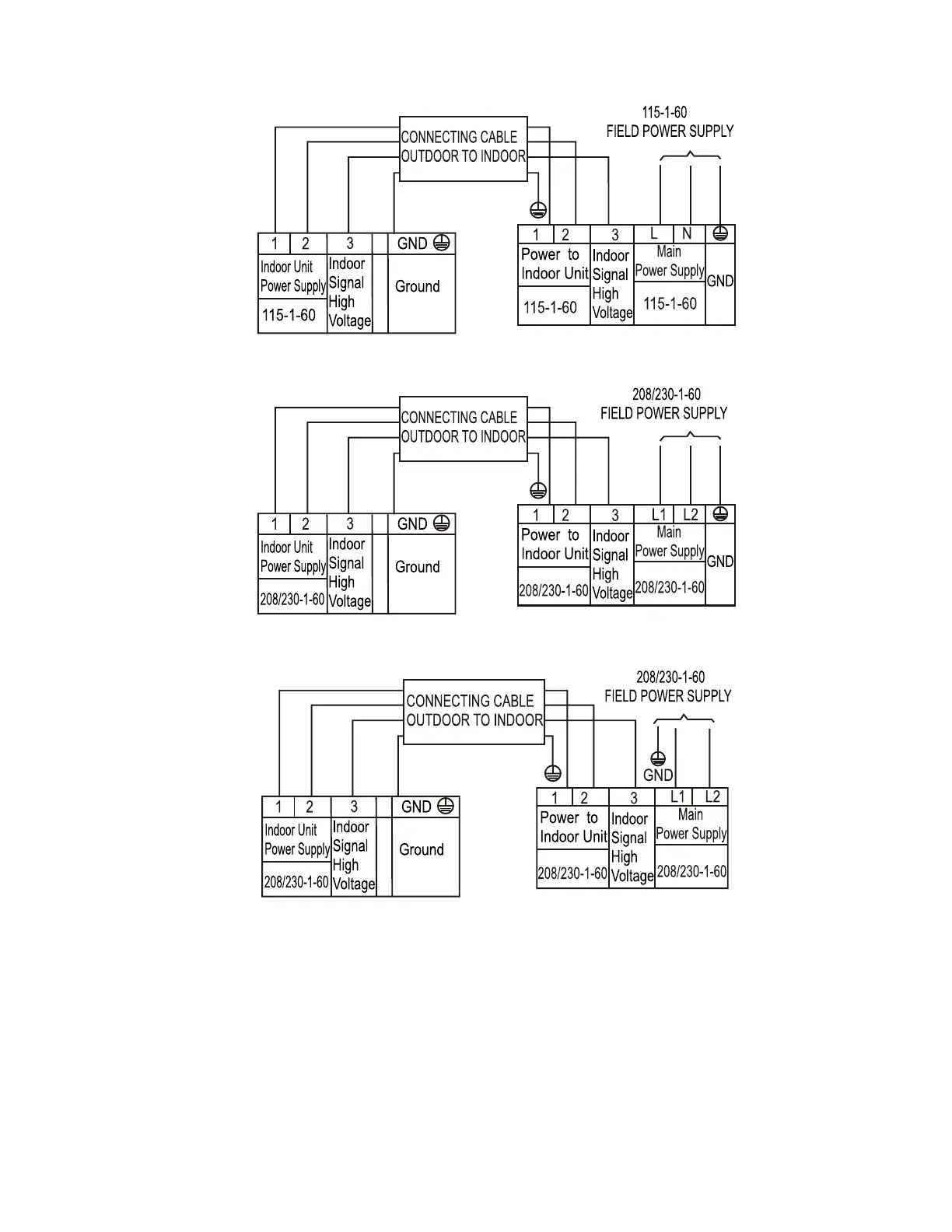

CONNECTION DIAGRAMS
Fig. 7 — Connection Diagram 12K (115 V)
Fig. 8 — Connection Diagram 9K-12K (208/230-1-60 V)
Fig. 9 — Connection Diagram 24K-36K (208/230-1-60 V)
NOTES:
1. Do not use thermostat wire for any connection between indoor and outdoor units.
2. All connections between indoor and outdoor units must be as shown in Figures 7 - 9. The connections are sensitive to polarity and will result in a
fault code.
