Compressor Check
1. Disconnect the compressor power cord from the outdoor PCB.
2. Measure the resistance valve of each winding using a multi-meter.
3. Check the resistance valve of each winding in Tables 21 - 21.
Table 21 — Resistance Value

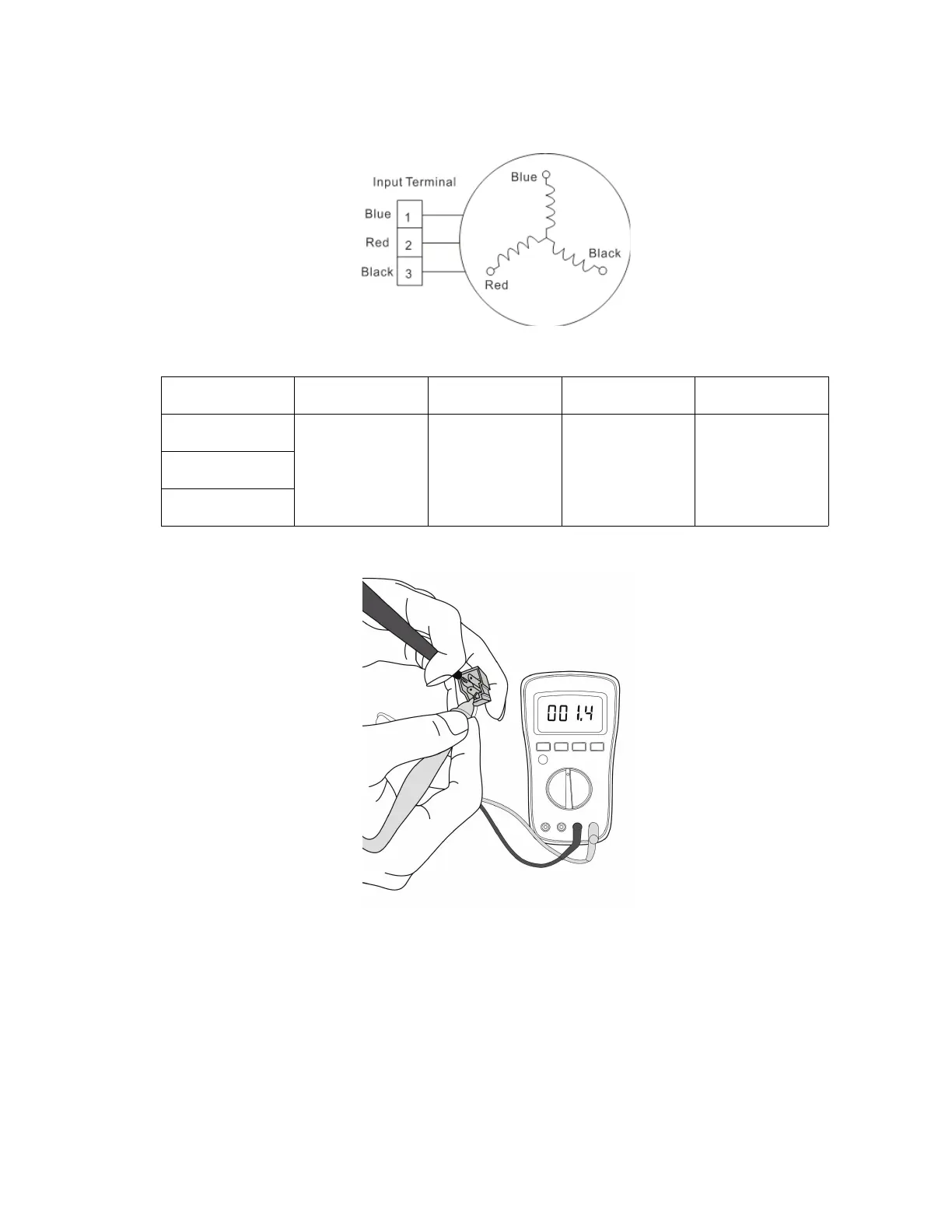

Fig. 44 — Testing
Resistance Value
KSK103D33UEZ3(YJ) KTM240D43UKT
KTN110D42UFZ KTF250D22UMT
Blue-Red
2.13
1.03 1.82 0.75Blue-Black
Red-Black
