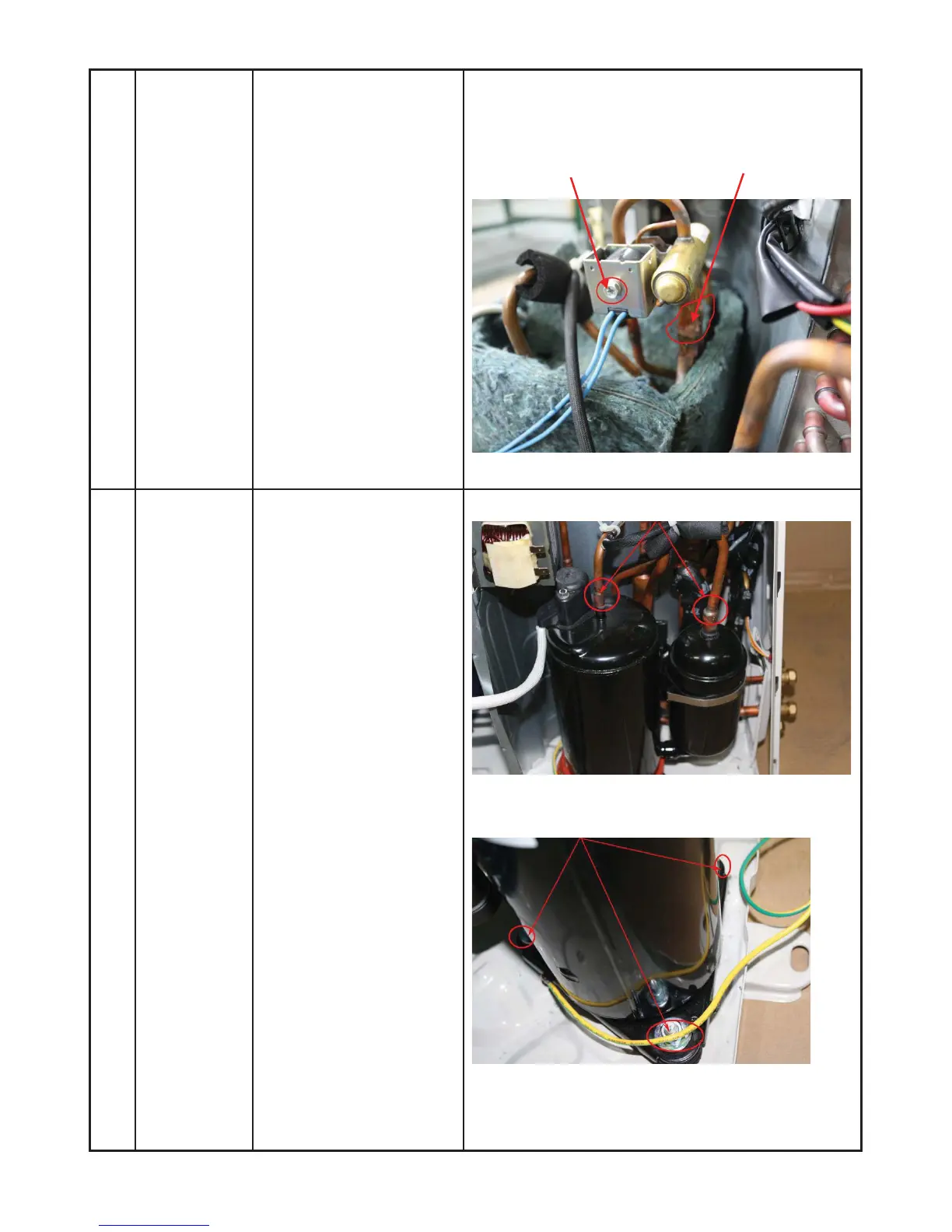

DISASSEMBLY INSTRUCTIONS SIZES 12K (115V) (CONT)

4 Four-way

valve

How to remove the

four-way valve.

1) Perform the work of

sections 1 and 3.

2) Recover refrigerant

from the refrigerant

circuit.

3) Remove the coil screw

then remove the coil.

4) Detach the welded

parts of the four-way

valve and pipe.

5) Remove the four-way

valve assembly.

The picture of four-way valve may be different from

your actual valve.

5 Compressor How to remove the

compressor.

1) Complete the work of

sections1 and 3.

Recover the refrigerant

from the refrigerant

circuit.

2) Remove the discharge

and suction pipes with

a burner.

3) Remove the hex nuts

and washers securing

the compressor on the

bottom plate.

4) Lift the compressor

from the base pan

assembly.
