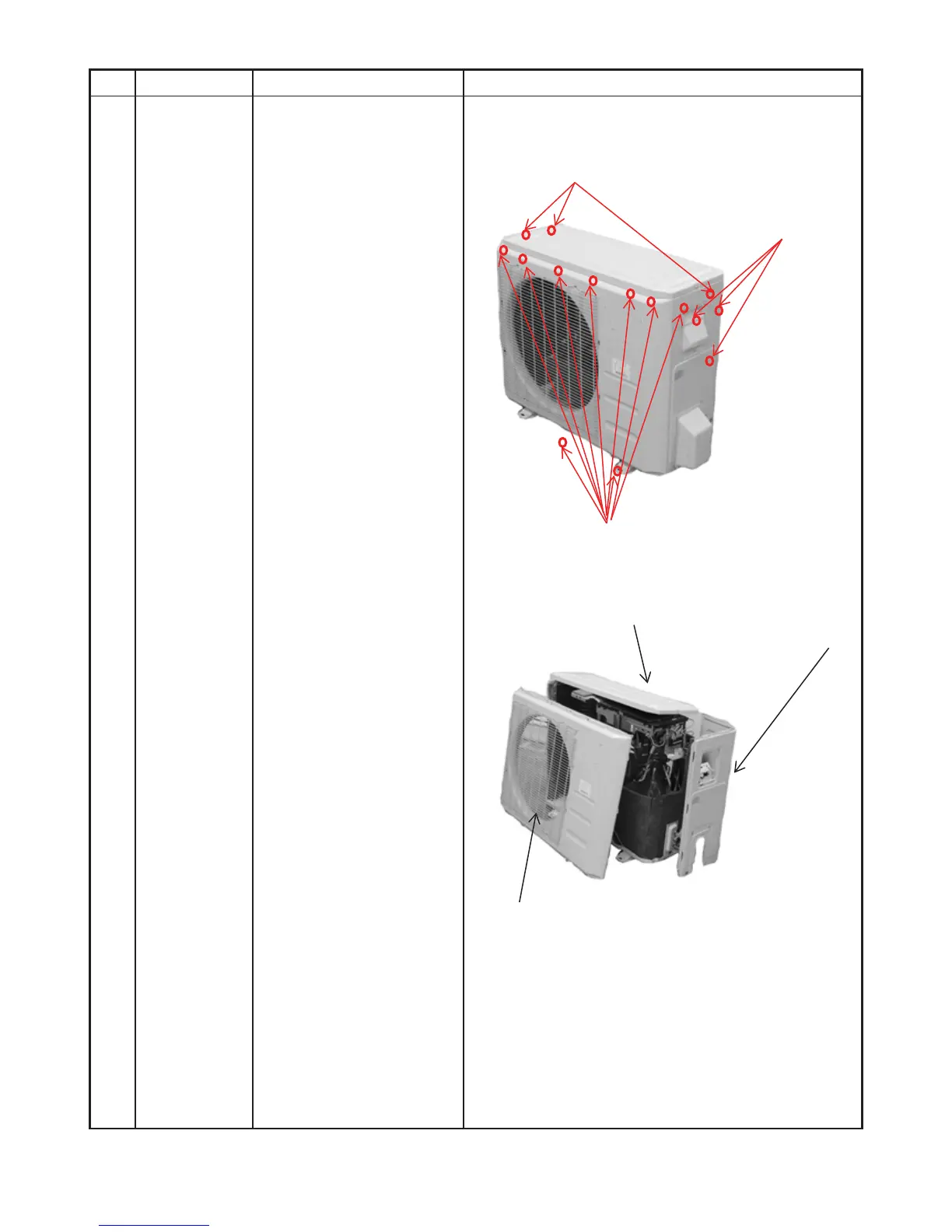

DISASSEMBLY INSTRUCTIONS SIZES 18K (208−230V)
No. Part name Procedures Remarks
Panel plate How to remove the panel
plate.
1) Stop the air
conditioner and turn
ĀOFFā the power
breaker.
2) Remove the top panel
screws (3).
3) Remove the front
panel screws (9).
4) Remove the right side
panel screws (8).
ƻ
2
ƻ
4
ƻ
3
Toppanelscrews (3)
Front panel screws (9)
Big handle
screws (3)
1
