DISASSEMBLY INSTRUCTIONS SIZES 24K (208−230V)
No. Part name Procedures Remarks
1 Panel plate How to remove the panel
plate.
1) Stop the air
conditioner and turn
“OFF” the power
breaker.
2) Remove the big
handle first, then
remove the top cover
(7 screws).
3) Remove the front
panel screws (11).
4) Remove the right side
panel screws (13).
ƻ
2
ƻ
4
ƻ
3

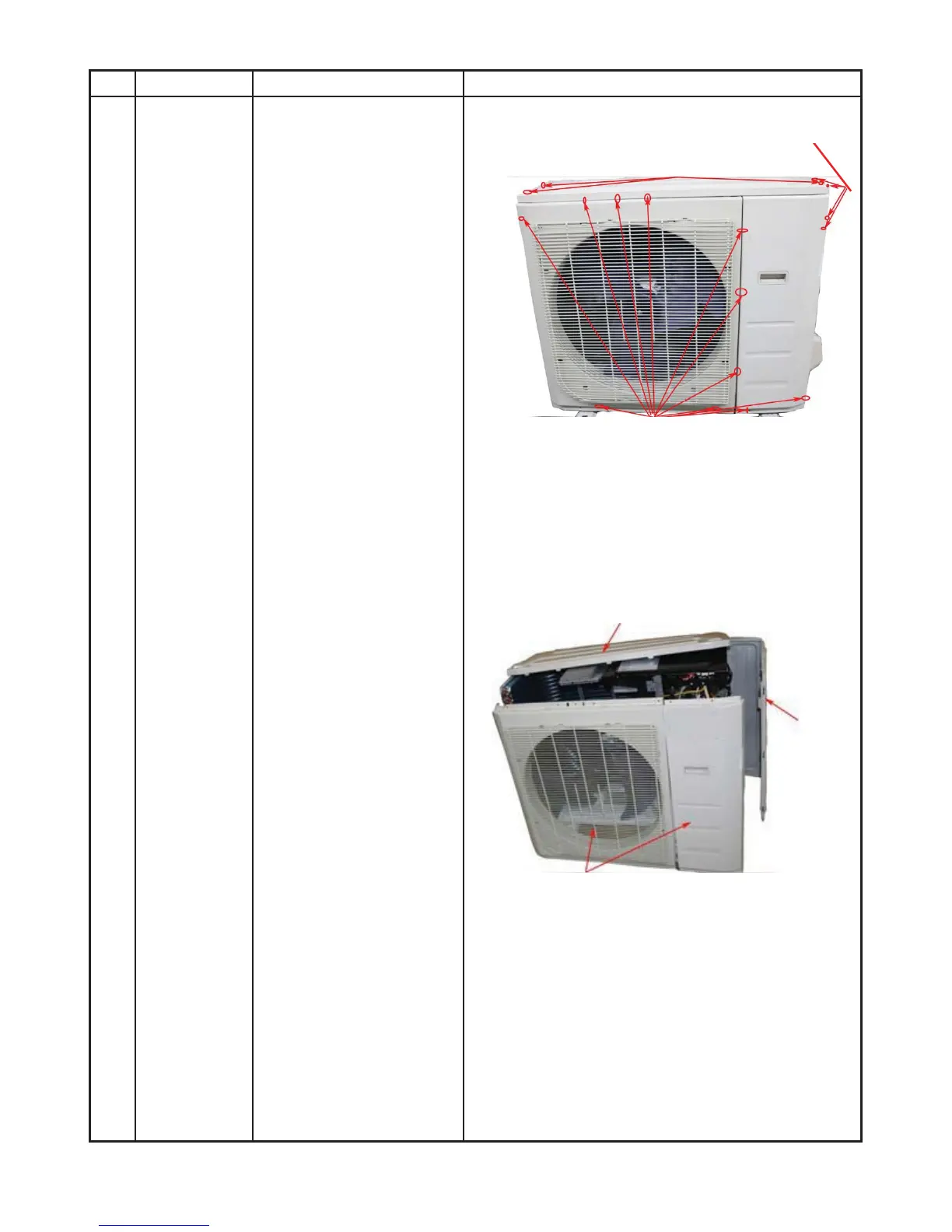

Front panel screws (11)
Top panel screws (3), 1 screw is under the big handle)
Big handle screws (4)
