DISASSEMBLY INSTRUCTIONS SIZES 12K (115V)
1 Panel plate How to remove the panel
plate.
1. Stop the air conditioner
and turn “OFF” the
power breaker.
2. Remove the big handle
first, and then remove
the top cover (3
screws).
3. Remove the front panel
screws (7).
4. Remove the right side
panel screws (11).
ƻ
2
ƻ
4
ƻ
3
ƻ
3

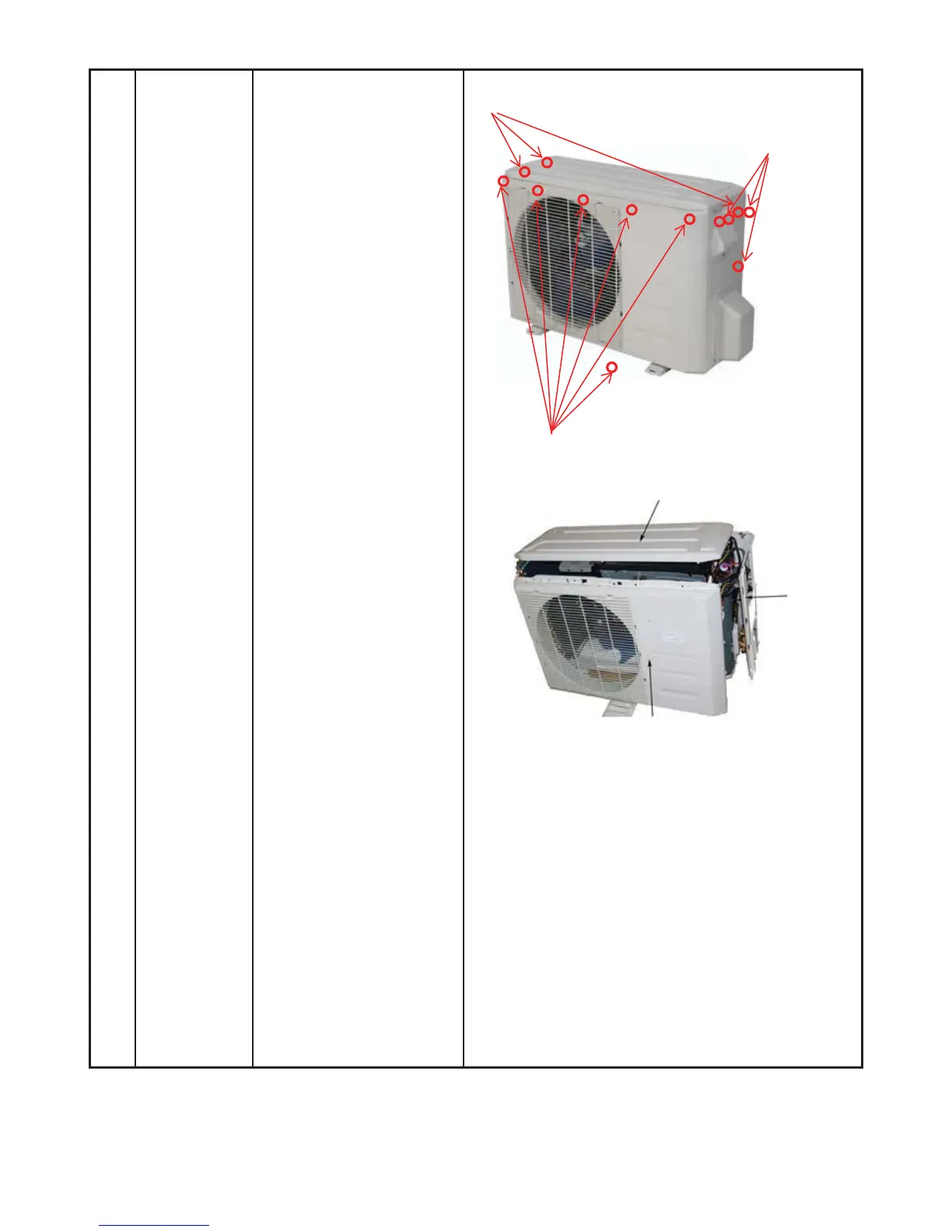

Front panel screws (7)
Top panel screws (3), 1 screws is under the big handle
Big handle
(3 screws)
