DIMENSIONS

Table 8—Dimensions

Cooling

Only

System Size Height (H) in. (mm) Width (W) in. (mm) Depth (D) in. (mm) Weight-Net lbs. (kg)

12K (115V) 21.85(555) 30.31(770) 11.81(300) 57.8(26.2)

12K (208/230V) 21.85(555) 30.31(770) 11.81(300) 53.8(24.4)

18K (208/230V) 21.85 (555) 30.31 (770) 11.81 (300) 65.9 (29.9)

24K (208/230V) 27.64(702) 33.27(845) 14.29(363) 88.6(40.2)

Heat

Pump

System Size Height (H) in. (mm) Width (W) in. (mm) Depth (D) in. (mm) Weight-Net lbs. (kg)

12K (115V) 21.85(555) 30.31(770) 11.81(300) 69(31.3)

9K (208/230V) 21.85(555) 30.31(770) 11.81(300) 63(28.6)

12K (208/230V) 21.85(555) 30.31(770) 11.81(300) 65.5(29.7)

18K (208/230V) 21.81(554) 31.50(800) 13.11(333) 79.6(36.1)

24K (208/230V) 27.64(702) 33.27(845) 14.29(363) 114.2(51.8)

19.17(487) W1

2.76(70) W

11.73(298)

21.85(555)

11.81(300) D

0.47(12)

2.36(60)

3.66(93)

30.31(770) W

30.66(779) W3

13.07(322)

0.98(25) B1

3.54(90) B2

2.42(61.5) A2

0.47(12) A1

.24(6)

11.26(286)

Unit: inch(mm)

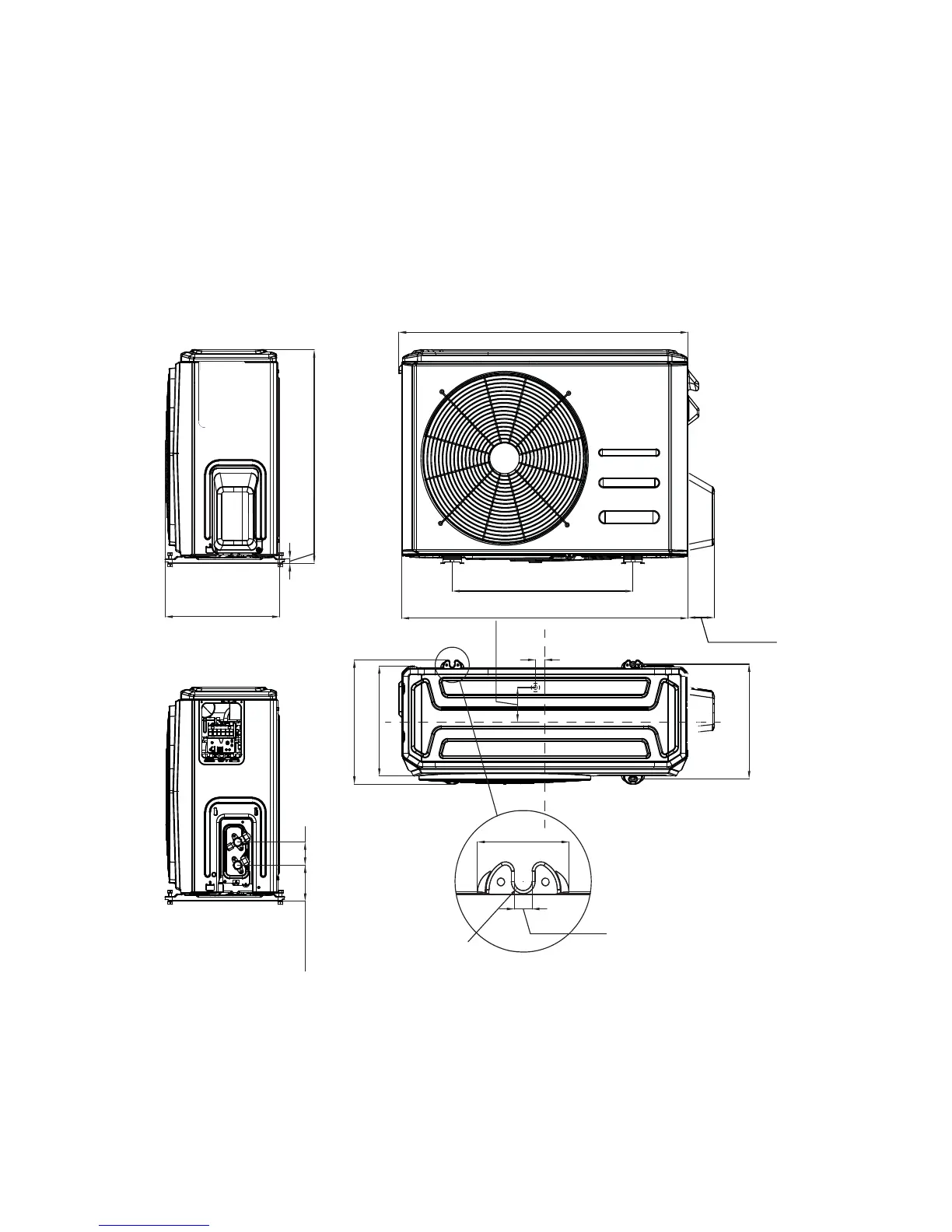

Fig. 1 – Sizes 9K and 12K Heat Pump and Size 18K Cooling Only
