38MURA: Installation Instructions
Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
20
CROSSOVER SOLUTIONS
TESTED AHRI COMBINATION RATINGS
SCENARIO # 1: SINGLE ZONE OUTDOOR UNITS 38MURA WITH APPROVED FURNACES/CASED COILS

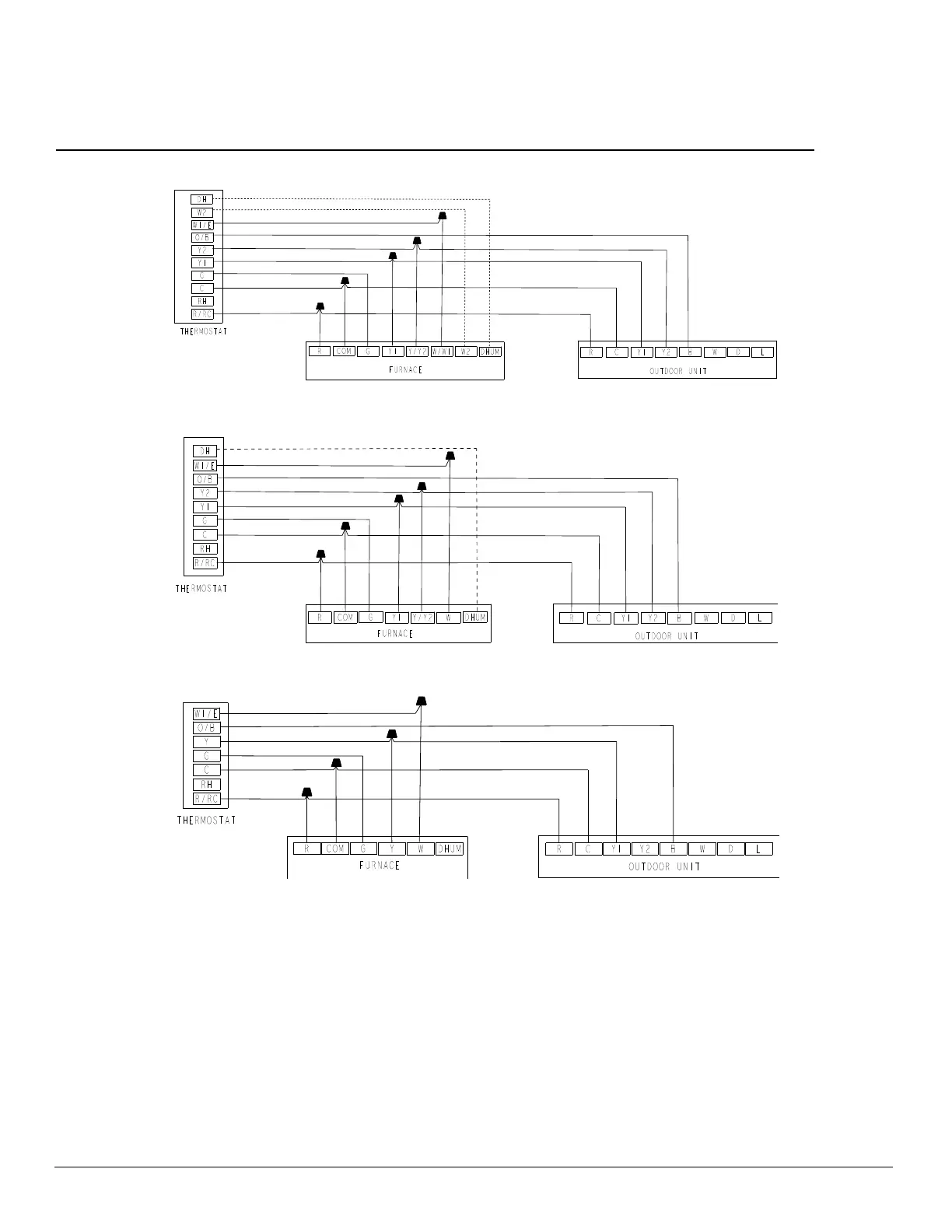

Fig. 35 — Wiring for 4H and 2C Thermostat
Fig. 36 — Wiring for 3H and 2C Thermostat
Fig. 37 — Wiring for 2H and 1C Thermostat
NOTE: If the outdoor condensing unit initiates defrost cycles frequently, then it is recommended to adjust the “thermal balance point” to a
temperature that would decrease the recurrence of these cycles and prevent cold air blowing during the duration of the defrost cycle.
The thermal balance point is the outdoor ambient temperature at which the heat pump can no longer provide sufficient heating to the
space on its own and compromises the reliability of the compressor.
For AHRI ratings certificates, refer to the AHRI directory http://www.ahridirectory.org.
Additional ratings and system combinations can be accessed via the Carrier database at: www.MyCarrierRatings.com.
