REMOVE PANEL
RUN ELECTRICAL HARNESSES UP THE SIDE
OF THE UNIT IN THE SPACE BETWEEN THE
CORNER POST AND THE CONTROL BOX, THEN
ALONGSIDE THE WIRE TRAY. ROUTE
APPROPRIATE WIRES TO MOTORMASTER AND
OFM 3
RUN TRANSDUCER HARNESS FROM CIRCUIT A
TRANSDUCER TO MOTORMASTER ALONG THE LENGTH OF
THE BOTTOM OF THE CONDENSER COIL THEN UP INTO
MOTORMASTER. RUN THE WIRES ALONG THE OUTSIDE
OF THE COIL TRAY.

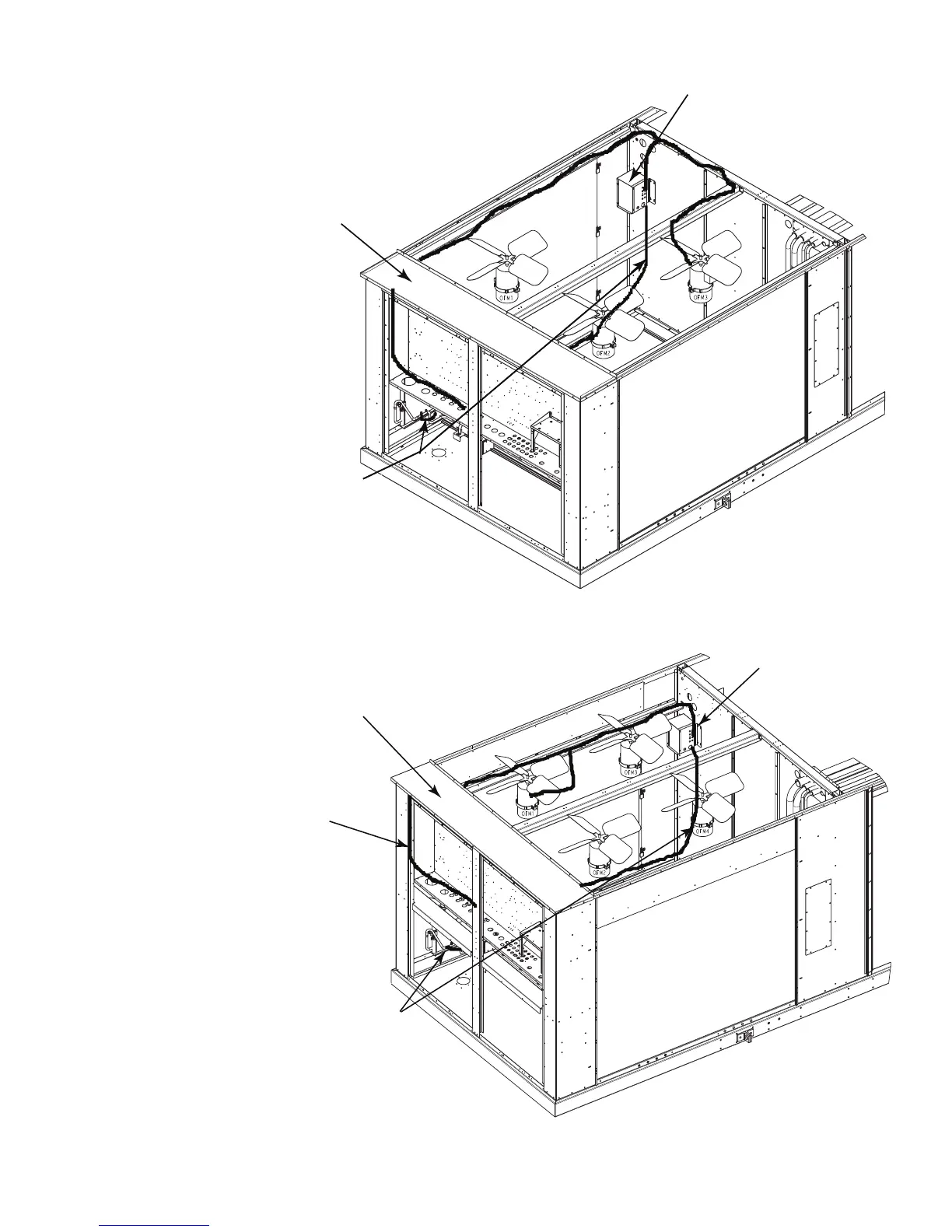

Fig. 5 — MMV Control Mounting — 48/50P040 Units
a48-8563
RUN ELECTRICAL HARNESSES UP THE SIDE OF THE
UNIT IN THE SPACE BETWEEN THE CORNER POST
AND THE CONTROL BOX, THEN ALONGSIDE THE WIRE
TRAY. ROUTE APPROPRIATE WIRES TO
MOTORMASTER AND OFM 1
REMOVE PANEL
RUN TRANSDUCER HARNESS FROM CIRCUIT A
TRANSDUCER TO MOTORMASTER ALONG THE
LENGTH OF THE BOTTOM OF THE CONDENSER COIL
THEN UP INTO MOTORMASTER. RUN THE WIRES
ALONG THE OUTSIDE OF THE COIL TRAY.
Fig. 6 — MMV Control Mounting — 48/50P050-060 Units
a48-8564
