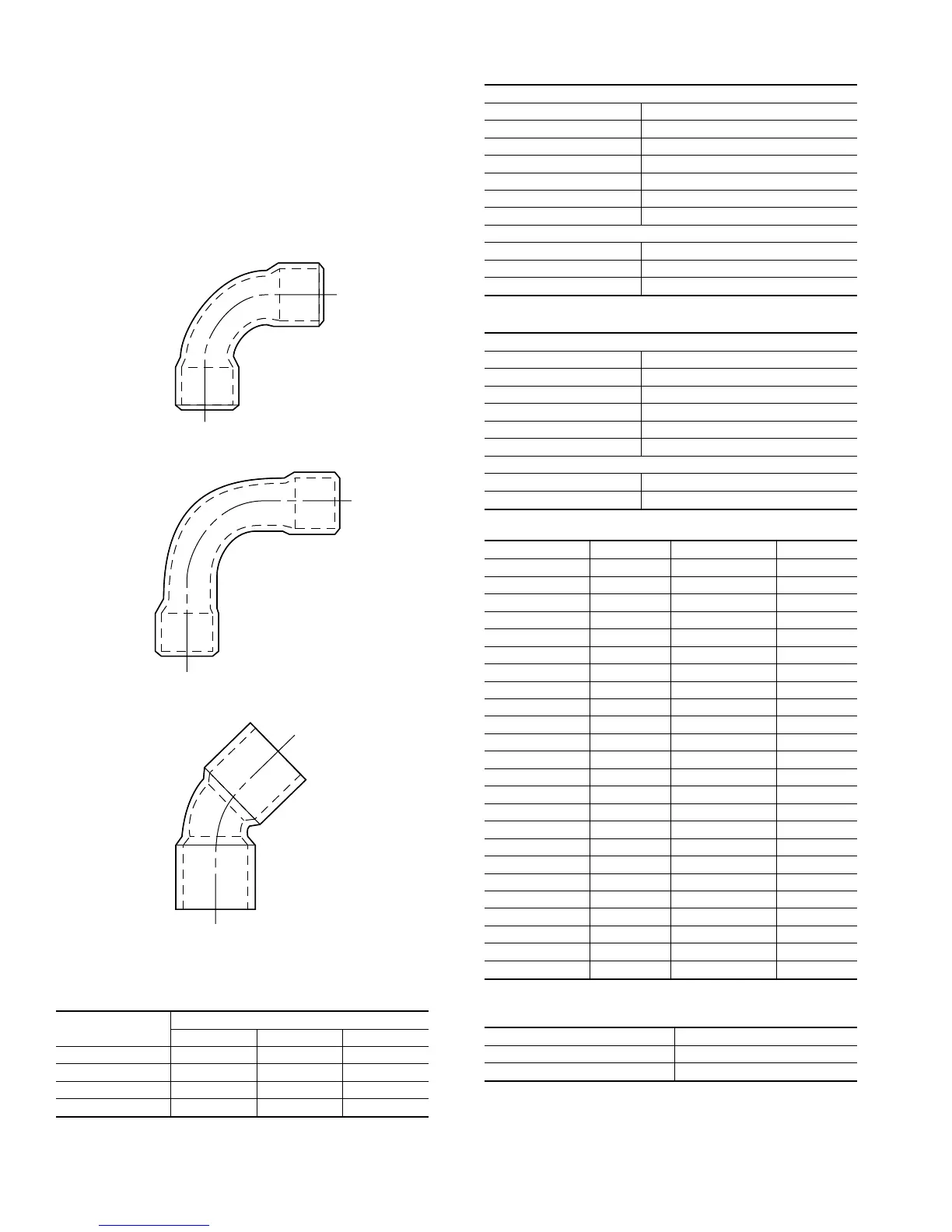

Fig. 3—Tube Bend Losses
Table 6—Fitting Losses in Equivalent Ft
TUBE SIZE OD
(IN.)
REFERENCE DIAGRAM IN FIG. 1
ABC
5/8 1.6 1.0 0.8
3/4 1.8 1.2 0.9
7/8 2.0 1.4 1.0
1-1/8 2.6 1.7 1.3
A92498
90° LONG RAD
B
90° STD
A
45° STD
C
Table 7—Calculation of Indoor Piston No.
OUTDOOR UNIT ABOVE INDOOR
FT PISTON CHANGE
0-25 0
26-50 -3
51-75 -5
76-100 -7
101-125 -9
126-150 -10
OUTDOOR UNIT BELOW INDOOR
FT PISTON CHANGE
0-25 0
26-50 +4
Table 8—Calculation of Outdoor Piston No.
OUTDOOR UNIT ABOVE INDOOR
FT PISTON CHANGE
0-50 0
51-75 +4
76-100 +6
101-125 +8
126-150 +10
OUTDOOR UNIT BELOW INDOOR
FT PISTON CHANGE
0-50 0
Table 9—Common Piston Sizes
ACCURATER™ CHATLEFF ACCURATER™ CHATLEFF
— 32 65 65
— 33 67 67
35 35 — 68
— 36 70 70
— 37 — 71
38 38 73 73
— 39 — 74
40 40 76 76
— 41 78 78
42 42 80 80
— 43 — 81
— 45 82 82
46 — 84 84
— 47 86 86
49 49 88 88
51 51 — 89
52 52 90 90
— 53 — 92
55 55 93 93
57 57 96 96
59 59 98 98
61 61 101 101
— 62 104 104
63 63 109 —
Table 10—Liquid-Line Solenoid Kit Part Numbers
TYPE OF VALVE PART NO.
Single Flow KAALS0101LLS
Bi-Flow KHALS0101LLS
8
