Cascade 50D User Manual

3
669224-R5
NSTALLATION
I
2.2 Recommended
Hydraulic Supply
D-Series Clamps provide the best performance with one
of the hydraulic supply arrangements shown below. Refer
to Cascade Hose & Cable Reel Selection Guide, Part No.
212199, to select the correct hose reel for the mast and
truck. The hose and fitting requirements are:
• All hoses and fittings for CLAMP function should be
at least No. 8, minimum internal diameter of 13/32 in.
(10 mm).
• All hoses and fittings for SIDESHIFT function should
be at least No. 6, minimum internal diameter of 9/32 in.
(7 mm).
Non-Sideshifting
A or B
RH or LH THINLINE
TM
2-port hose reel group
OR
C Mast single internal hose reeving group
Sideshifting
A and B
RH or LH THINLINE
TM
2-port hose reel group
OR
C Mast double internal hose reeving group
Sideshifting with Solenoid
A 6-N-1 cable/hose reel group
OR
A and C
Cable reel and single internal hose reeving group

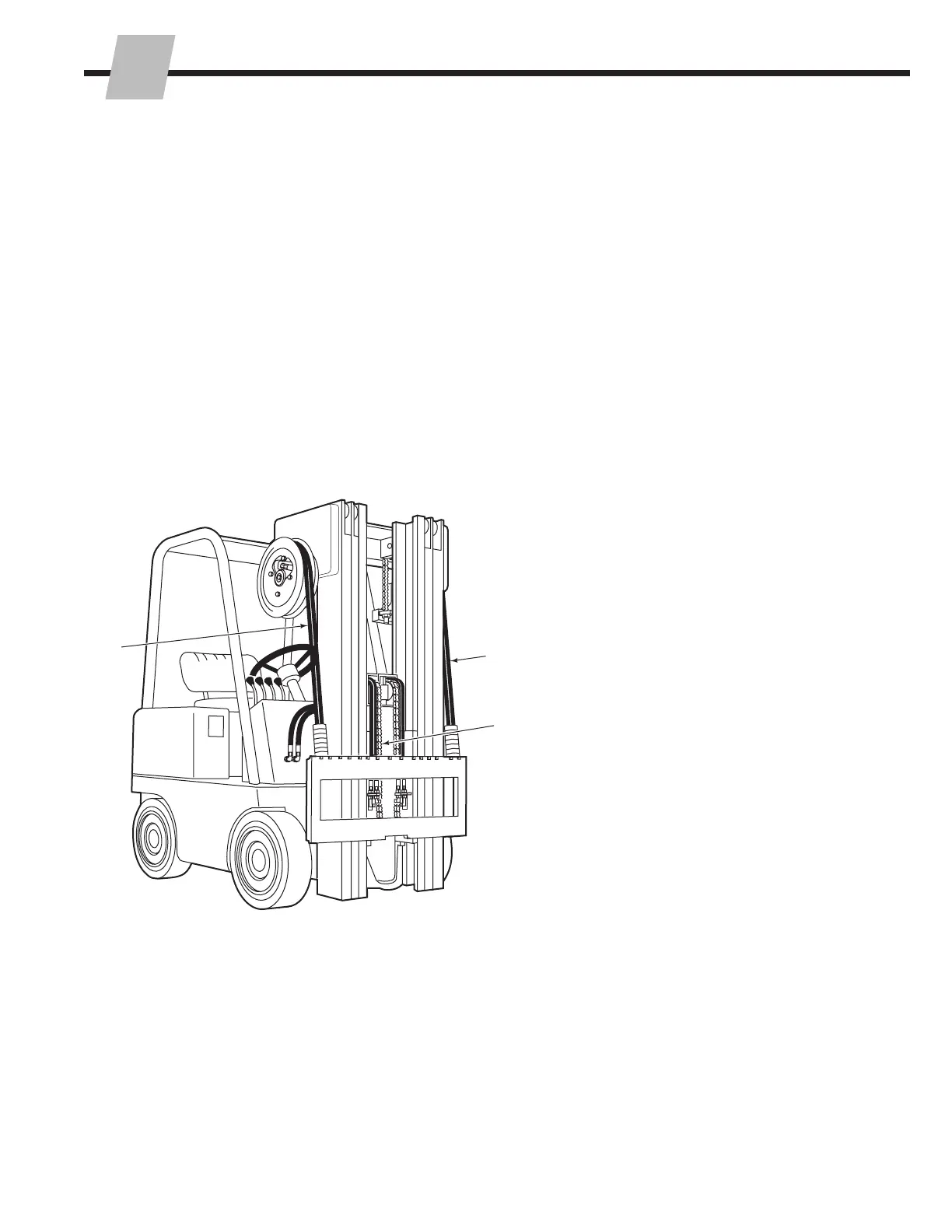

GA0033.eps
A
B
C
