– 13 –

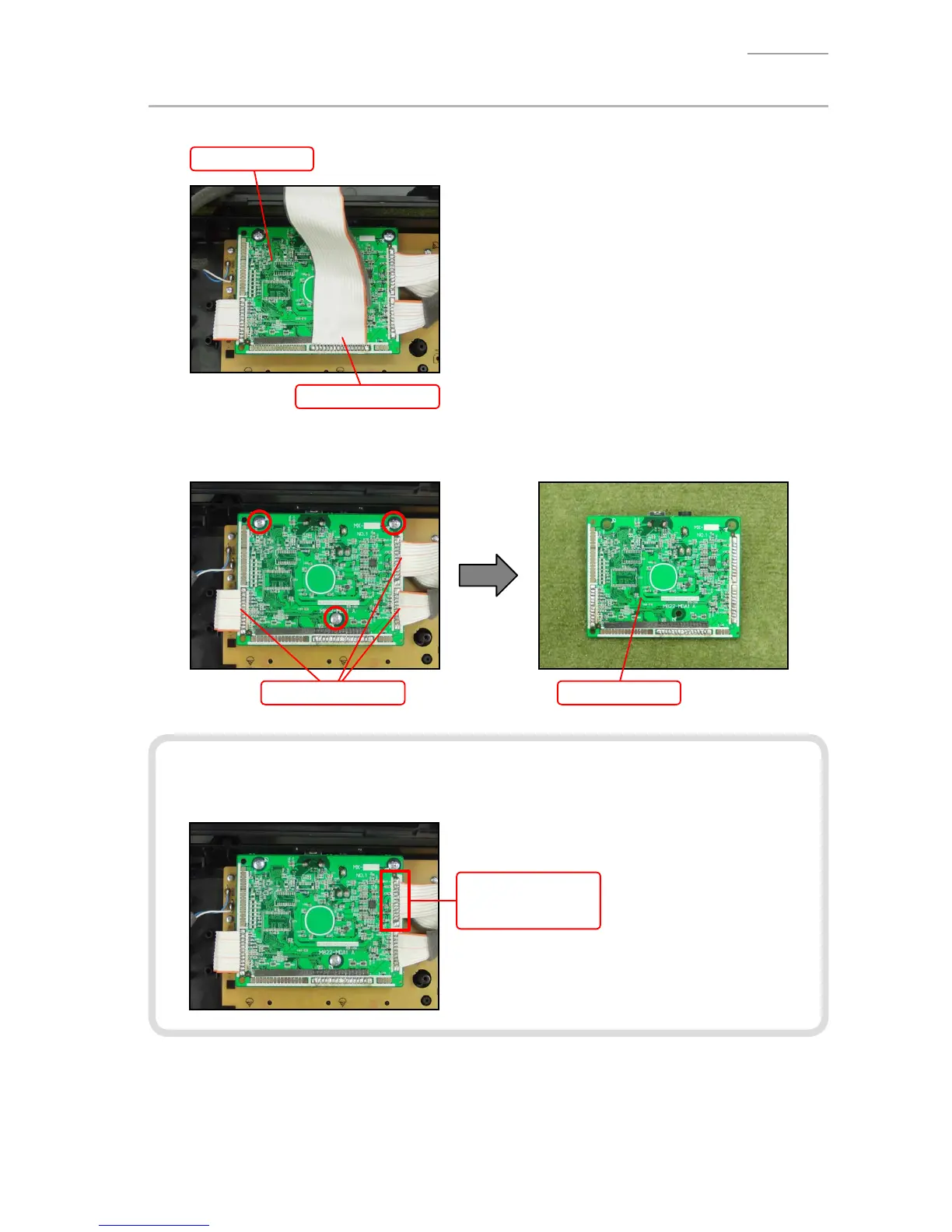

B. REMOVE THE M822-MDA1 PCB (MAIN PCB)
B-1. Unsolder one FFC.
FFC (M800-KYA2)
M822-MDA1 PCB
B-2. Unsolder three FFCs.
B-3. Undo three screws and then remove the M822-MDA1 PCB.
FFC (M822-PSA1) M822-MDA1 PCB
<Notes On Assembly>
• The number of pins on the PCB pad differs from that on the cable. Solder in the way that No.1
pin on the cable (orange) is connected to No.1 pad on the PCB.
FFC (M822-PSA1)
PCB: 12 pads
Cable: 11 pins

Casio CTK-2200 Specifications

General

Keyboard number of keys	61
MIDI-keyboard number of keys	- keys
Product color	Black, Grey
Maximum polyphony (notes)	48
Music memory capacity (songs)	110
Interface	USB
Power requirements	9V
Power source type	AC

Weight and Dimensions

Depth	307 mm
Width	946 mm
Height	92 mm
Weight	3400 g
