Casio CTK-2200 User Manual

CTK-2200
– 22 –

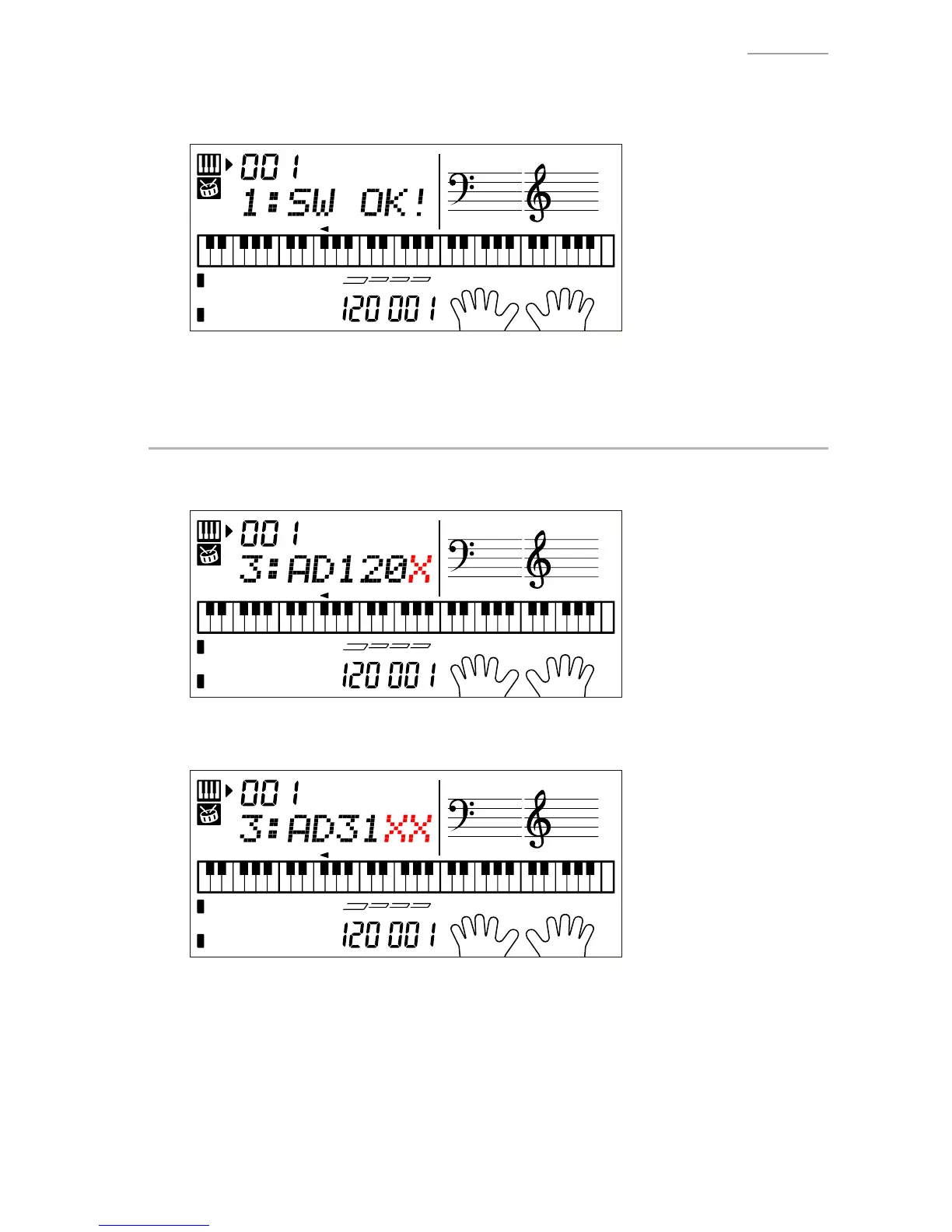

A-3. When the “3” button is pressed at the end, a conrmation chord sounds and “SW OK!” is displayed
on the LCD.
A-4. Check to see if the LCD is as shown below.
A-5. Press the “0” button to return to the main screen.
B. AC ADAPTOR CHECK
B-1. Press the “3” button to select the “AC ADAPTOR CHECK”.
B-2. Make sure that a value “X” shown in the illustration is in the range of 1 to 3.
B-3. Press the “3” button again.
B-4. Make sure that a value “XX” shown in the illustration is in the range of 00 to FF.
B-5. Press the “0” button to return to the main screen.

Casio CTK-2200 Specifications

General

Keyboard number of keys	61
MIDI-keyboard number of keys	- keys
Product color	Black, Grey
Maximum polyphony (notes)	48
Music memory capacity (songs)	110
Interface	USB
Power requirements	9V
Power source type	AC

Weight and Dimensions

Depth	307 mm
Width	946 mm
Height	92 mm
Weight	3400 g
