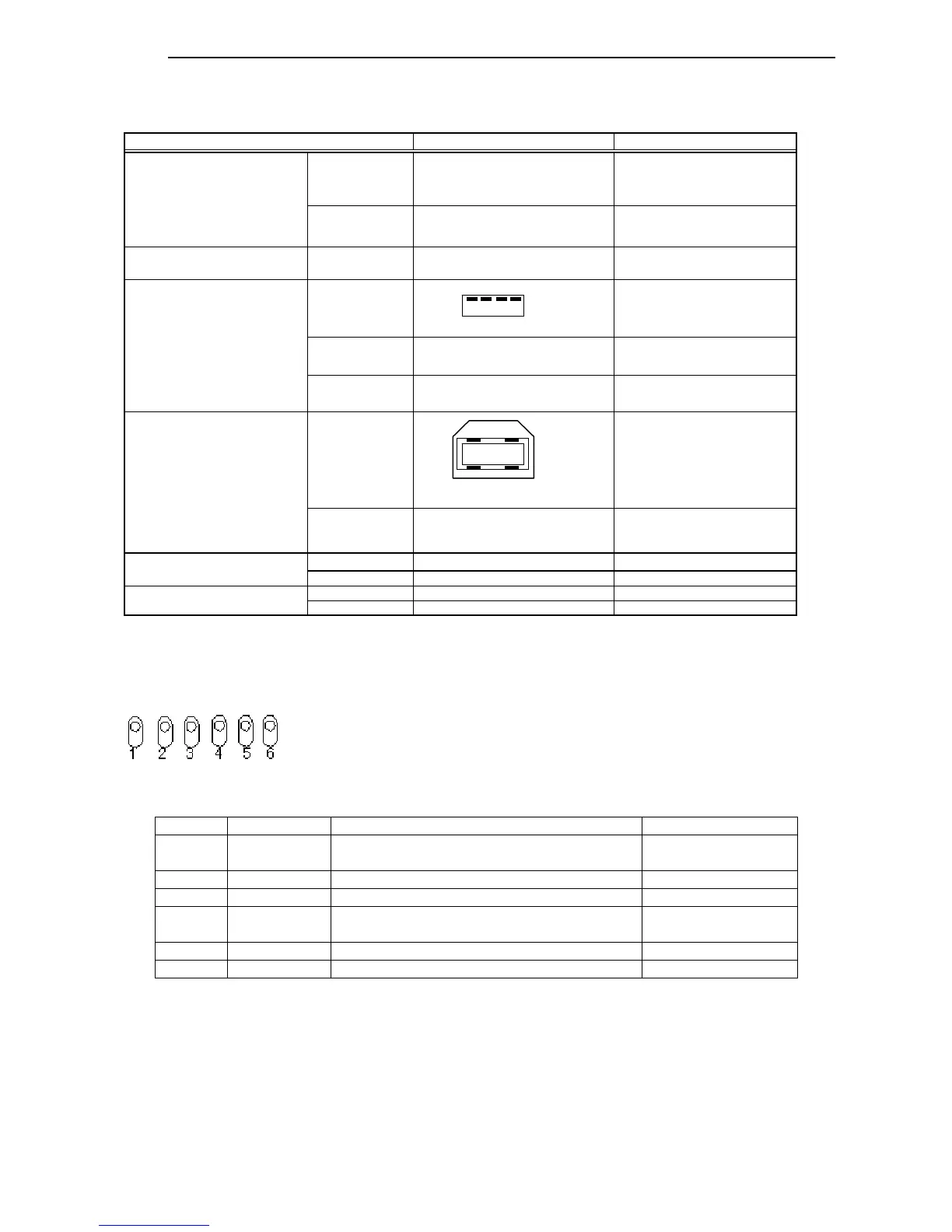

DT-X200 Hardware Manual P.18
3.1.2. Ethernet Cradle/ USB Cradle
Specification Remark
Interface to DT-X200 Type Contact Connector
Communicate and power supply
to DT-X200
Refer ＊１
Baud rate Full speed (12Mbps)
Protocol IEEE 802.3 Standard
Connector
USB connector A type
1 VBus
2 USB D-
3 USB D+
4 GND
Baud rate Full speed (12Mbps) Low speed not supported
Power to external
device
5V±5%, 500 mA (maximum)
USB Client Connector
USB connector B type
1 VBus
2 USB D-
3 USB D+
4 GND
Baud rate Full speed (12Mbps) Low speed not supported
Input voltage DC 12V±5％
Adaptor AD-S42120C
Input voltage DC 5V±5％
Adaptor AD-S15050B
Input from AC Adaptor
(USB Cradle)
Item
Input from AC Adaptor
(Ethernet Cradle)
USB Host
LAN
(Only Ethernet Cradle)
4
1
3
2
1 234
＊1
Pin Layout
The pin layout below shows when the cradle is viewed at its front.
Pin Layout and the description
Pin no. Signal Description Direction
1 V CRADLE Power supply to the terminal and charge to
battery pack installed in the terminal.
-
2 D + USB D + IN/OUT
3 D - USB D - IN/OUT
4 USB_ID Switch-over between USB host and USB
client
OUT (Note 1)
5 V BUS Power from/to USB cradle -
6 GND GND -
Notes:
1. The output is made from the cradle. The direction “OUT” is for USB mode, or “IN” for LAN mode.
CAS
IO COMPUTER CO., LTD.
