DT-X200 Hardware Manual P.23

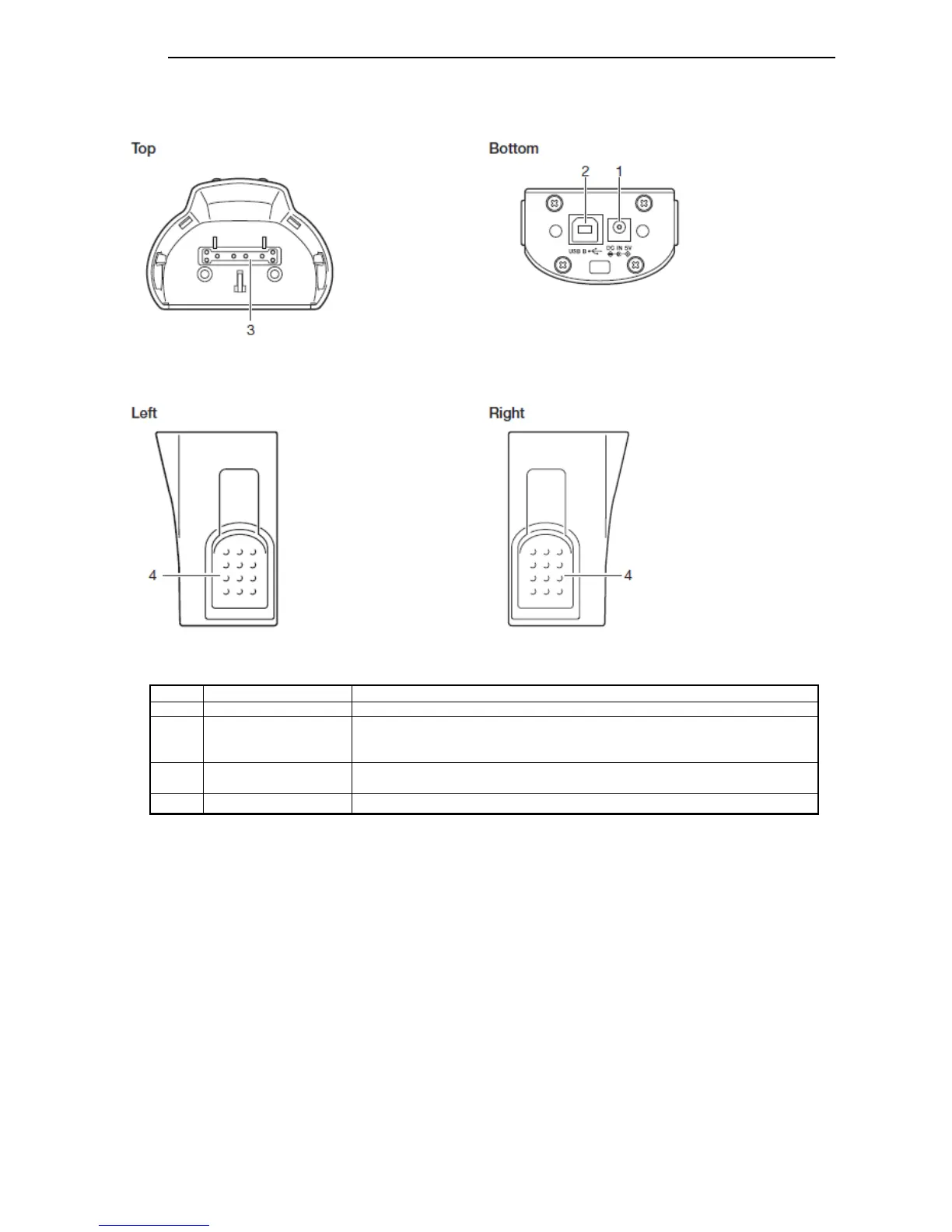

3.2.3. USB and Charging Unit
No. Name Description
1 AC Adaptor Jack Connect the dedicated AC adaptor, AD-S15050B, here.
2 USB Client Port This port is used to transmit data (download, upload) by connecting the
Ethernet Cradle to PC using USB cable (DT-380USB-A). The dedicated
driver must be installed in the PC before connecting the cradle to the PC.
3 Power/Signal Terminal Used for USB communication or to supply power to the terminal and to
charge the battery pack via Cradle.
4 Stoppers Used to fix the terminal in this unit.
