Casio Exilim EX-S5 User Manual

73
Viewing Snapshots and Movies
1. Use the AV cable that comes with the camera to connect it to the TV.
• Make sure that you insert the cable connector into the
USB/AV port until you feel it click securely into place.
Failure to insert the connector fully can result in poor
communication or malfunction.
• Note that even while the connector is fully inserted,
you still will be able to see the metal part of the
connector as shown in the illustration.
2. Turn on the TV and select its video input mode.
If the TV has more than one video input, select the one where the camera is
connected.
3. Press [p] (PLAY) to turn on the camera.
This will cause an image to appear on the TV screen, without anything appearing
on the camera’s monitor screen.
• Pressing [ON/OFF] or [r] (REC) will not turn on the camera while the AV
cable is connected.
• You also can change the aspect ratio of the screen and the video output
system (page 116).

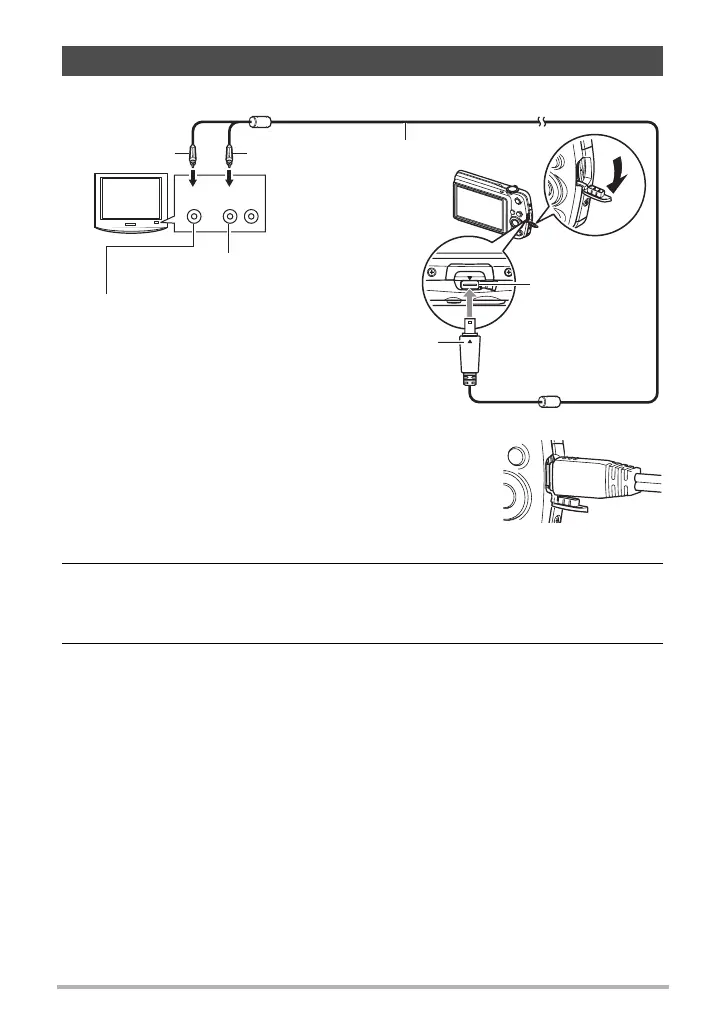

Viewing Snapshots and Movies on a TV Screen
TV
Yellow
AV cable (bundled)
USB/AV port
White
Making sure that the 2 mark on the camera is
aligned with the 8 mark of the AV cable
connector, connect the cable to the camera.
AudioVideo
VIDEO IN jack (yellow)
AUDIO IN jacks (white)

Casio Exilim EX-S5 Specifications

General

Megapixel	10.1 MP
Camera type	Compact camera
Sensor type	CCD
Image stabilizer	Yes
Image sensor size	1/2.3 \
Maximum image resolution	3648 x 2736 pixels
Digital zoom	4 x
Optical zoom	3 x
Combined zoom	12 x
Focal length range	6.3 - 18.9 mm
Interface	USB, AV
Digital SLR	No
Camera shutter speed	1/2 - 1/2000 s
Focal length (35mm film equivalent)	35.5 - 106.5 mm
Light metering	Centre-weighted, Spot
ISO sensitivity	64, 100, 200, 400, 800, 1600
Light exposure modes	Auto
Internal memory	3 MB
Compatible memory cards	sd, sdhc
Motion JPEG frame rate	30 fps
Video formats supported	Avi, M-JPEG
Maximum video resolution	848 x 480 pixels
Audio system	Mono
Display diagonal	2.7 \
Display resolution (numeric)	479 pixels
USB version	2.0
White balance	auto, Cloudy, daylight, manual, Shade, Tungsten
Camera playback	Single image
Self-timer delay	2, 2+10, 10 s
Product color	Silver
Battery type	NP-80
Number of batteries supported	1
Cables included	AV, USB
Auto focusing (AF) modes	monitoring auto focus, multi point auto focus, spot auto focus
Flash modes	auto, fill-in, Flash off, Red-eye reduction
Camera shutter type	electronic, mechanical

Weight and Dimensions

Depth	56.5 mm
Width	96.8 mm
Height	17.8 mm
Weight	100 g
