Casio EXILIM EX-Z550 User Manual

90
Viewing Snapshots and Movies
1. Use the AV cable that comes with the camera to connect it to the TV.
• Make sure that you insert the cable connector into the
USB/AV port until you feel it click securely into place.
Failure to insert the connector fully can result in poor
communication or malfunction.
• Note that even while the connector is fully inserted, you
still will be able to see the metal part of the connector as shown in the
illustration.
2. Turn on the TV and select its video input mode.
If the TV has more than one video input, select the one where the camera is
connected.
3. Press [p] (PLAY) to turn on the camera.
This will cause an image to appear on the TV screen, without anything appearing
on the camera’s monitor screen.
• Pressing [ON/OFF] or [r] (REC) will not turn on the camera while the AV
cable is connected.
• You also can change the aspect ratio of the screen and the video output
system (page 148).

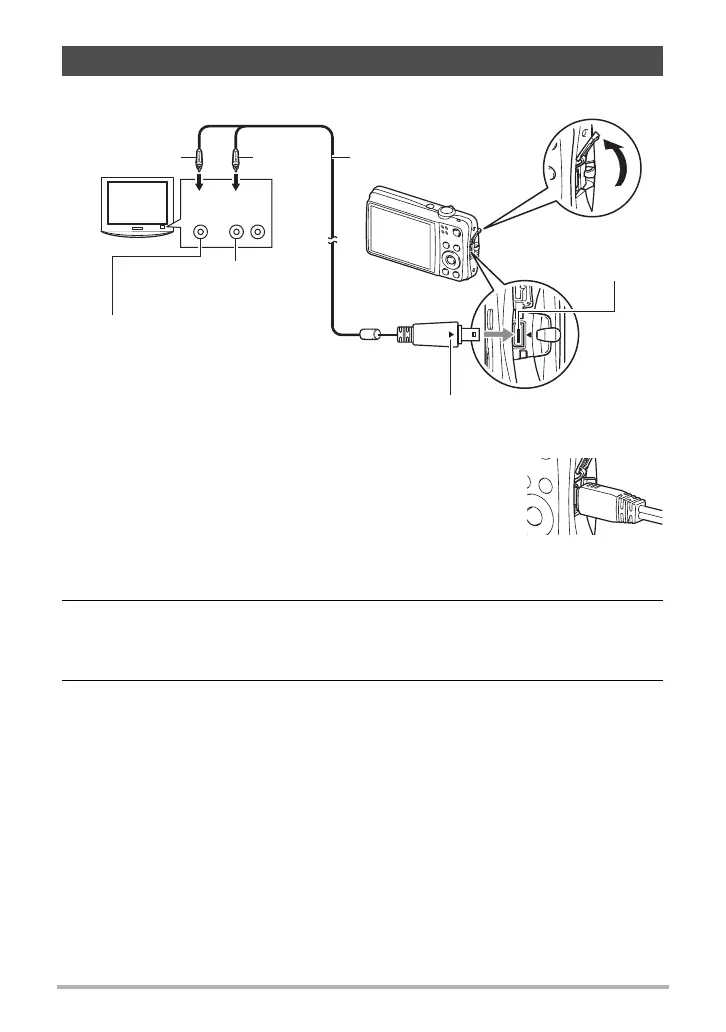

Viewing Snapshots and Movies on a TV Screen
Yellow
AV cable (bundled)
USB/AV port
White
Making sure that the 4 mark on the camera is aligned with the 6 mark of the AV
cable connector, connect the cable to the camera.
AudioVideo
VIDEO IN jack (yellow)
AUDIO IN jacks (white)
TV

Casio EXILIM EX-Z550 Specifications

General

Megapixel	14.1 MP
Camera type	Compact camera
Sensor type	CCD
Image stabilizer	Yes
Image sensor size	1/2.3 \
Maximum image resolution	4320 x 3240 pixels
Digital zoom	4 x
Combined zoom	16 x
Lens structure (elements/groups)	7/6
Interface	USB/AV
Digital SLR	No
Camera shutter speed	1/2 - 1/2000 s
Focal length (35mm film equivalent)	26 - 104 mm
Auto focusing (AF) modes	multi point auto focus, spot auto focus
Macro focusing range (wide)	0.05 - 0.50 m
Manual focusing range (wide)	0.15 - ∞ m
Auto Mode focusing range (wide)	0.12 - ∞ m
Light metering	Centre-weighted, Spot
ISO sensitivity	64, 100, 200, 400, 800, 1600, 3200, Auto
Light exposure control	Program AE
Flash modes	auto, Flash off, Red-eye reduction
Flash range (tele)	0.6 - 2.5 m
Flash range (wide)	0.15 - 5.8 m
Motion JPEG frame rate	24 fps
Video formats supported	AVI
Maximum video resolution	1280 x 720 pixels
Display diagonal	2.7 \
Display resolution (numeric)	230400 pixels
USB version	2.0
Product color	Red
White balance	auto, daylight, manual, Shade, Tungsten
Battery type	NP-80
Number of batteries supported	1
Cables included	AV, USB
Compatible memory cards	microdrive, sd, sdhc
Camera shutter type	electronic, mechanical

Weight and Dimensions

Depth	22.4 mm
Width	99.5 mm
Height	55.4 mm
Weight	137 g
