6. OPTION INSTALLATION

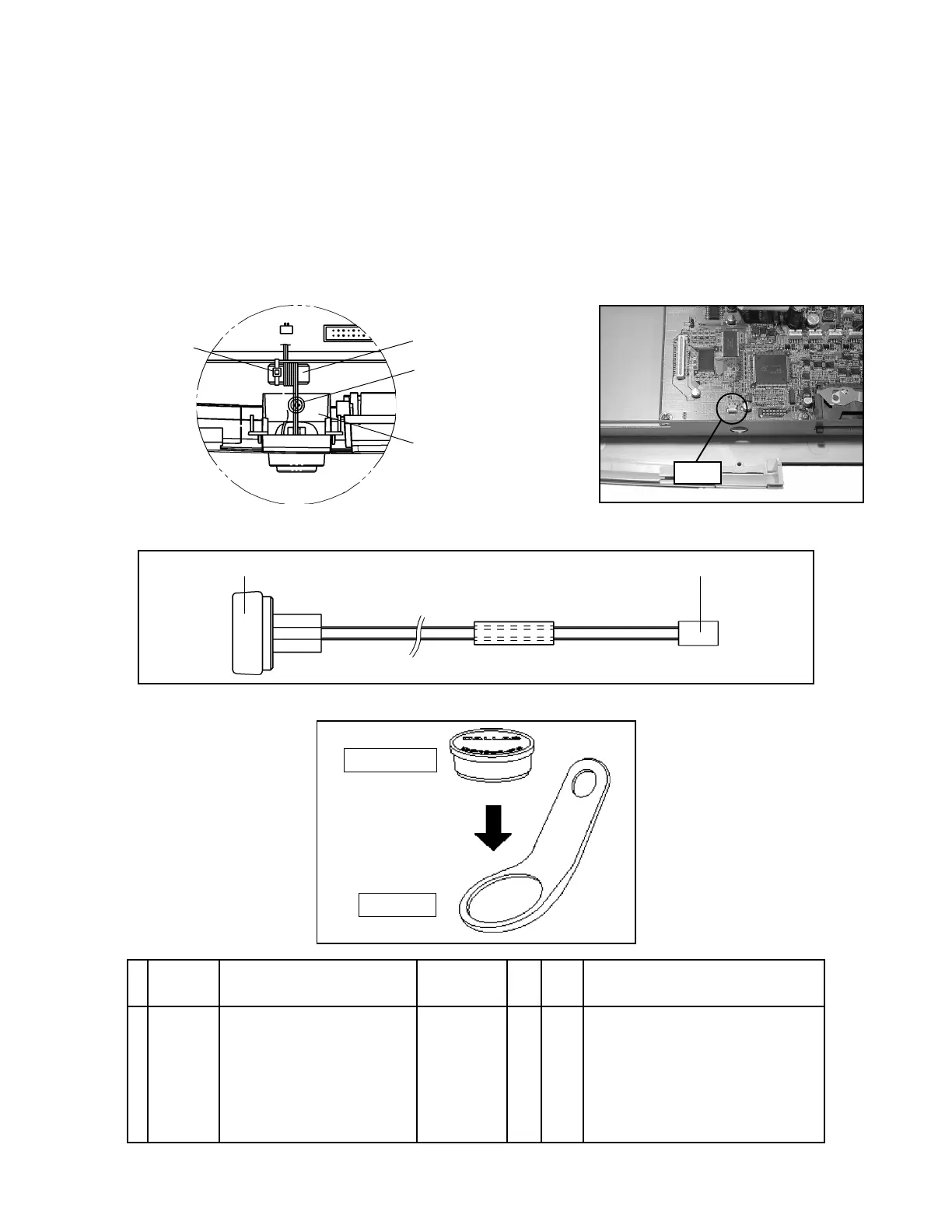

6-1. Dallas Key (Clerk key kit CLK-K22)
1. Remove the upper cover as shown in steps 1 to 3 of page 9.
2. Fix the Dallas Cable Assy to the Dallas cover.
3. Fix the Dallas cover to the lower case by screw.
4. Let the Dallas cable through the unit and connect it to the MAIN PCB (CN25).
Note : Wind the cable through the Ferrite core two and a half times.
5. Fix the Ferrite core to the chassis by insulock tie.
6. Fix the UPPER COVER.
CN25
Ferrite core
Screw
Dallas cover
Insulock tie
N Code No. Parts Name Specification Q'ty Price Note
Code
N 1010 4433 COVER/DALLAS E468 RJE500428-1 1
1008 6507 DALLAS CABLE ASSY E441328*1 1 CD Clerk key kit (CLK-K22)
1007 3068 DAS-02 CABLE SUB ASSY E441319-1 1 AB Wire with connector( t = 40mm )
1007 3671 CORE/FERRITE TR-20-10-10 1 AD Clerk key kit (CLK-K22)
1007 9263 DALLAS KEY ASSY/6PCS RJE500025*1 1 DA Clerk key kit (CLK-K22)
1007 3701 iBUTTON/CLERK DS1982-F5 1 BF
1007 3665 iBUTTON MOUNT PROD/CLERK DS9093N 1 AO
This part is attached in the carton box of
TE-7000S/8000F/8500F.
iButton probe (DS9092)
Das 02 Sub Assy
Dallas Cable Assy
DS1982-F5
DS9093N
Dallas key Assy
To Next Page
