7. IN LINE
■ There are two types for IN LINE; CATEGORY5A and ARCNET.
Note: When the cluster has more than 8 TE-7000S/8000F/8500F terminals, all printer should be local
printer. When the cluster has less than or equal to 8 TE-7000S/8000F/8500F terminals, remote
printer is allowable.
7-1. ARCNET(INLINE1)

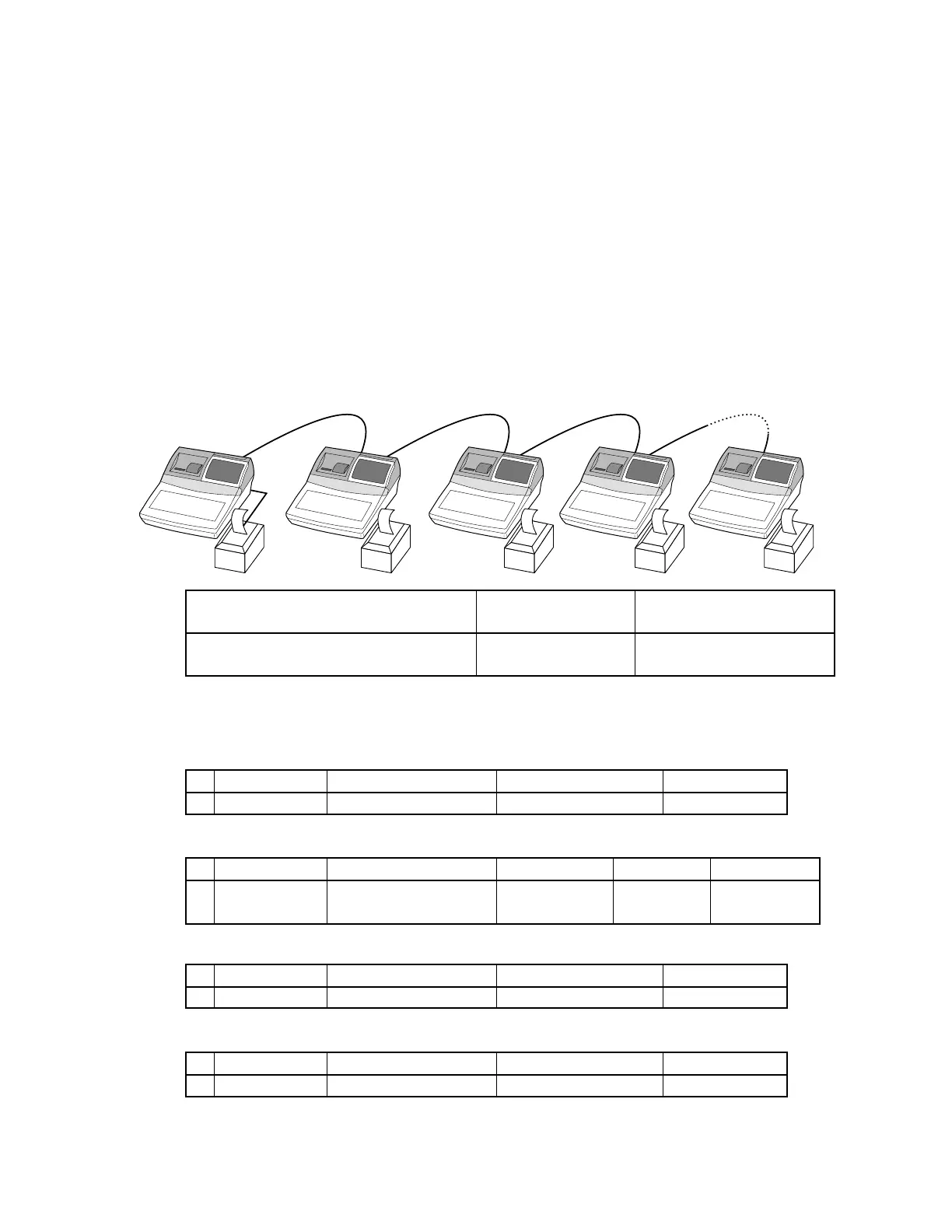

1 ARCNET connection diagram
The maximum ARCNET cable length and the maximum connection unit will be varied by the in-line
communication speed as shown below list.
[ARCNET cable wiring]
Total Length : A
In-line
R/J R/JR/JR/JR/J
2 In line cable, Connector, Terminater and Earth plate
The following parts are packaged in the ECR.
ARCNET cable
N Code No. Parts name Specification Price code
1904 4023 In-line cable IPEV-SLA0.5x1P AN
Terminater
N Code No. Parts name Specification Price code
N 10054255 Resistor RD14J101T26
Earth plate
Code No. Parts name Specification Price code
62477372 Plate/Earth E440398-1 AB
ARCNET connector(ECR side)
N Code No. Parts name Specification Price code Note
3540 3924 In-line connector kit XLP-KIT-2 AK
Connector×1
cap×2
ARCNET communication speed Maximum Maximum
(Baud rate) connection unit cable length A (m)
312.5 K bps 20 430
156.25 K bps 32 890
To Next Page
