— 39 —
Using Com1 port
Slip
RS-232C
KP/M
CHK/BM CHK/M KP/BM
PC
Slip Slip
R/J
8. ON LINE
Only the RS-232C Com1 port can be connected with a modem or perssonal computer.
Note: When the cluster has more than 8 register terminals, all printer should be local printer. When the cluster
has less than or equal to 8 register terminals, remote printer is allowable.

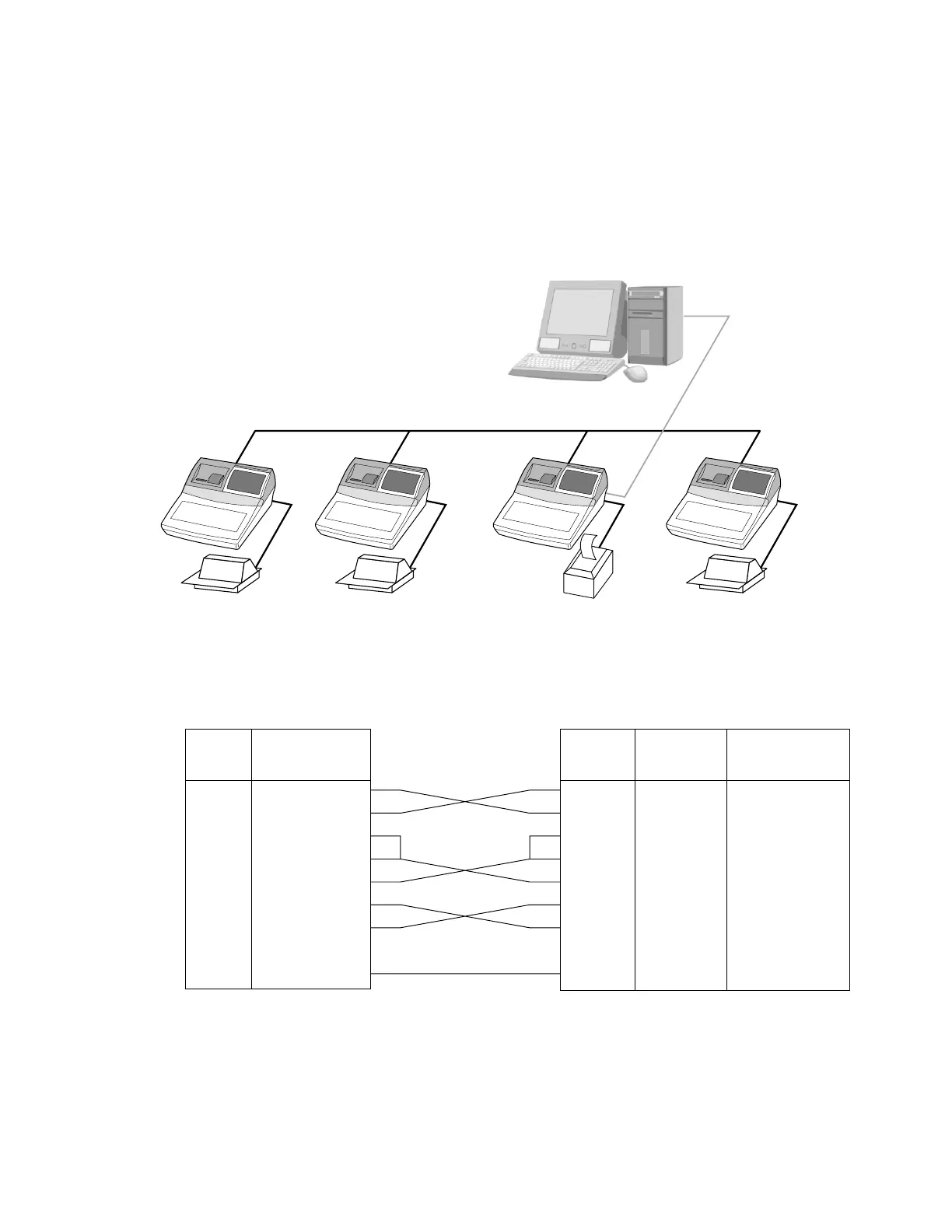

8-1. Direct connection to PC
1 Connection layout
2 PC Cable wiring
Pin No. Signal name
3 SD/TXD
2 RD/RXD
7 RS/RTS
8 CS/CTS
1 CD/DCD
4 ER/DTR
6 DR/DSR
9 CI/RI
5 GND
TE-7000S/8000F/8500F (Com1)
Pin No. Pin No. Signal name
(DSUB9) (DSUB25)
32SD
23RD
74RS
85CS
18CD
420ER
66DR
- 22 CI
5 7 GND
PC
