Casio XJ-A256 User Manual

13
The projector is able to project images from the composite video output or component video output of
a connected video device.
Important!
Always turn off the projector and the video device before connecting them.
Connection to a composite video output
z You can use the bundled special AV cable to connect to a pin jack (RCA) type video output terminal.
When connecting a video camera or other video device with a special video output terminal, use the
special cable that comes with the video device. For details, see the documentation that comes with
the video device.
Connection to a component video output
z Component video output terminals come in 3-terminal sets: Y·Cb·Cr or Y·Pb·Pr. Be sure to match
the colors of the plugs on a component video cable with the colors of the terminals (Green: Y;
Blue: Cb/Pb; Red: Cr/Pr).
z Note that connection only to an analog component video output terminal is supported.
Connection to a digital output terminal is not supported.

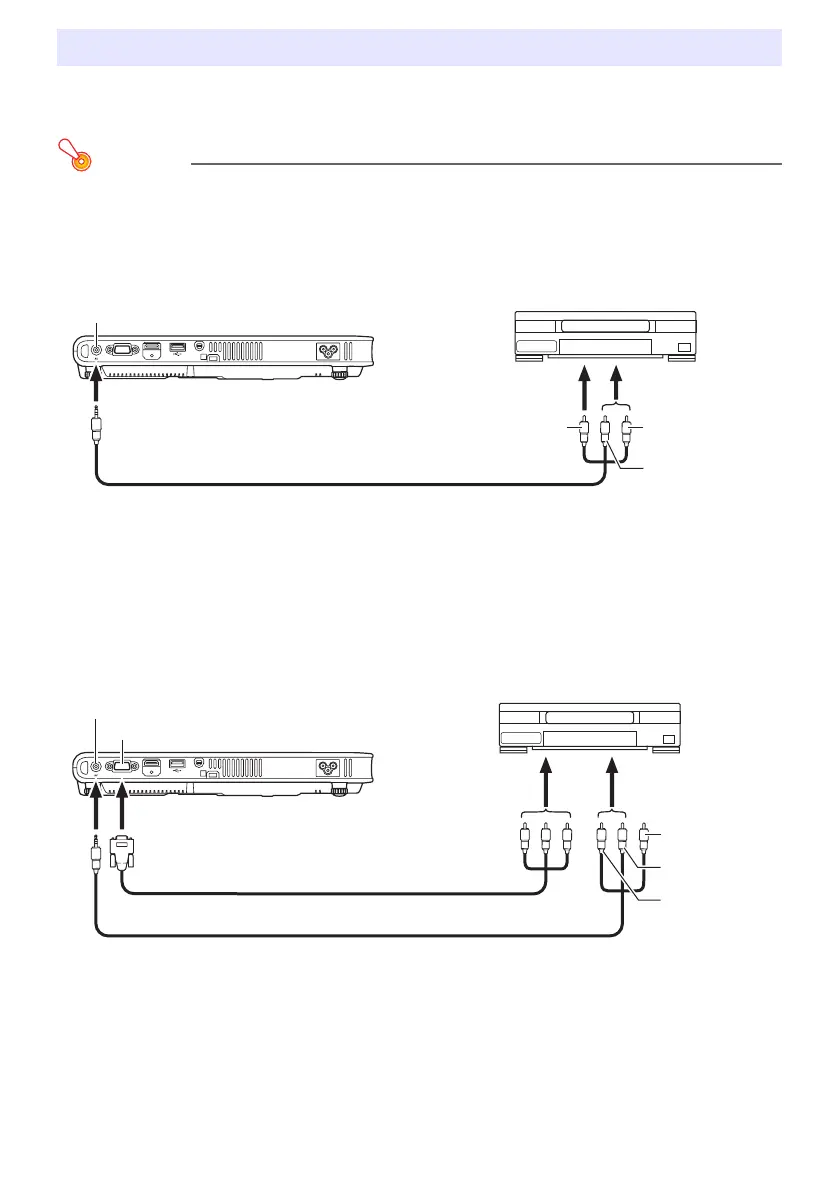

Connecting to a Video Device
Video device
Bundled special AV cable
Projector
Yellow Red
To video output
terminal
To audio output
terminals
White
AV terminal
Projector
COMPUTER terminal
AV terminal
Bundled special AV cable
Component video cable (commercially available)
To component video
output terminals
To audio output
terminals
Video device
Yellow
(Not connected)
Red
White

Casio XJ-A256 Specifications

General

Matrix size	0.65 \
Number of colors	16.78 million colors
Projection distance	- m
Projection technology	DLP
Contrast ratio (typical)	2000:1
Screen size compatibility	18 - 300 \
Projector native resolution	WXGA (1280x800)
Keystone correction, vertical	±30 °
Aspect ratio	16:10
RS-232 ports	1
Offset	84 %
Throw ratio	1.15 - 2.3:1
Optical zoom	2 x
Zoom capability	Yes
Focal length range	- mm
Service life of light source	20000 h
Full HD	No
Supported video modes	1080i, 1080p, 480i, 480p, 576i, 576p, 720p
Analog signal format system	NTSC, PAL 60, PAL M, PAL N, SECAM
Supported graphics resolutions	1280 x 800 (WXGA)
RMS rated power	1 W
USB connector type	USB Type-A
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
S-Video inputs quantity	0
Wi-Fi standards	802.11b, 802.11g
Noise level	35 dB
Noise level (economic mode)	29 dB
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), DEU, ENG, ESP, ITA, JPN, KOR, SWE
Placement	Desktop, Ceiling
Product type	Standard throw projector
Product color	White
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	110 W
Power consumption (typical)	210 W
Power consumption (PowerSave)	0.4 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Cables included	AC, Composite, VGA

Weight and Dimensions

Depth	210 mm
Width	297 mm
Height	43 mm
Weight	2300 g
