Challenger MT865C User Manual

79033095 C Rev. 02-5
Engine Component
Serpentine Belt Installation

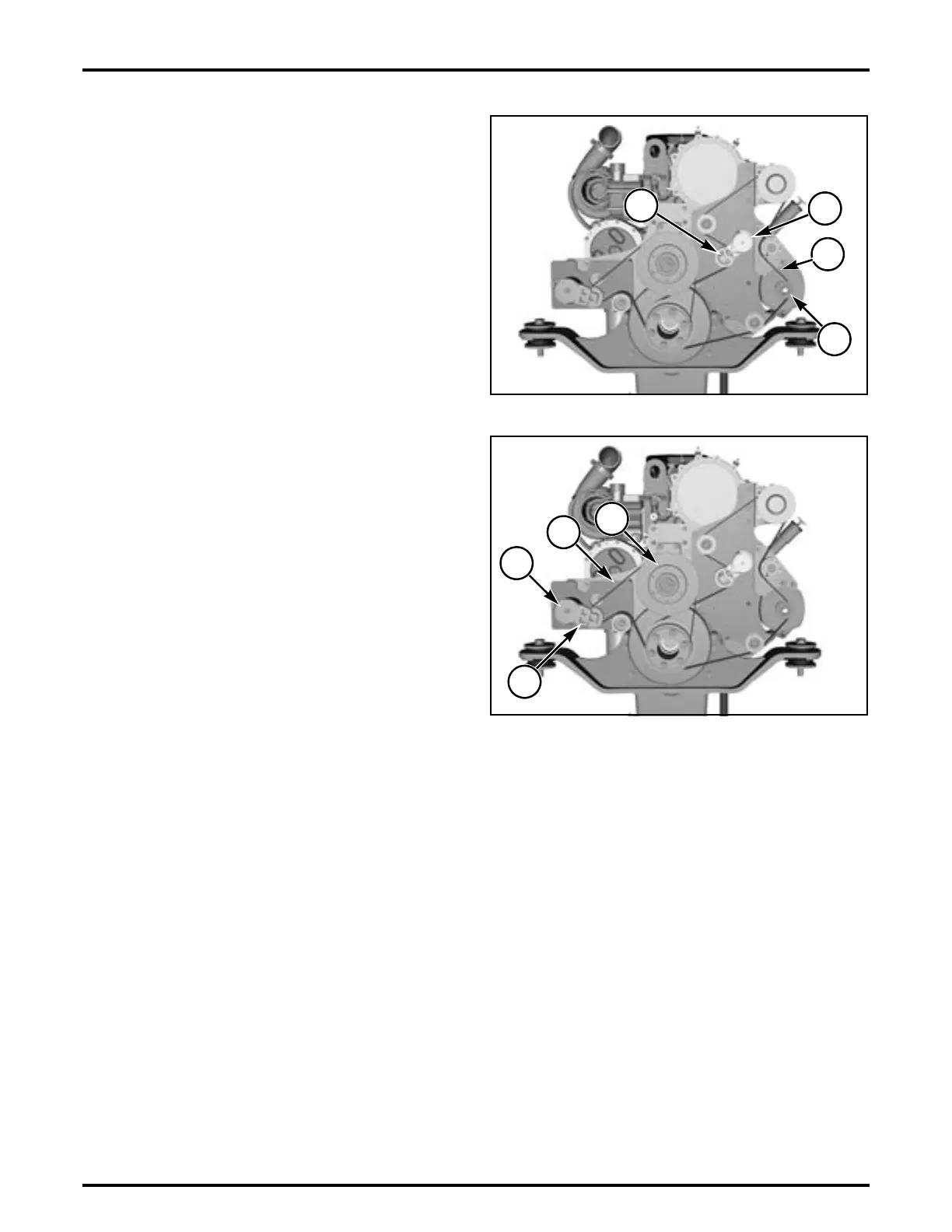

FIG. 7: Accessories serpentine belt install.
NOTE: Skip this step if the accessories serpentine belt
was not removed.
Install serpentine belt (3) over pulleys on front of engine,
leaving it off of alternator pulley. Ensure that belt ribs are
properly seated in pulley valleys.
Insert square drive of ratchet into square hole (1) on belt
tensioner (2) and rotate tensioner clockwise and hold.
m
WARNING: Equipment or parts under
spring tension can cause bodily injury. Use
caution in applying pressure to belt
tensioner.
Carefully place belt onto alternator pulley (4) ensuring belt
ribs are properly seated in pulley valleys and slowly allow
belt tensioner to release until it makes contact with belt.
FIG. 8: Fan drive serpentine belt install.
Install serpentine belt (3) over pulleys on front of engine,
leaving it off of fan drive. Ensure that belt ribs are properly
seated in pulley valleys.
Insert square drive of ratchet into square hole (1) on belt
tensioner (2) and rotate tensioner counter clockwise and
hold.
m
WARNING: Equipment or parts under
spring tension can cause bodily injury. Use
caution in applying pressure to belt
tensioner.
Carefully place belt onto fan drive pulley (4) ensuring belt
ribs are properly seated in pulley valleys and slowly allow
belt tensioner to release until it makes contact with belt.
FIG. 7
1
3
2
N021606002
4
FIG. 8
1
2
N021606002
4
3
