79033095 C Rev. 02-11
Engine Component
Alternator Install

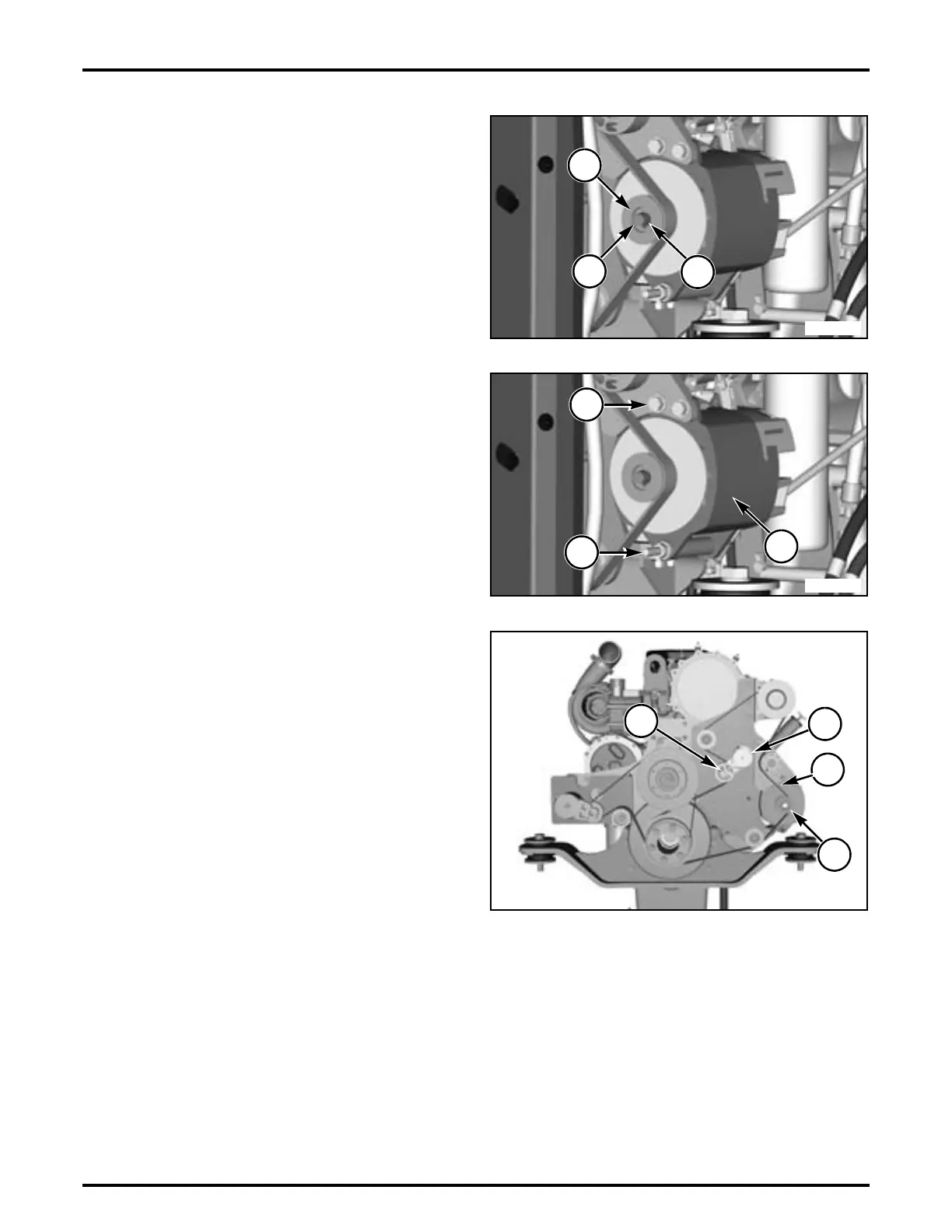

FIG. 18: Install pulley.
Install pulley (1) onto alternator shaft (2) and tighten nut
(3) to 102 Nm ± 7 Nm (75 lbf ft ± 5 lbf.ft).
FIG. 19: Install alternator.
Place alternator (3) and install the two top bolts (1) and
bottom bolt (2). Tighten top two bolts to 71 N.m. (52 ft.lb.).
Tighten bottom bolt to 105 N.m. (77 lb.ft.). The weight of
the alternator is approximately 27 kg (60 lb).
FIG. 20: Belt install.
Install serpentine belt (3) over pulleys on front of engine,
leaving it off of alternator pulley. Ensure that belt ribs are
properly seated in pulley valleys.
Insert square drive of ratchet into square hole (1) on belt
tensioner (2) and rotate tensioner clockwise and hold.
m
WARNING: Equipment or parts under
spring tension can cause bodily injury. Use
caution in applying pressure to belt
tensioner.
Carefully place belt onto alternator pulley (4) ensuring belt
ribs are properly seated in pulley valleys and slowly allow
belt tensioner to release until it makes contact with belt.
FIG. 18
FIG. 19
FIG. 20
