6-21
Passenger Compartment Air Filter
(If Equipped)

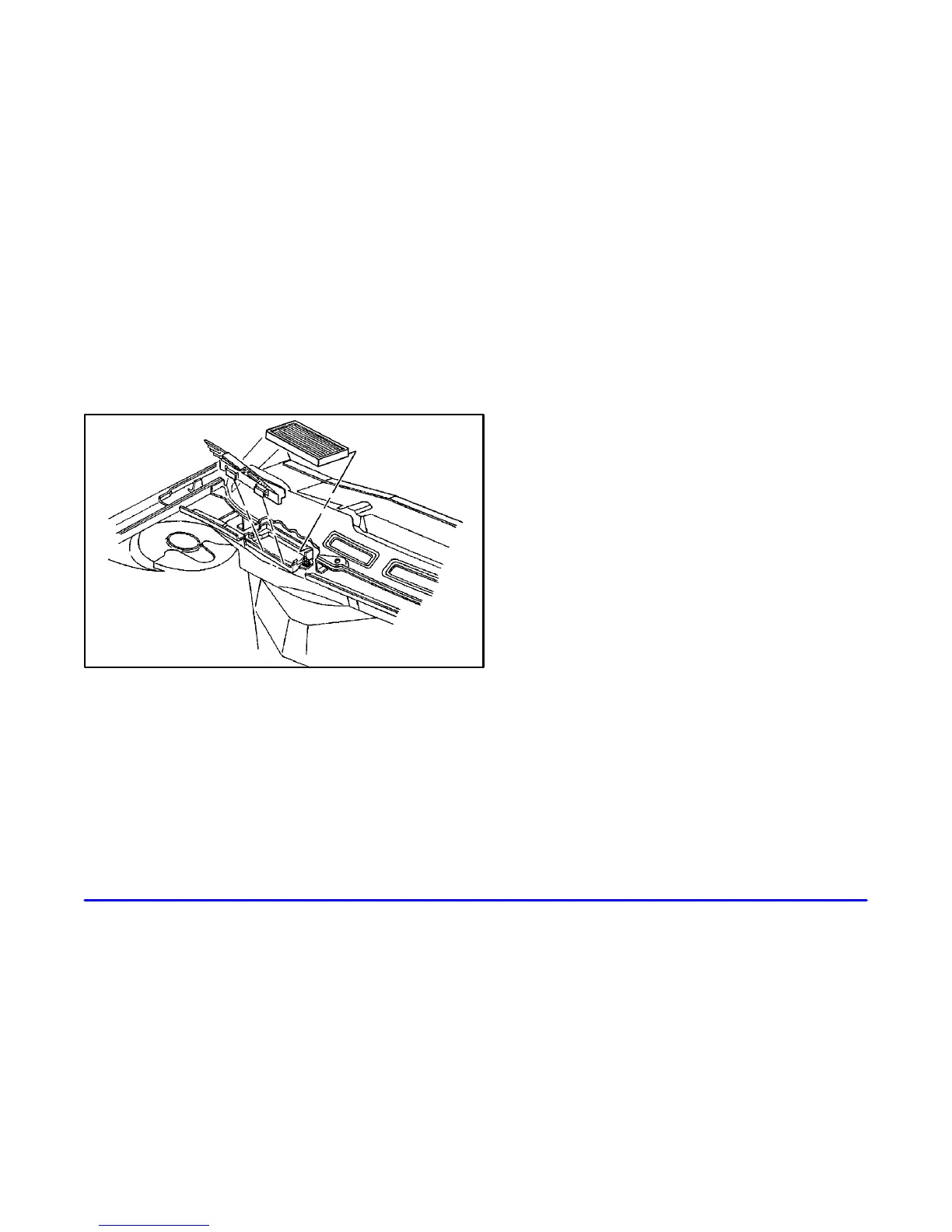

The passenger compartment air filter is located
underneath the hood just below the windshield wiper
arm on the passenger’s side of the vehicle (underneath
the air inlet grille).
The filter traps most of the pollen from air entering the
module. Like your engine’s air cleaner/filter, it may
need to be changed periodically. For information on how
often to change the passenger compartment air filter, see
“Maintenance Schedule” in the Index.
To change the passenger compartment air filter, use the
following steps:
1. Turn off the ignition when the windshield wipers are
in the up position.
2. Raise the hood.
3. Disconnect the windshield washer pump hose from
the fender rail and air inlet grille.
4. Reposition the hood weatherstrip from the
passenger’s side of the vehicle (peel back halfway
to center).
5. Remove the air inlet grille retainers.
6. Remove the air inlet grille.
7. Remove the air deflector grille in the compartment.
8. Remove the old passenger compartment air filter.
9. Then reverse the steps to install the new air filter.
For the type of filter to use, see “Normal Maintenance
Replacement Parts” in the Index.
