10-28 Vehicle Care

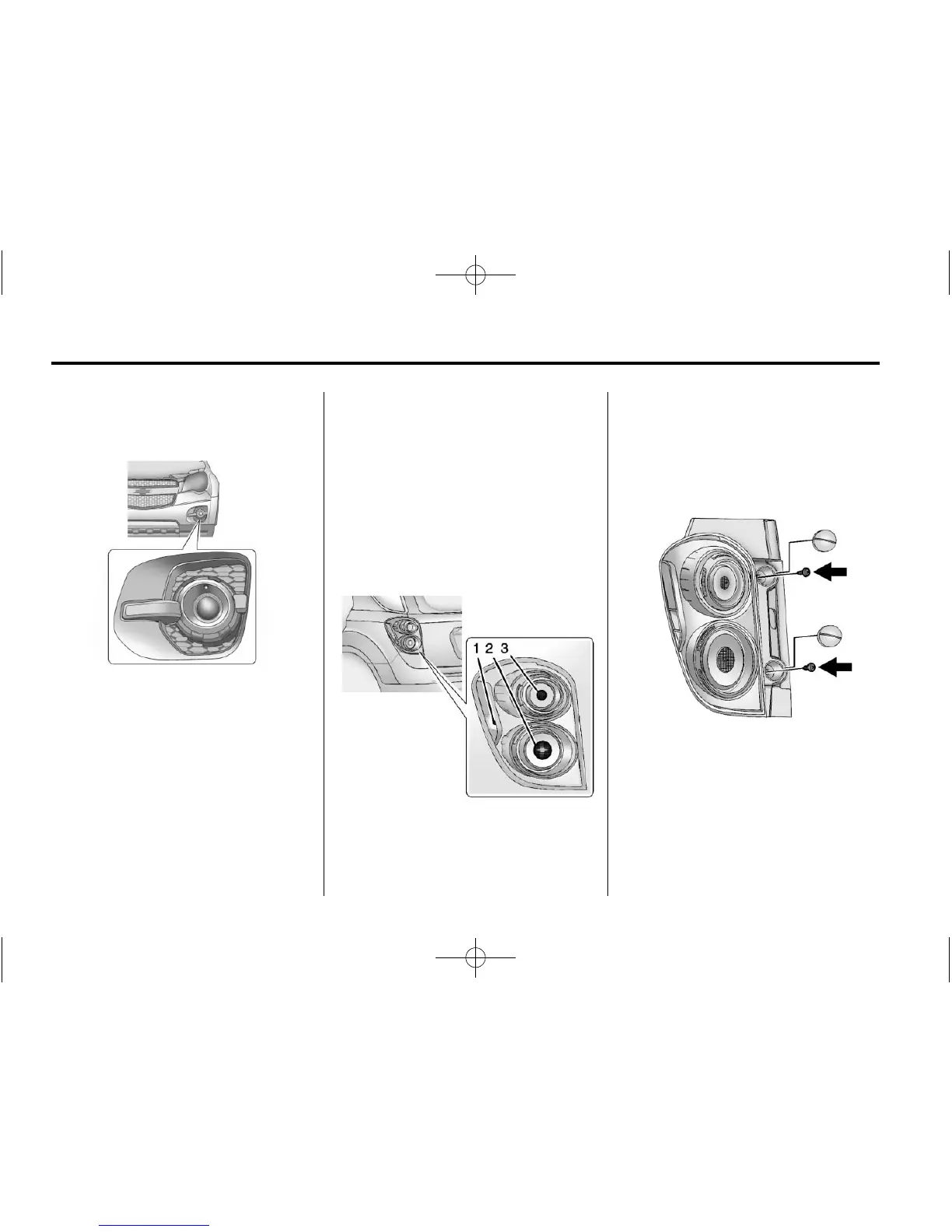

Fog Lamps
To replace one of these bulbs:
1. Locate the fog lamp assembly
under the front facia.
2. Disconnect the bulb socket from
the electrical connector, turn and
pull out the bulb assembly.
3. Remove the old bulb from the
bulb socket and push the new
bulb straight into the bulb socket
until it connects.
4. Push the bulb socket into the fog
lamp assembly and turn
clockwise to lock it into place.
5. Reconnect the bulb socket to the
electrical connector.
Taillamps, Turn Signal,
Sidemarker, Stoplamps,
and Back-Up Lamps
1. Sidemarker
2. Stoplamp/Turn Signal Lamp/
Taillamp
3. Back-up Lamp
To replace one of these lamps:
1. Open the liftgate. See Liftgate
on page 2‑8.
2. Remove the two screw covers
from the taillamp assembly.
3. Remove the two screws
securing the taillamp assembly.
4. Pull taillamp assembly out of
vehicle body.
5. Disconnect the lamp wiring
harness.
