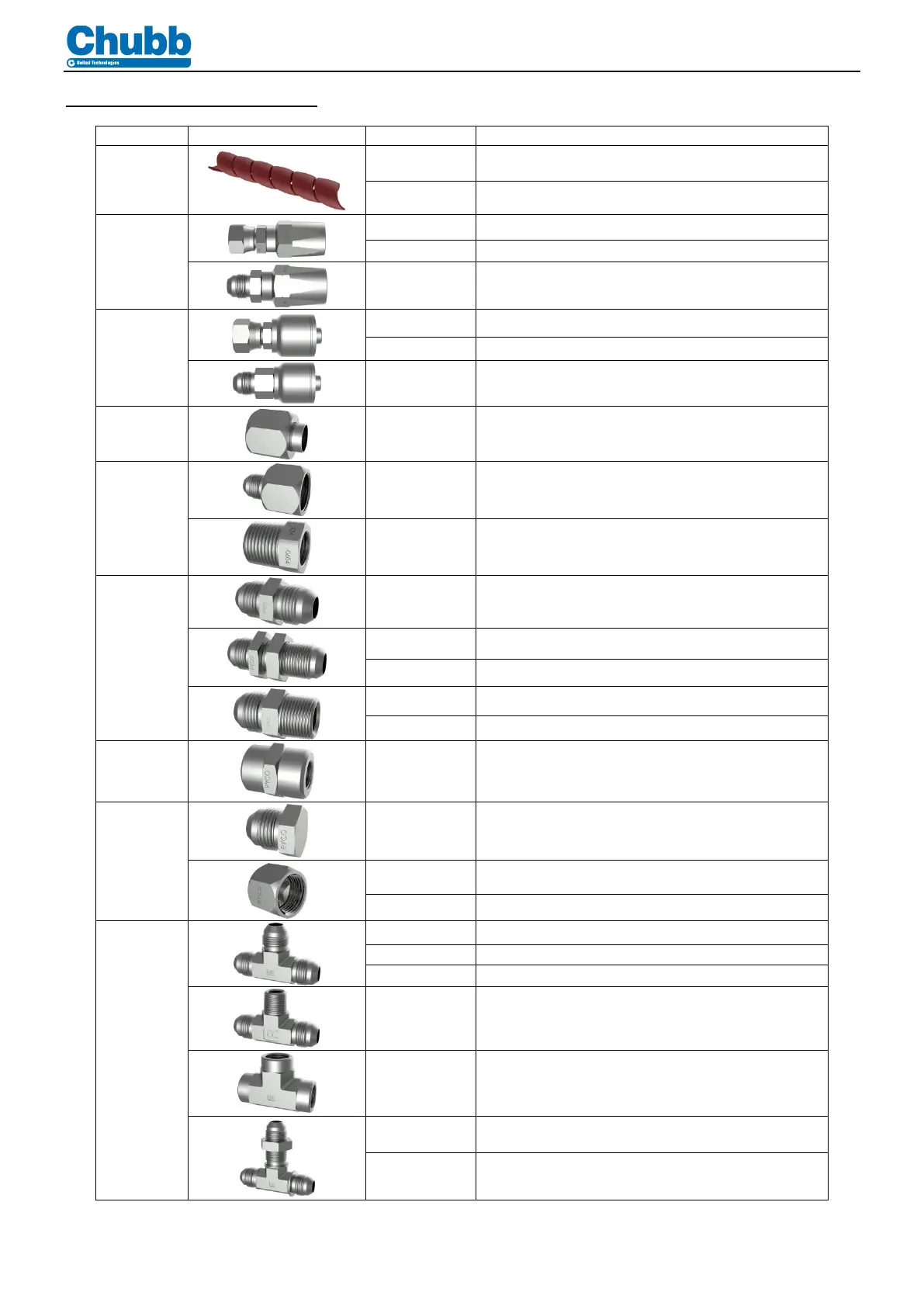

Discharge Hose and Tube fittings
Type
Part No.
Description
Hose
Protector
40155
20mm Red - Suitable for ½” hose
40154
25mm Red - Suitable for ¾” hose
Couplings
(Field
Attachable)
118099
1/2” Hose x 3/4” JIC (f) swivel
118100
3/4” Hose x 1 1/16” JIC (f) swivel
128744
1/2” Hose x 3/4” JIC (m)
Couplings
(Crimp)
116257
1/2” Hose x 3/4” JIC (f) swivel
128995
3/4” Hose x 1 1/16” JIC (f) swivel
129671
1/2” Hose x 3/4” JIC (m)
Cap/Nut
112145
3/4” JIC Nut & Sleeve to suit 1/2” Tube
Adaptor /
Reducing
Bushes
112146
3/4” JIC (m) x 1 1/16” JIC (f)
112144
3/8” BSP (m) x 1/4” BSP (f)
Nipples
114545
3/4” JIC
128766
3/4” JIC Bulkhead
112142
1 1/16” JIC Bulkhead
112128
3/4” JIC x 3/4” BSP
112129
1 1/16” JIC x 3/4” BSP
Socket
112143
3/8” BSP (f) x 1/4” BSP (f)
Plug/Cap
128745
3/4” JIC (m)
128741
3/4” JIC (f)
137083
1 1/16” JIC cap
Tees
112130
3/4” JIC (m)
112131
1 1/16” JIC (m)
114609
1 1/16” JIC (m) x ¾” JIC (m) x ¾” JIC (m)
112132
3/4” JIC (m) x 3/4” JIC (m) x 3/8” BSP (m)
112183
3/8” BSP (f)
130076
¾” JIC (m) bulkhead
130077
1 1/16” JIC (m) bulkhead
