Cisco 3200 Series Router Hardware Upgrade Guide
OL-15983-01
Chapter 1 Introduction
Cisco 3230 Rugged Enclosure
Exploded View of the Cisco 3270 Rugged Enclosure

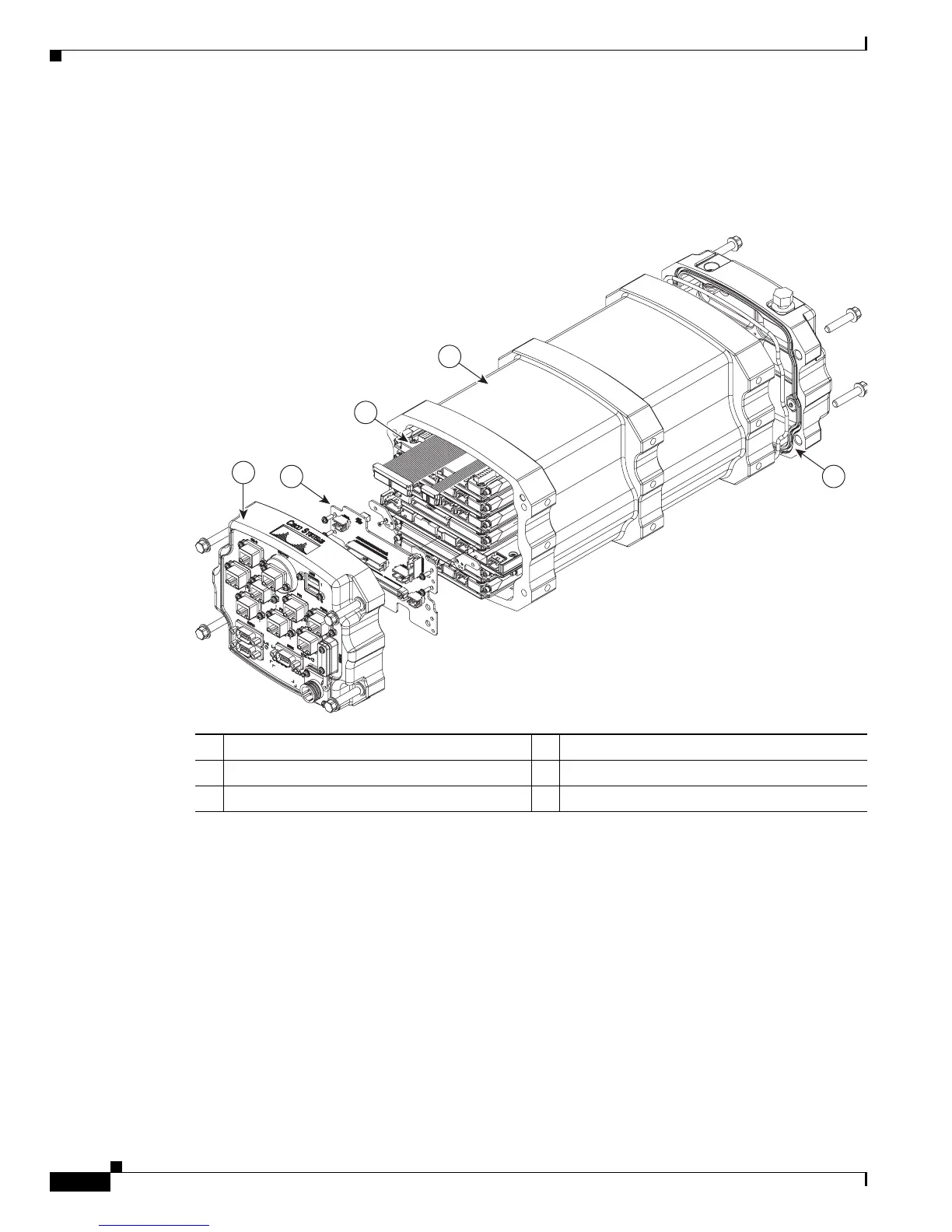

Figure 1-5 shows an exploded view of the Cisco 3270 Rugged Enclosure.
Figure 1-5 Exploded View of the 3270 Rugged Enclosure
The Cisco 3270 Rugged Enclosure supports only version 2 of the wiring card.
1 I/O end cap
1
1. This end cap shows four serial ports, but the typical configuration has two serial ports.
2 Wiring card (version 2)
3 Card stack 4 Extrusion (body of the enclosure)
5 Antenna end cap
1
2
3
4
5
270439
