Cisco 5510 - ASA SSL / IPsec VPN Edition Hardware Installation Guide

B-14
Cisco ASA 5500 Series Hardware Installation Guide
OL-10089-01
Appendix B Maintenance and Upgrade Procedures
Removing and Replacing the CompactFlash
Replacing the User CompactFlash
To replace the user CompactFlash, perform the following steps:
Step 1 Locate the user CompactFlash slot in the rear panel of the chassis. See Figure B-14.

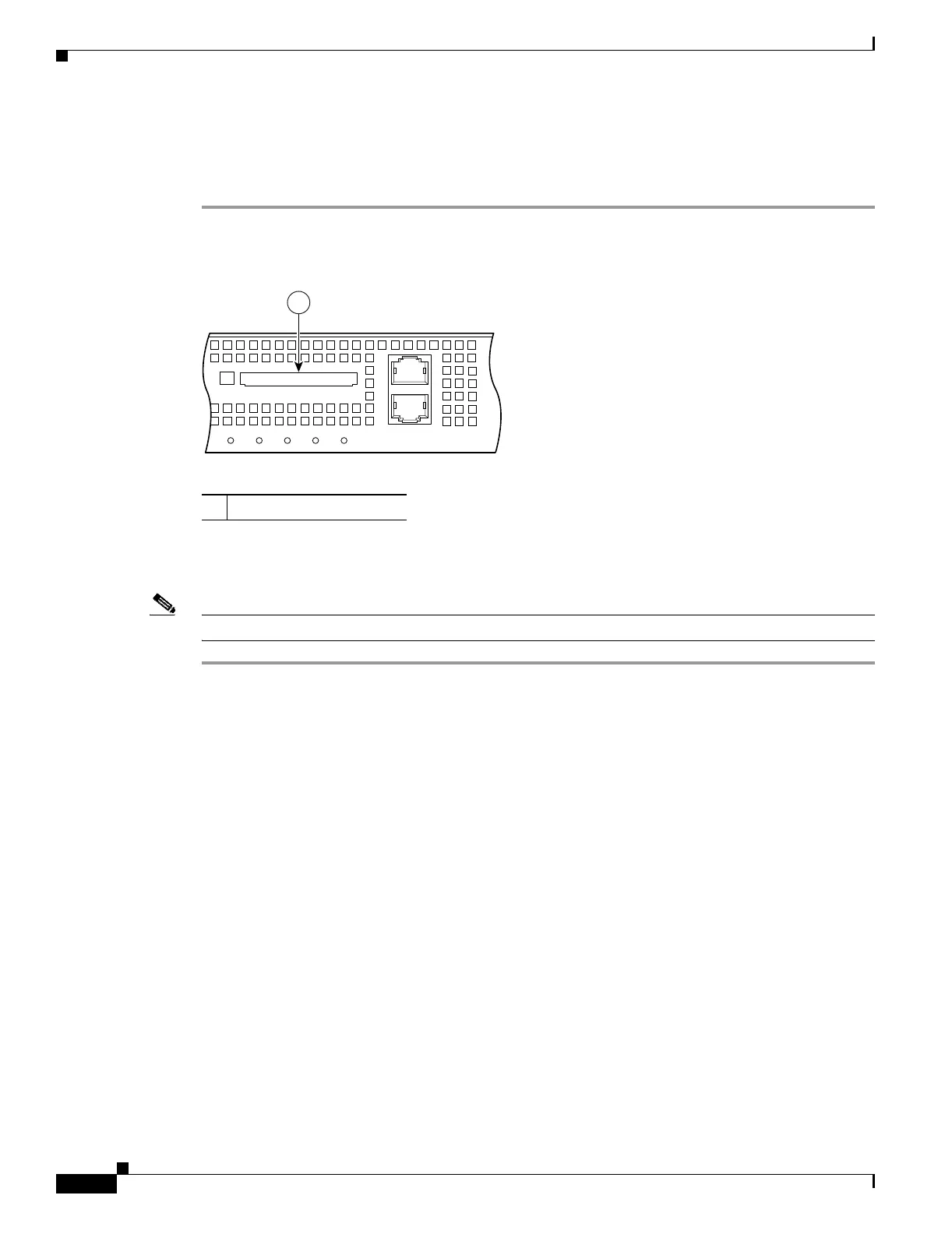

Figure B-14 User CompactFlash Slot
Step 2
With the label facing up, insert the connector end of the user CompactFlash into the slot until the card
is seated in the connector and the release button is pushed out.
Note The user CompactFlash is keyed so that it cannot be inserted wrong.
1 User CompactFlash slot
126989
FLASH
CONSOLE
AUX
POWER
STATUS
FLASH
VPN
ACTIVE
1
