2-5
Cisco Video Surveillance 6400 IP Camera Installation Guide
OL-28494-01
Chapter 2 Camera Installation
Connecting External Power and I/O Cables
Connecting External Power and I/O Cables
The 6400 IP camera can be powered using Power over Ethernet (PoE), or by using an external power
source. If an external power source is used, a power cable must be connected to the General Purpose I/O
(GPIO) terminal block on the IP camera. Additionally, external devices that trigger alarms or respond to
alarms can be connected to the GPIO terminal block using I/O cables. To avoid moisture damage to the
IP camera, the optional external power cable and I/O cables, which are user-supplied, must pass through
a waterproof connector.
To connect an external power cable or I/O cables for external devices, perform the following steps:
Procedure

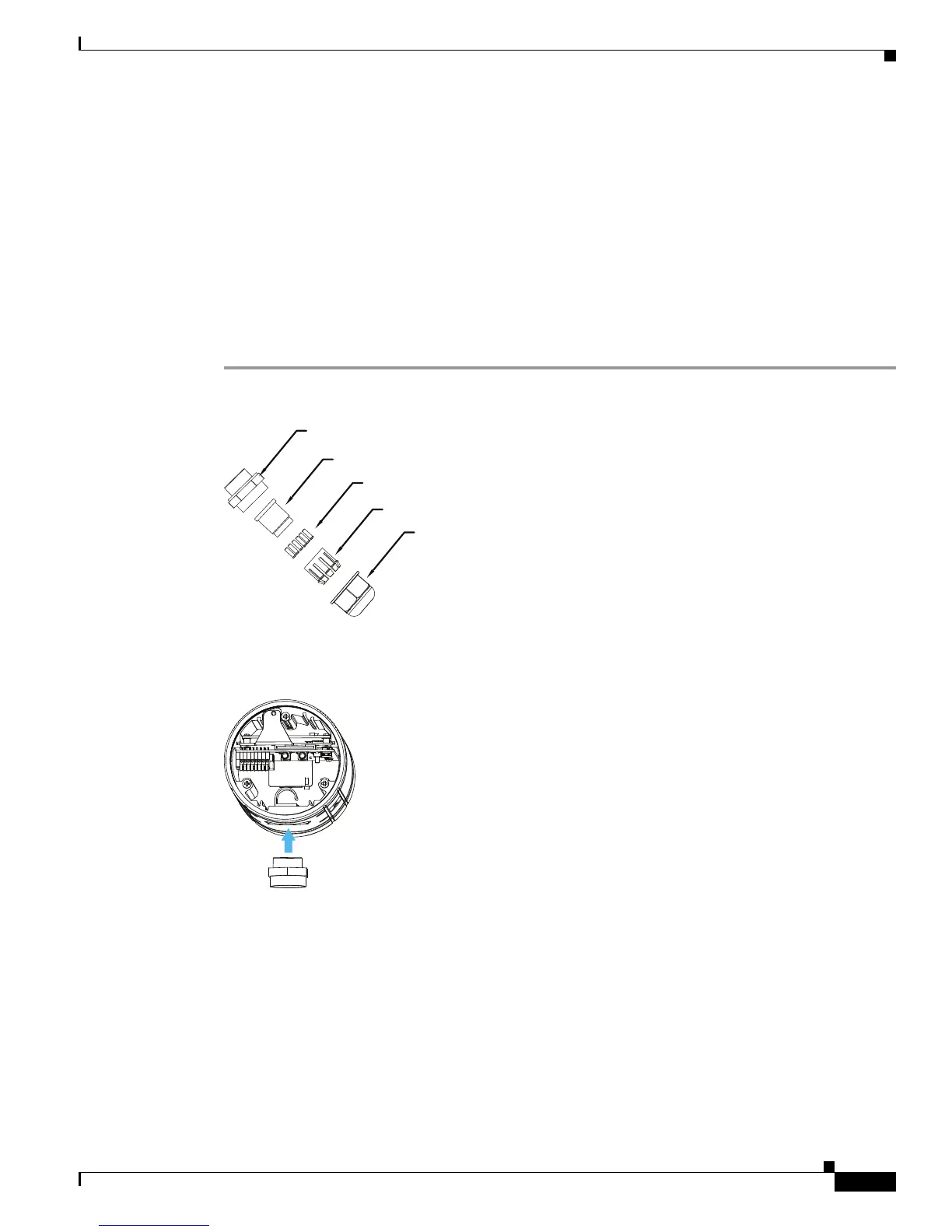

Step 1 Disassemble the components of the waterproof connector into its individual components as shown
below.
Step 2 Remove the back cover from the IP camera.
Step 3 Remove the rubber stopper from the bottom of the IP Camera and tightly secure the screw nut (A).
Screw Nut (A)
Seal (B)
Seals (C)
Housing (D)
Sealing Nut (E)
(A)
To Next Page
