• Base station without PoE: Plug the power adapter into the base station and route the cable through the
slot in the base station.
• Repeater: Plug the power adapter into the repeater and route the cable through the slot in the repeater.
Step 3 Slide the stand into the device and press it until it clicks into place.

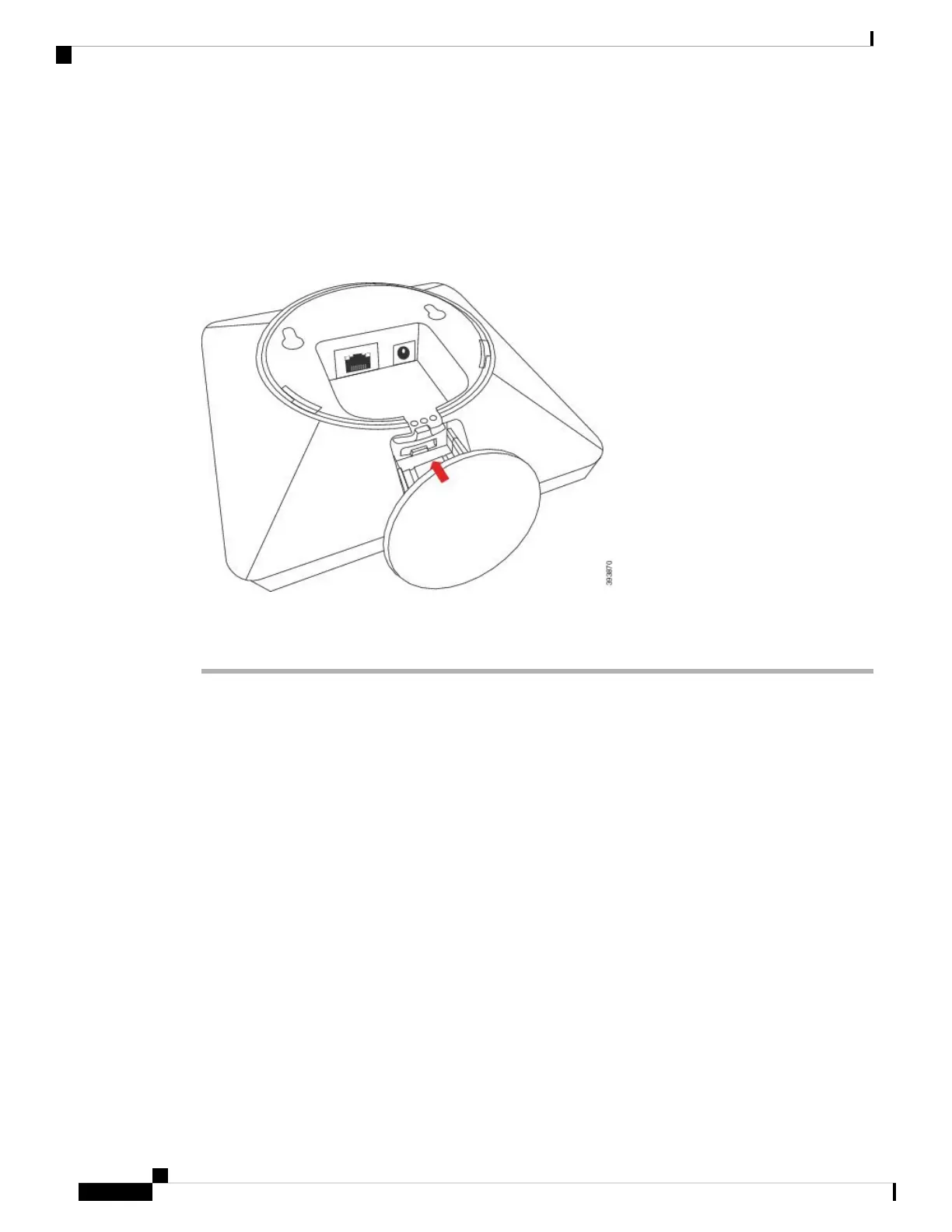

This graphic shows the stand connection to the base station. The back of the repeater is similar to the base
station.
Step 4 Base station only: Plug the Ethernet cable into the LAN port.
Step 5 If required, plug the power adapter into the electrical outlet.
What to do next
Do one of these:
• Base station installation:
• Manual configuration: Sign into the Administration Web Page and Configure the Base Station
• Automatic configuration: Sign into the Administration Web Page and Start Handset Registration
• Repeater installation: Add a Repeater
Mount the Base Station or Repeater on the Wall
You can mount the base station or repeater on a wall. You put two screws into the wall and slip the base
station or repeater onto the screw heads or you can use the ceiling mount bracket.
We recommend that you mount the base station or repeater as high as possible on a wall. If possible, mount
it at a downward facing angle for better radio coverage.
The base station and repeater have a range of up to 984 feet (300 meters) outdoors and a range of 164 feet
(50 meters) indoors.
Hardware Installation
12
Hardware Installation
Mount the Base Station or Repeater on the Wall
