Cisco Integrated Services Router Hardware Installation Guide
Chapter 1 Product Overview
Cisco 860, 880, 890 Series
Cisco 880 Series with Embedded WLAN Antennas
Some Cisco 880W, 880WD, and 880-WD ISRs have three embedded WLAN antennas.
These ISRs are fixed-platform routers that:
• Provide integrated VPN, embedded Wi-Fi CERTIFIED™, 802.11b/g/n-compliant wireless AP, and
backup capabilities.
• Use single-band (2.4 GHz) WLAN cards or dual-band (2.4 GHz and 5 GHz) WLAN cards.
• Require a single external power supply: a 30-W power supply for non-POE-enabled routers or a
60-W power supply for POE-enabled routers.
• Have a fixed 512 MB of system memory.
For information on configuring the Cisco 880 series ISRs, see Cisco 880 Series Integrated Services
Router Software Configuration Guide.
Cisco 887VA-WD
Figure 1-28 shows the front panel details of the C887VA-WD-A-K9 and C887VA-WD-E-K9 ISRs. The
front panel has LEDs only. All the ports are in the back panel.

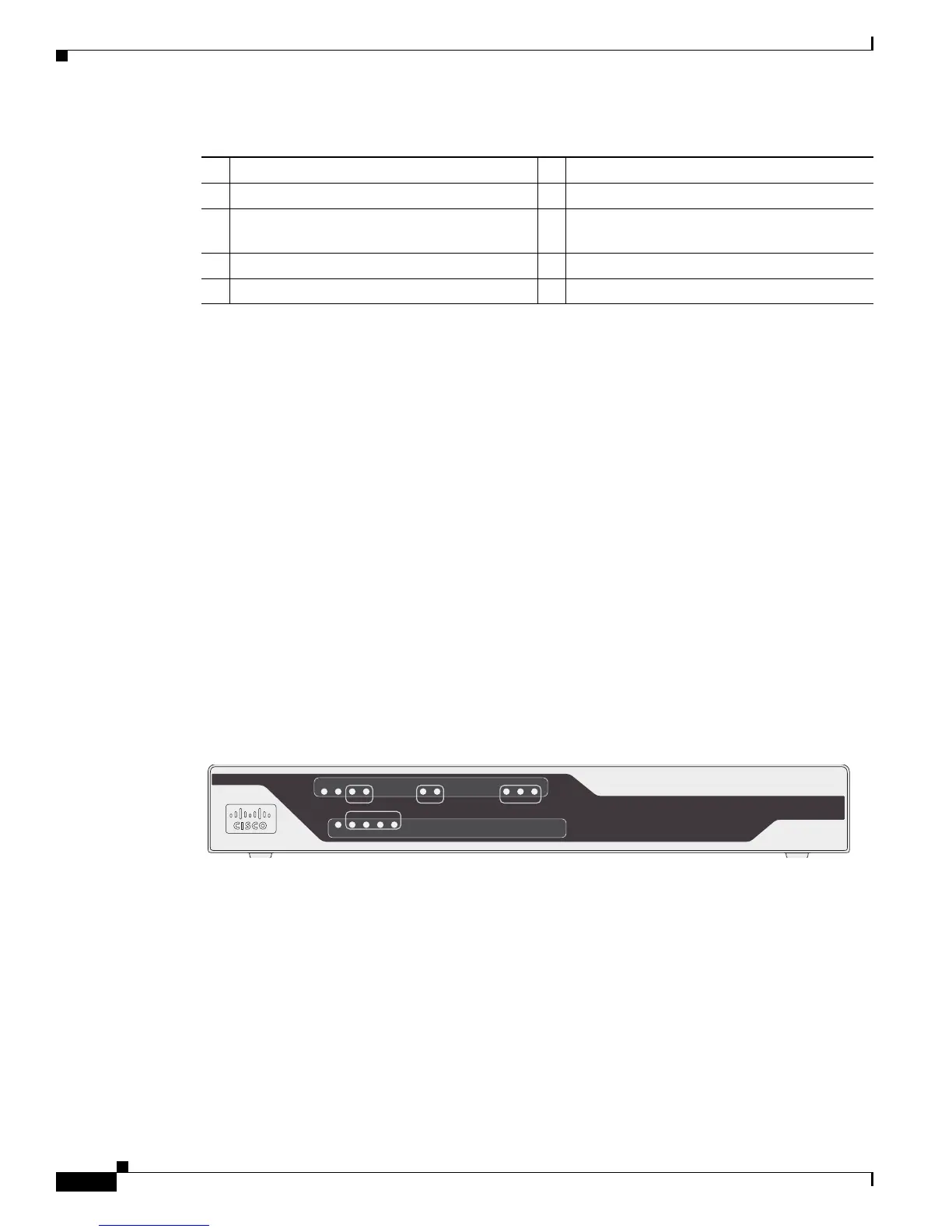

Figure 1-28 Front Panel of the C887VA-WD-A-K9 and C887VA-WD-E-K9 ISRs
1 Fast Ethernet WAN port 6 PoE power connector (optional)
2 Voice BRI ports 7 Reset button
3 Voice ports—four FXS/DID ports and one
FXO port.
8 Power connector
4 Fast Ethernet LAN—four ports 9 Earth ground connection
5 Console Port 10 Kensington security slot
284983
OK
PPP
WLAN
POE
0
1
LINK 2.4GHz 5GHz
Cisco 800 Series
FE LAN
VPN
0123
xDSL
CD DATA
