Cisco 890 Series User Manual

1-87
Cisco Integrated Services Router Hardware Installation Guide
Chapter 1 Product Overview
Cisco 860, 880, 890 Series
Figure 1-51 shows the back panel of the Cisco C897VAG-LTE ISR.

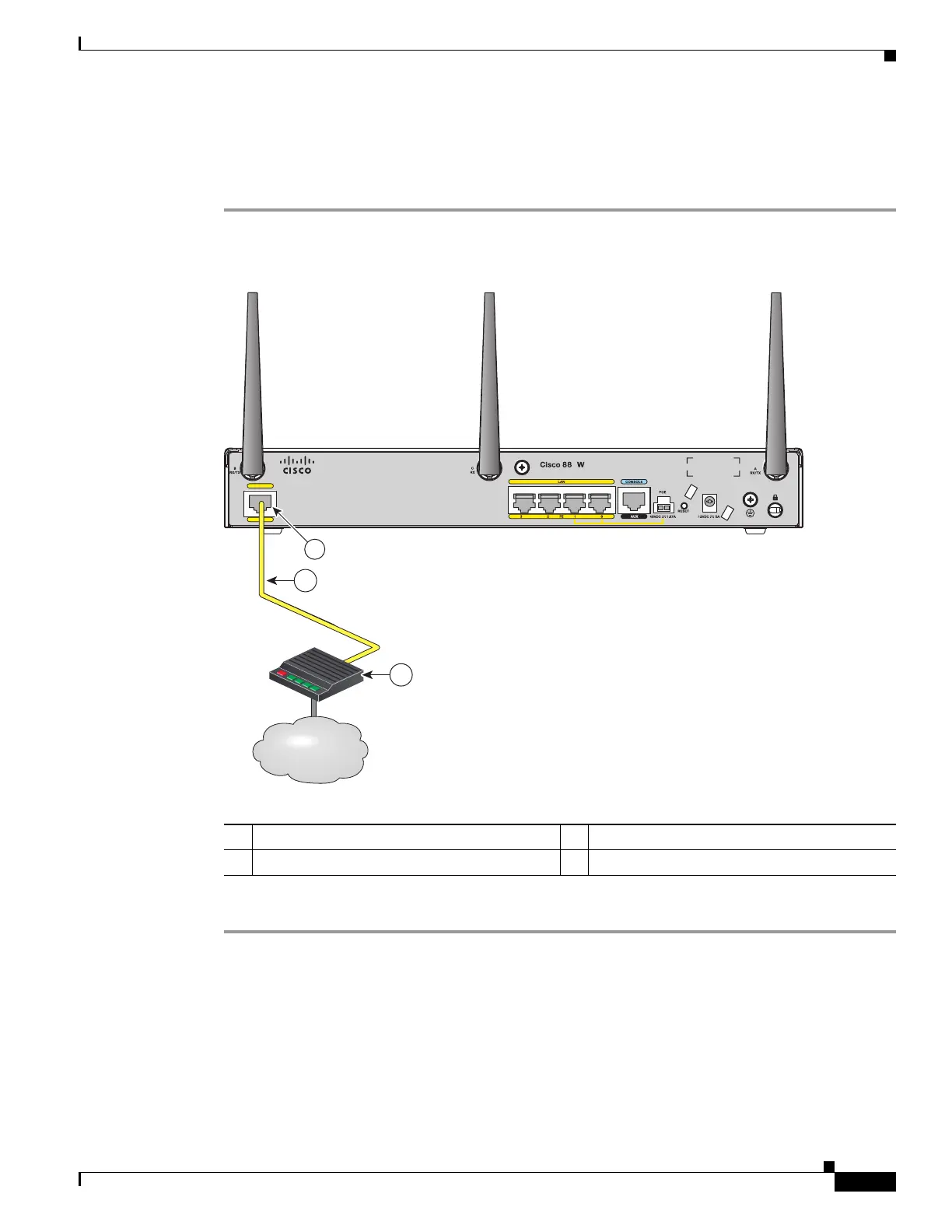

Figure 1-51 Back Panel of the Cisco C897VAG-LTE ISR
12 GPS Green
(solid)
Standalone GPS.
Green (slow
blinking)
GPS is acquiring signals.
Yellow
(solid)
Assisted GPS.
Yellow
(slow
blinking)
Assisted GPS is acquiring signals.
Off GPS is not configured.
13 WWAN Green Module is powered on and connected, but not
transmitting or receiving.
Green (slow
blinking)
Module is powered on and searching for connection.
Green (fast
blinking)
Module is transmitting or receiving.
Off Module is not powered.
Table 1-35 LED Descriptions (continued)for the Cisco C897VAG-LTE ISR
Number LED Color Description
372525
1 2 3 4 5 6 7 10 12118 9
131416 15
1 GE WAN interface 9 On/Off switch
2 SFP port 10 Reset button
3 4G port 11 Earth ground connection
4 USB port 12 Kensington security slot
5 SIM slots 13 4G antenna connector—M1/DIV
