• Amber (FAST)—UTI is operating in fast mode.

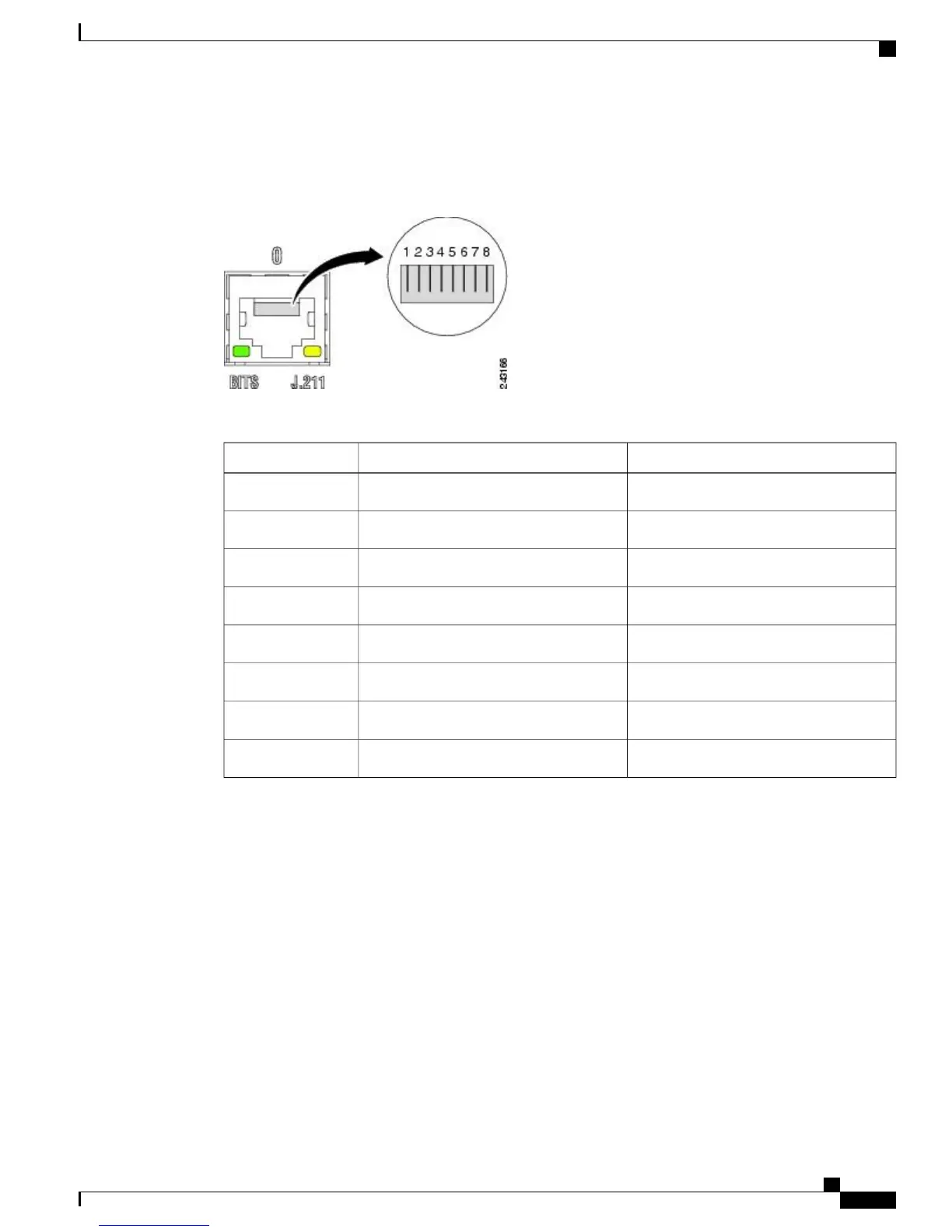

Figure 65: SYNC Port Connector
Table 9: BITS/J.211 Connector Pinout
NoteSignalPin
Bi-direction for DTI, T1/E1/64K InputDTI_P/BITS_RX_P1
Bi-direction for DTI, T1/E1/64K InputDTI_P/BITS_RX_N2
——
3
T1/E1/6.321M OutputBITS_TX_P*4
T1/E1/6.321M OutputBITS_TX_N*5
——
6
——
7
——
8
SFP/SFP+ Port
The RSP-440 and RSP-440 Lite support two 10-GE Small Form-Factor Pluggable Plus (SFP+) virtualization
cluster ports. The RSP-880 supports four 10-GE SFP+ ports that are used for external server connectivity
capability.
GPS Interface
The RSP-440, RSP-440 Lite, RSP880-LT, and RSP-880 have a Time of Day (ToD) port, 10-MHz connector,
and 1-PPS connector that allow you to configure input or output clocking with a GPS device.
