Cisco ASR 1000 Series Replacing

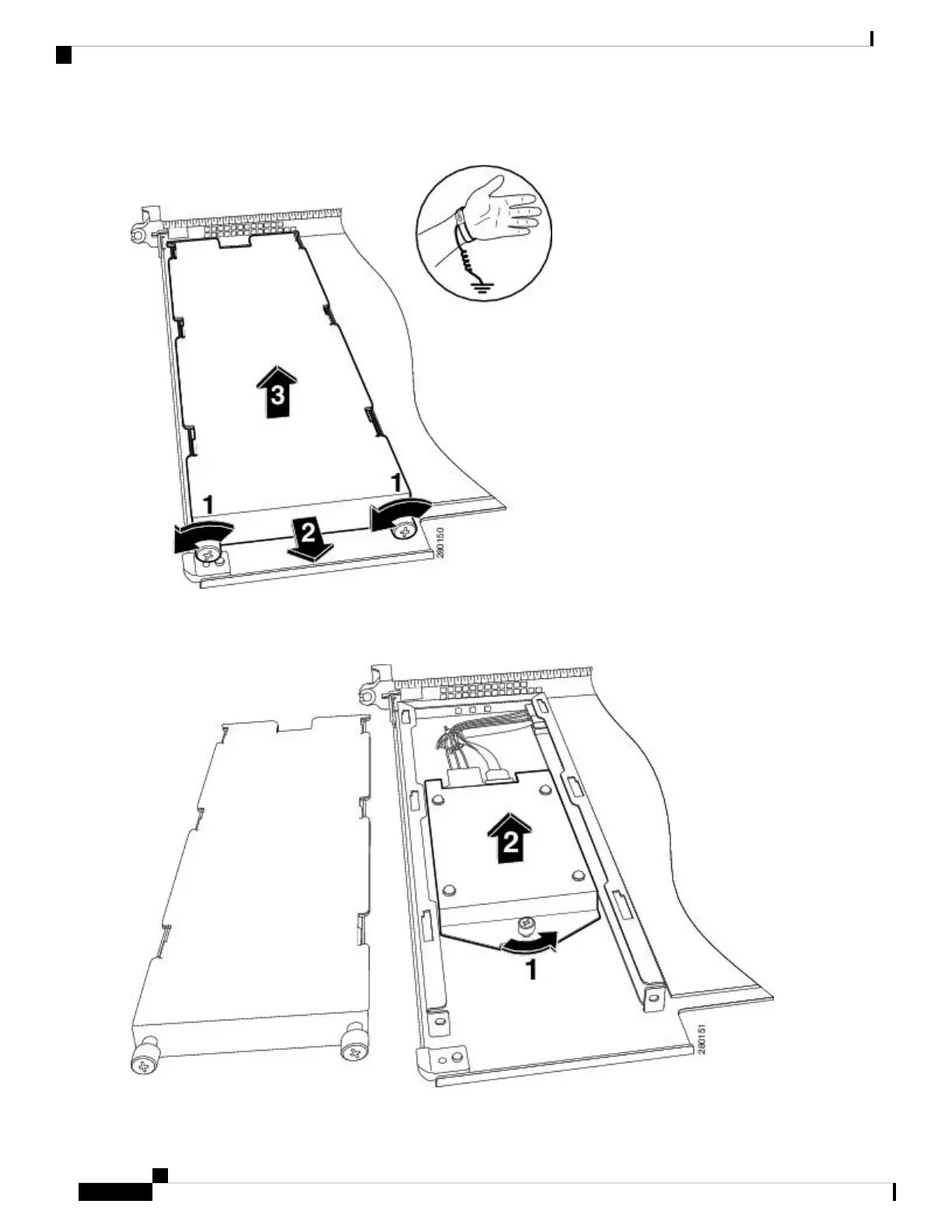

Figure 1: Cisco ASR1000RP1 Module Internal Hard Drive Unit
The following figure shows the Cisco ASR1000-RP1 module with the hard drive cover removed.
Figure 2: Cisco ASR1000-RP1 Module Hard Drive Cover and Screw Fastener
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
6
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
Removing the Cisco ASR1000-RP1 Internal Hard Drive
