Cisco ASR 920 series User Manual

DETAILED STEPS

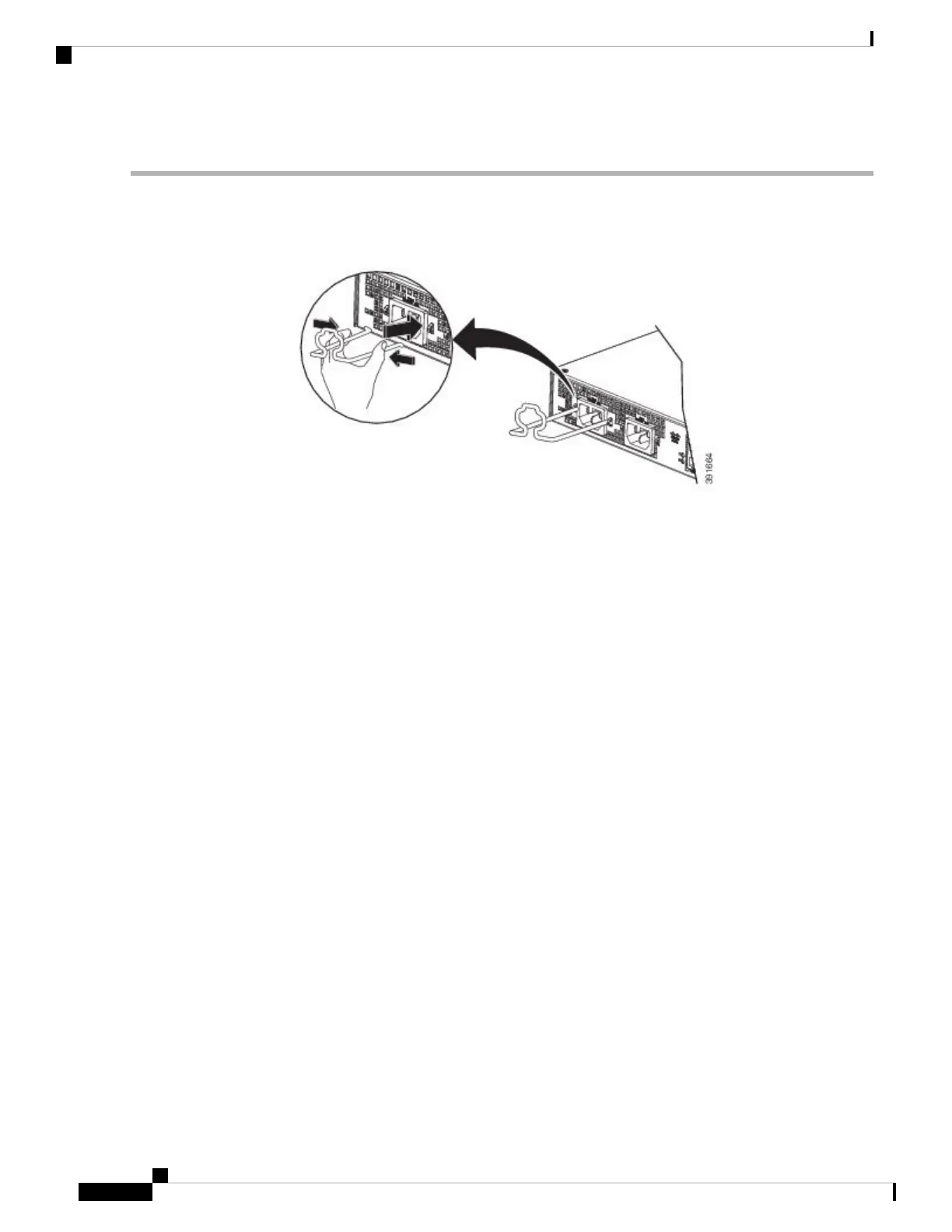

Step 1 Attach the AC power retainer chord as shown in the figure below.
Figure 12: Attaching the AC Power Retainer Chord
Step 2 Lift the power retainer and plug in the AC power supply.
Push the retainer chord towards the power supply chord to lock it in place.
Installing the Cisco ASR 920 Series Router
12
Installing the Cisco ASR 920 Series Router
Install the AC Power Cables

Cisco ASR 920 series Specifications

General

Form Factor	1RU
Operating System	Cisco IOS XE
Model	ASR 920 series
Memory	4 GB DRAM
Power Supply	AC or DC
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Relative Humidity	5% to 95% non-condensing
MTBF	Varies by model
Management	CLI, SNMP
