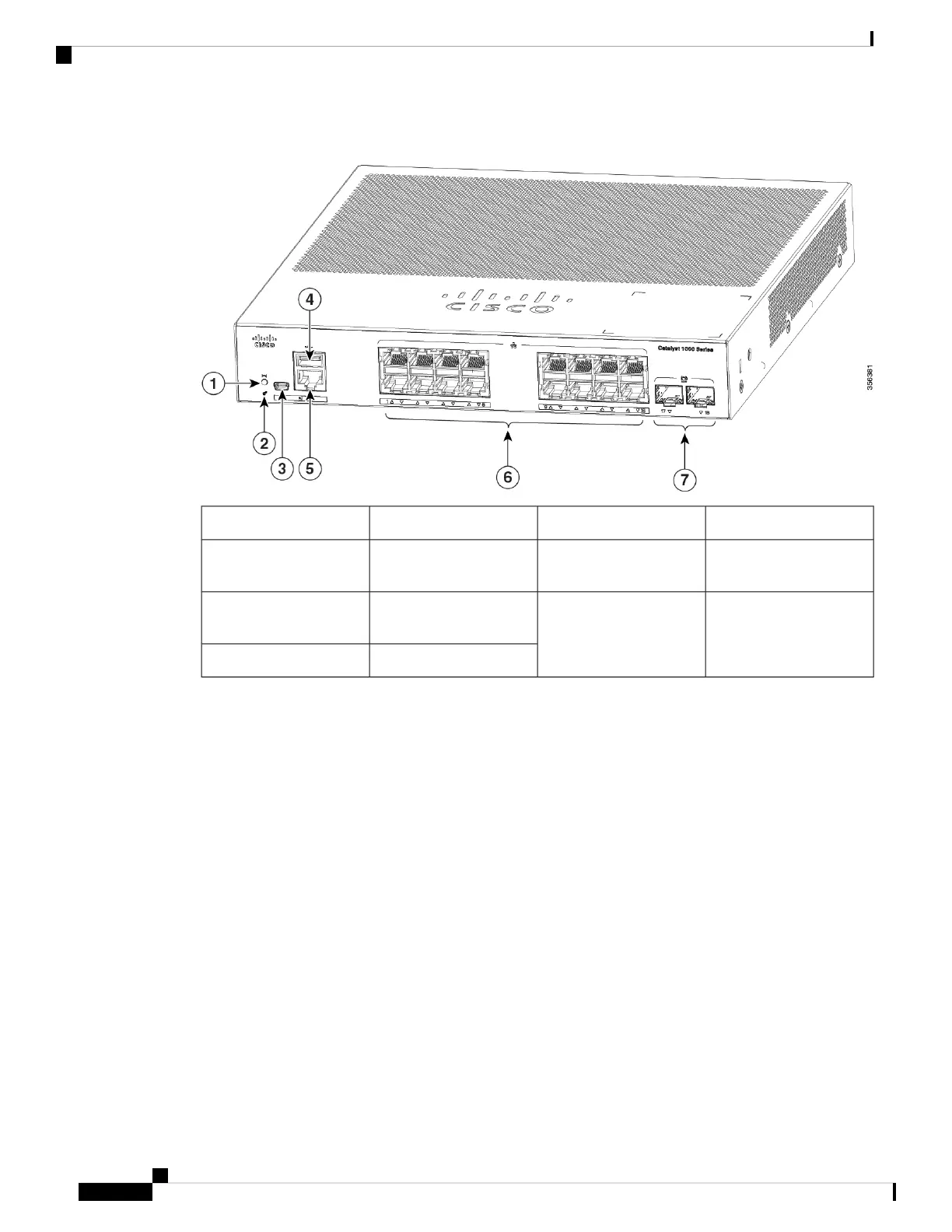

Figure 2: Front Panel of a 16-Port Cisco Catalyst 1000 PoE Switch
RJ-45 Console Port5Reset button1
16 10/100/1000 PoE+
ports
6System LEDs2
SFP module slots7USB mini-Type B
(console) port
3
USB Type A port4
PoE Ports
The ports provide PoE support for devices compliant with IEEE 802.3af and IEEE 802.3at and also provide
PoE support for Cisco IP Phones and Cisco Aironet Access Points. The PoE switch ports are Power Source
equipment (PSE) capable and source power to PD devices connected to the downlink ports. A switch can
source POE power of up to 30.8W per port.
Depending on the switch model and the number of PoE ports, the maximum switch power output varies
between 67 W to 740 W. On a per-port basis, you can control whether or not a port automatically provides
power when an IP phone or an access point is connected.
The PoE ports use RJ-45 connectors with Ethernet pinouts. The 10BASE-T, 100BASE-TX, 1000BASE-T
traffic requires Category 5 or Category 5e twisted pair (UTP) cable. The 10BASE-T traffic can use Category 3
or Category 4 UTP cable.
10/100/1000 Ports
The 10/100/1000 ports use RJ-45 connectors with Ethernet pinouts. The maximum cable length is 328 feet
(100 meters). The 10BASE-T, 100BASE-TX, 1000BASE-T traffic requires Category 5 or Category 5e twisted
pair (UTP) cable. The 10BASE-T traffic can use Category 3 or Category 4 UTP cable.
Cisco Catalyst 1000 Series 8-Port and 16-Port Switch Hardware Installation Guide
4
Product Overview
