Cisco C1101-4P Installation And Connection

Procedure
PurposeCommand or Action
To install the router, use the screws provided with the
accessory kit to secure the router when you mount it on the
rack.
Step 1
Mount the Router under a Desk or a Shelf
Installing the router under a desk requires an optional bracket kit that is not included with the router. The kit
contains the rack-mount brackets and screws to secure the brackets to the router and the underside of the desk.
You can order these kits from your Cisco representative. This procedure describes how to mount router under
a desk or a shelf .
Step 1 Attach a bracket to one side of the router using the flat-head screws. Follow the same steps to attach the second bracket
to the opposite side.

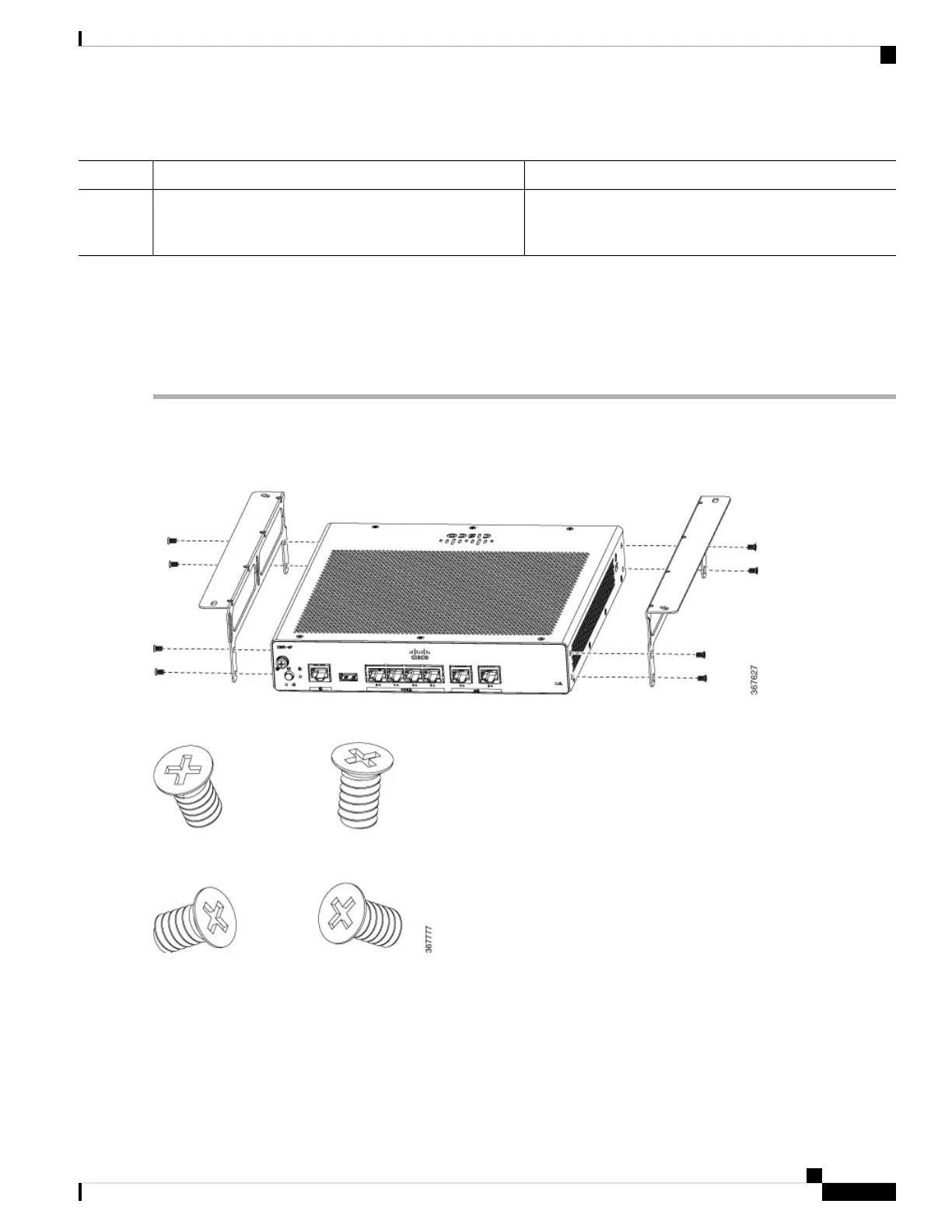

Figure 3: Attaching Brackets to the Router
Figure 4: Flat-head Machine Screws
Install and Connect the Router
5
Install and Connect the Router
Mount the Router under a Desk or a Shelf

Cisco C1101-4P Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Wi-Fi band	-
WLAN data transfer rate (max)	- Mbit/s
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	4
Security algorithms	AES, WPA2
Product type	Tabletop router
Product color	Gray
Country of origin	China
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	30 W
Internal memory	4000 MB
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 4570 m
Storage temperature (T-T)	0 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 85 %
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85176990
Package depth	333.502 mm
Package width	254 mm
Package height	177.8 mm
Package weight	3083.9 g
