Cisco C1101-4P User Manual

Replace the Chassis Cover
The Cisco 1100 Series ISRs have a removable cover. Do not attempt to run the router without the cover. This
can cause the router to overheat very quickly. To remove the chassis cover, use a number-2 Phillips screwdriver
and perform the following tasks:
Remove the Cover
To remove the cover, perform the following steps:
Step 1 Disconnect the power supply before you perform any module replacement.
Step 2 Confirm the router is turned off and disconnected from the power supply.
Step 3 Disconnect all port cables so that that no one works on the unit with attached cable in the event of lightning or surges.
Step 4 Place the chassis on a flat surface.Remove the fourteen cover screws on the two sides of the router cover.
Step 5 Slide the cover from bezel side to I/O side until it stops. Remove all screws on both sides of the router; there are seven
screws on each side.

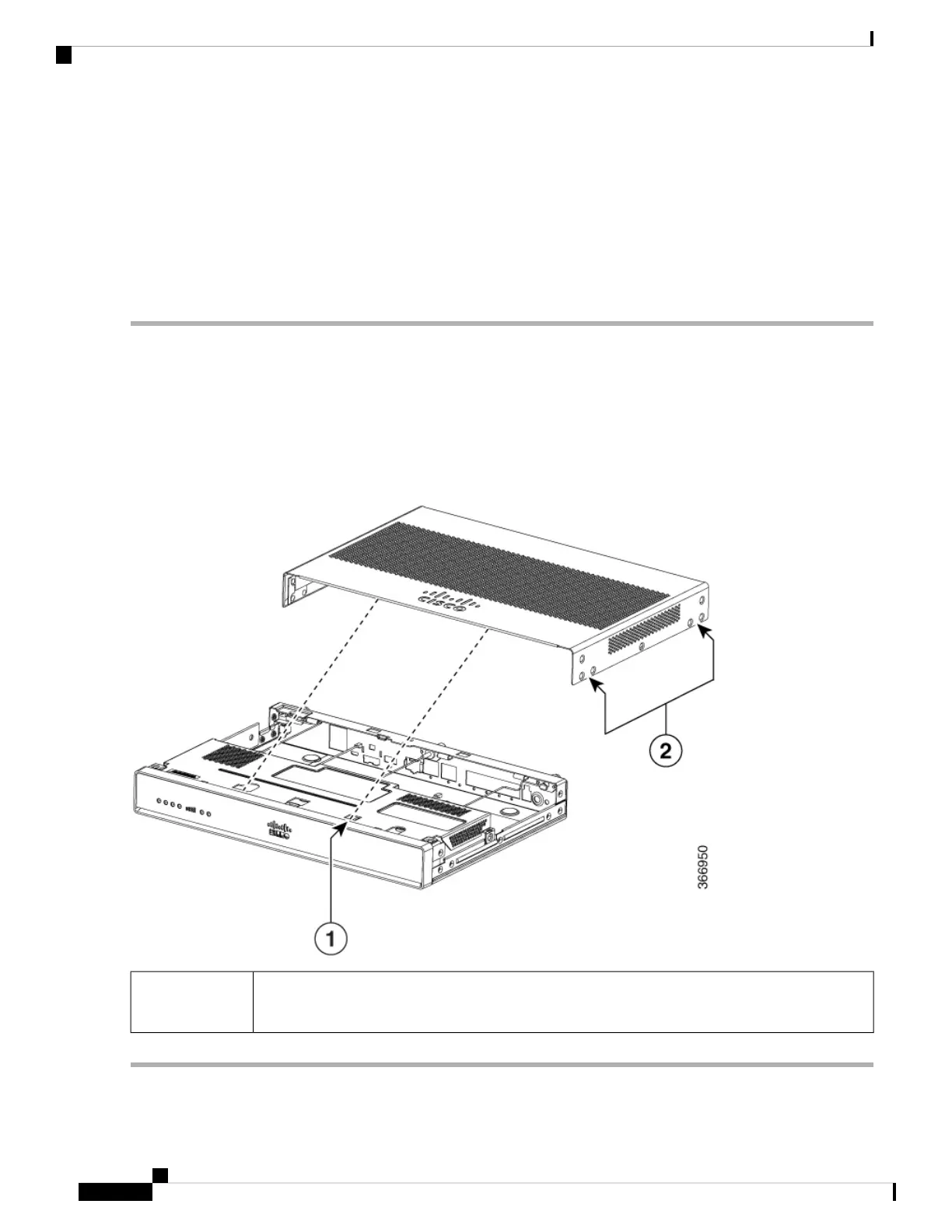

Step 6 Pull the cover to disengage the slots along the front (bezel) edge of the chassis, as shown in this figure.
Slots
Screw holes (7 numbers on each side)
1
2
Install and Upgrade Internal Modules and Field Replaceable Units
2
Install and Upgrade Internal Modules and Field Replaceable Units
Replace the Chassis Cover

Cisco C1101-4P Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Wi-Fi band	-
WLAN data transfer rate (max)	- Mbit/s
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	4
Security algorithms	AES, WPA2
Product type	Tabletop router
Product color	Gray
Country of origin	China
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	30 W
Internal memory	4000 MB
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 4570 m
Storage temperature (T-T)	0 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 85 %
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85176990
Package depth	333.502 mm
Package width	254 mm
Package height	177.8 mm
Package weight	3083.9 g
