Mounting the Switch in a Rack
Procedure
Step 1 Use the four supplied Phillips machine screws to attach the brackets to the rack.
Step 2 Use the black Phillips machine screw to attach the cable guide to the left or right bracket.

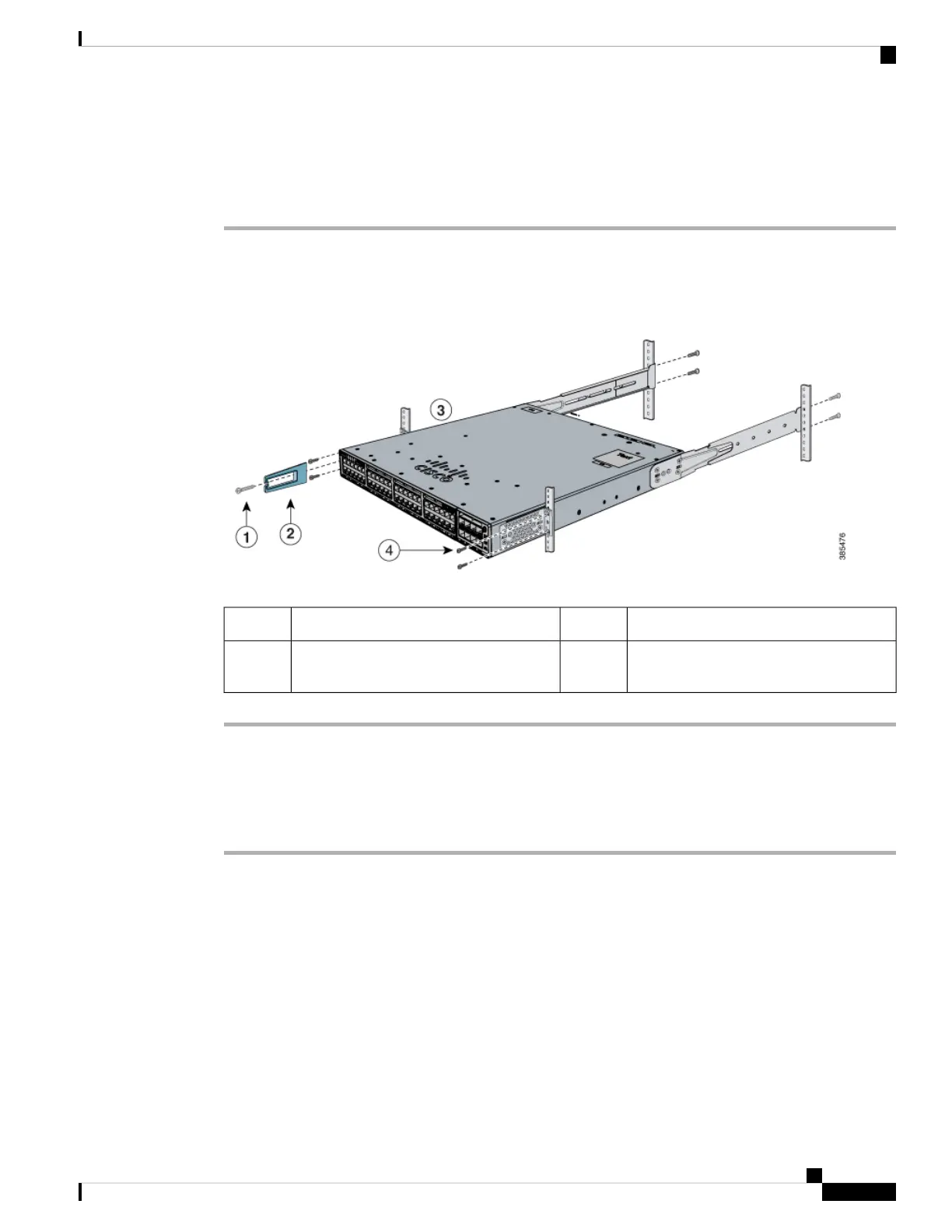

Figure 18: Mounting the Switch in a Rack
Front-mounting position3Phillips machine screw, black1
Number-12 or number-10 Phillips machine
screws
4Cable guide2
Installing the Switch on a Table or Shelf
Procedure
Step 1 To install the switch on a table or shelf, locate the adhesive strip with the rubber feet in the mounting-kit
envelope.
Step 2 Attach the four rubber feet to the four circular etches on the bottom of the chassis.
Cisco Catalyst 9200 Series Switches Hardware Installation Guide
27
Installing the Switch
Mounting the Switch in a Rack
