2-20
Catalyst 3560-C and 2960-C Switch Hardware Installation Guide
OL-23803-02
Chapter 2 Switch Installation
Mounting the Switch
On a DIN Rail
The DIN-mount kit (part number CMP-DIN-MNT=) is optional. You can order it when you order your
switch, or you can order it later from your Cisco representative.
The DIN-mount kit contains:
• Two number-10 Phillips pan-head screws
• DIN rail mount
To install the switch on a DIN rail, follow the instructions described in these sections:
• Attaching the DIN-Mount Tray to the Switch, page 2-20
• Mounting the Switch on a DIN Rail, page 2-21
• Removing the Switch from a DIN Rail, page 2-23
Attaching the DIN-Mount Tray to the Switch
Step 1 Place the switch on the DIN rail mount. See Figure 2-17.

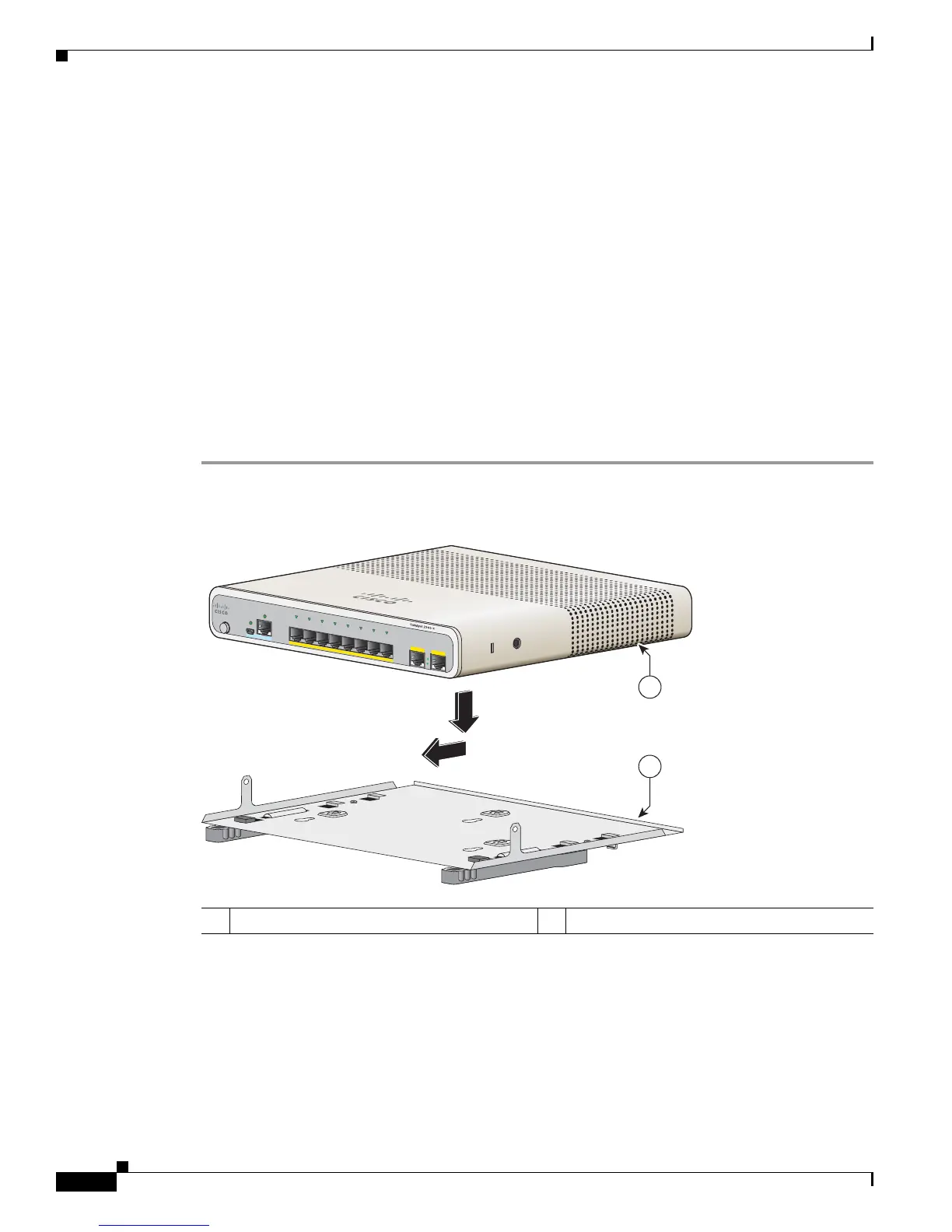

Figure 2-17 Placing the Switch on the DIN-Mount Tray
1 Switch 2 DIN rail mount
MODE
CONSOLE
1
2
Series
PD
POW
E
R
O
VER
E
T
H
ER
N
E
T
12345678
PD
SPD
PoE
DPLX
STAT
SYST
344212
1
2
