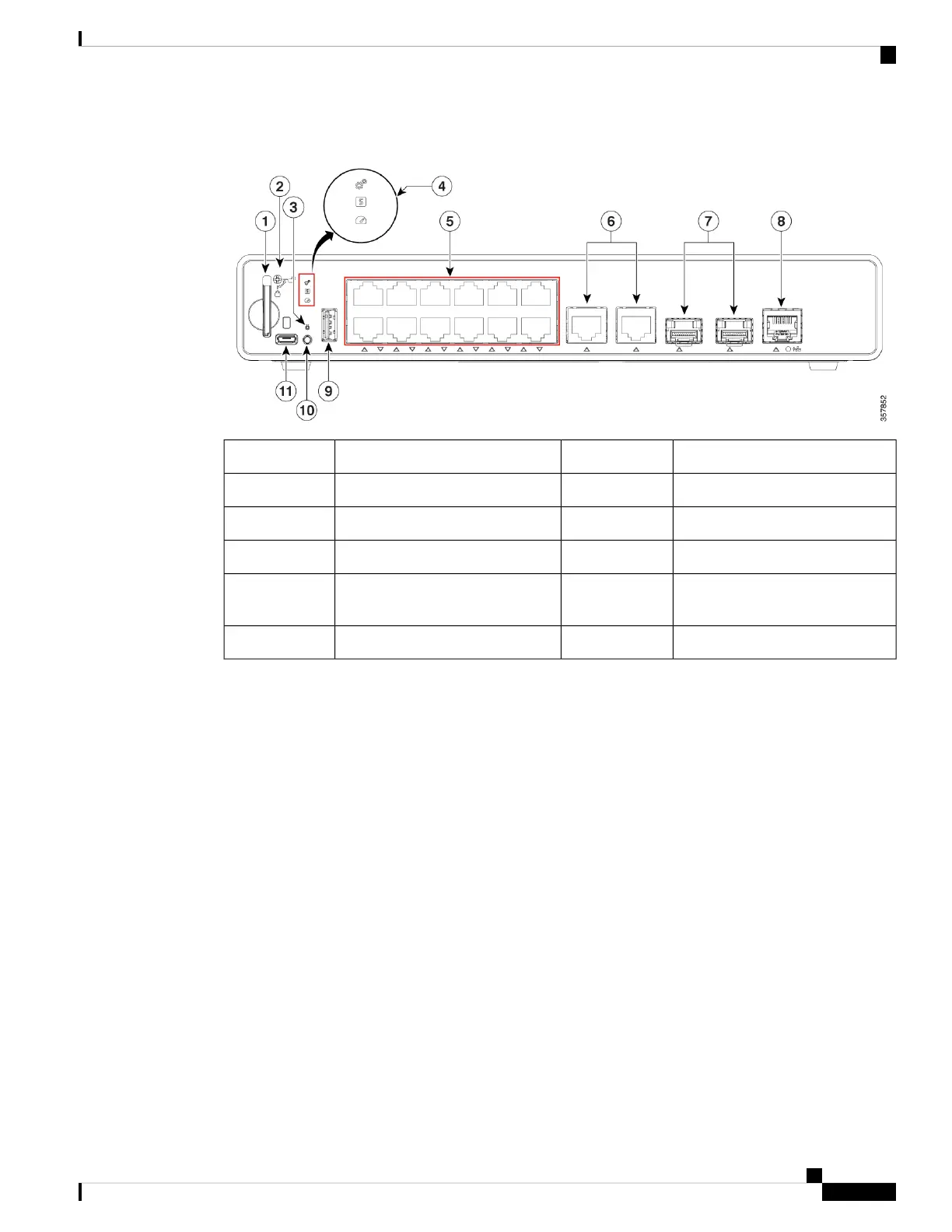

Front Panel of a C9200CX-12T-2X2G Switch
2x10G SFP+ uplink ports7SD Card slot1
1G copper uplink PD port8SD Card security lock2
USB Type A connector9Blue Beacon3
Mode button10Status LEDs4
USB micro-Type B (console) port1110/100/1000 Ethernet downlink
ports
5
--2x1G copper uplink ports6
10/100/1000 Ports
The 10/100/1000 ports use RJ-45 connectors with Ethernet pinouts. The maximum cable length is 328 feet
(100 meters). The 100BASE-TX and 1000BASE-T traffic requires twisted pair (UTP) cable of Category 5
or higher. The 10BASE-T traffic can use Category 3 cable or higher.
PoE and PoE+ Ports
The PoE and PoE+ ports provide the following functionality:
• PoE/PoE+ ports: Support for IEEE 802.3af-compliant powered devices (up to 15.4W PoE per port) and
support for IEEE 802.3at-compliant powered devices (up to 30W PoE+ per port).
• Support for pre-standard Cisco powered devices.
• Configurable support for Cisco intelligent power management, including enhanced power negotiation,
power reservation, and per-port power policing.
See the Internal Power Supply, on page 7 for the power supply matrix that defines the available PoE and
PoE+ power per port. The PoE circuit has been evaluated to meet the limits for Limited Power Source (LPS)
per Annex Q in IEC/UL 62368-1. It has also been evaluated as a class ES1, PS2.
Cisco Catalyst 9200CX Compact Series Switches Hardware Installation Guide
3
Product Overview
10/100/1000 Ports
