Cisco Catalyst 9600 Series Installation Note

DescriptionFeature
C9606R: Slots 1, 2, 5, and 6 only. However, you can install a line
card in any of the supported slots.
Chassis slot restrictions
2.4 Tbps per slotBandwidth per slot
Cisco Catalyst 9600 Series 48-Port 10 G/5 G/2.5 G/1 G/100 Mbps/10 Mbps (C9600-LC-48TX)
The following figure shows the front view of a 48-port 10 G/5 G/2.5 G/1 G/100 Mbps/10 Mbps
(C9600-LC-48TX) with the major features identified.

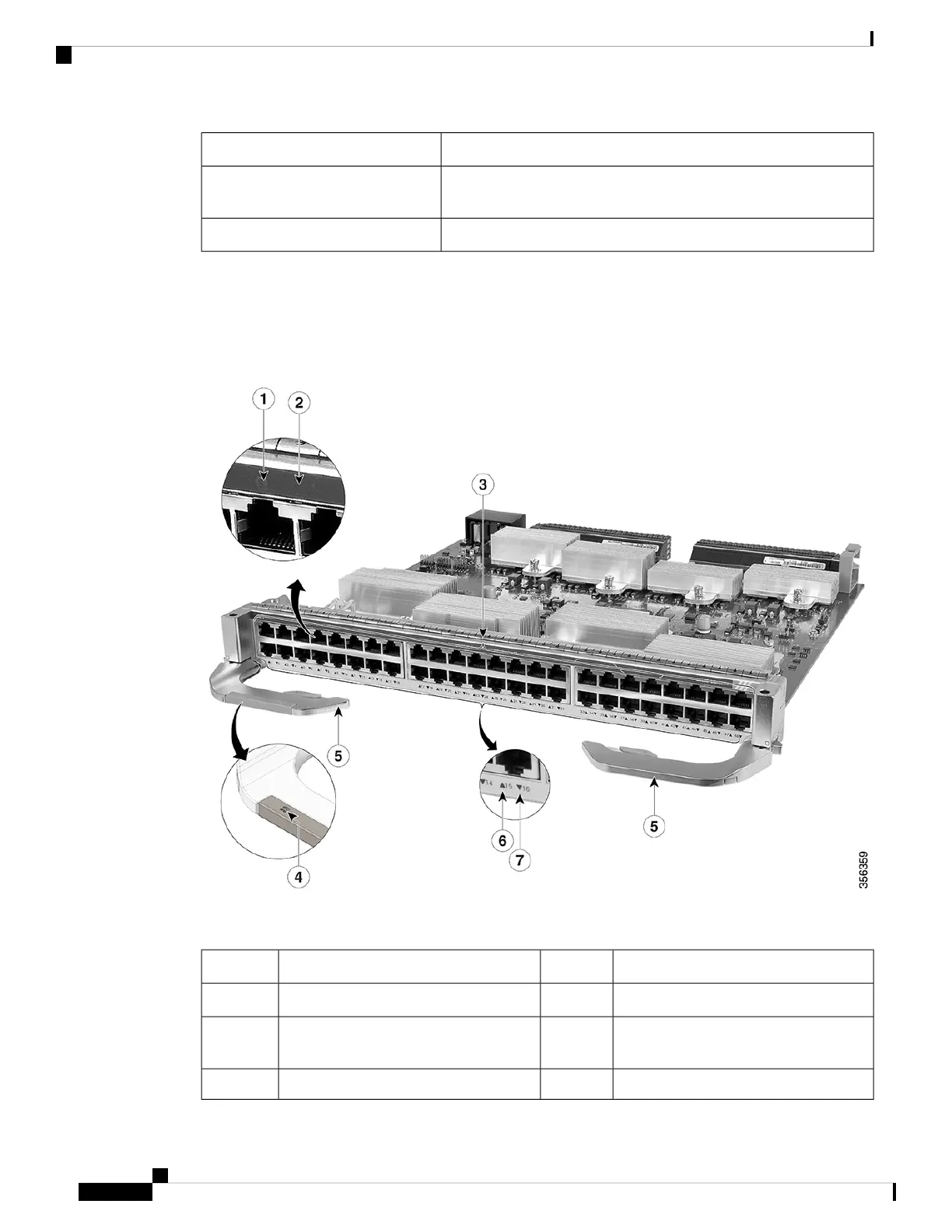

Figure 7: Cisco Catalyst 9600 Series 48-Port 10 G/5 G/2.5 G/1 G/100 Mbps/10 Mbps (C9600-LC-48TX)
Table 7: Front Panel Components
Ejector levers5Status LED1
Port Link LED for the port in the top row6Locate (Blue beacon) LED2
Port Link LED for the port in the bottom
row
710 G/5 G/2.5 G/1 G/100 Mbps/10 Mbps
RJ45 copper ports
3
--RFID embedded on the left ejector lever4
Cisco Catalyst 9600 Series Line Card Installation Note
6
Cisco Catalyst 9600 Series 48-Port 10 G/5 G/2.5 G/1 G/100 Mbps/10 Mbps (C9600-LC-48TX)

Cisco Catalyst 9600 Series Specifications

General

Series	Catalyst 9600 Series
Category	Switch
Switching Capacity	Up to 25.6 Tbps
Software	Cisco IOS XE
Form Factor	Modular chassis
Purpose	Enterprise campus core and distribution
Ports	10G, 25G, 40G, 100G, 400G
Redundancy	Yes, supports redundant power supplies and fans
Stacking	Virtual Stacking supported
Security	Advanced security features including MACsec encryption
Management	Cisco DNA Center, CLI, SNMP
Uplink Ports	40G, 100G
Power Supply	Redundant, hot-swappable
Operating Temperature	0°C to 45°C (32°F to 113°F)
Port Density	Up to 384 ports
Weight	Starting at 75 lbs (34 kg)
Modular Slots	Up to 6 line card slots
