Cisco Catalyst Wireless 9166D1 Series User Manual

Ensure that the access point cannot rotate about the pole.
Note
Step 7 Adjust the azimuth (side-to-side position) and the access point's elevation (up-and-down position).
Loosen the adjustment pivot nuts slightly to allow for adjustment.
You can use the azimuth and elevation markings on the articulating mounting arm and the flange brackets as
a guide. You can adjust the azimuth angle up to ±60 degrees and elevation up to +60 / -90 degrees.
Step 8 After adjusting the access point's position, tighten all nuts at the pivot points to 5.6 lb-ft to 5.9 lb-ft (7.6 Nm
to 8.0 Nm).
Step 9 Connect the Ethernet cable to the access point.
Mounting the Access Point Using Single Axis Articulating Bracket
The CW-MNT-ART2-00 mounting kit can be configured without the mounting arm. In this configuration,
the kit provides a single-axis pivot adjustment of up to ±50 degrees.
Note

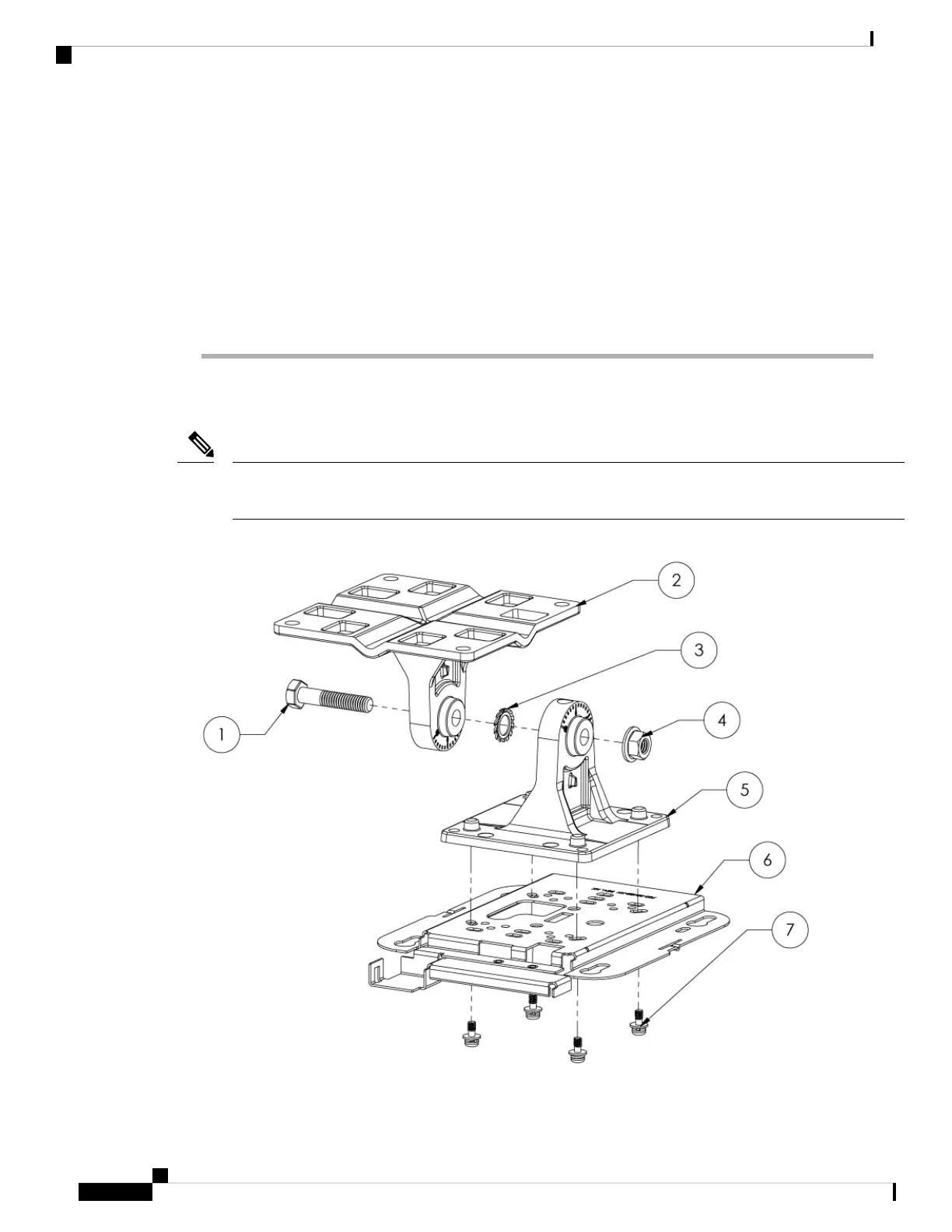

Figure 23: Exploded View of the Single Axis Articulating Bracket Hardware Assembly
Cisco Catalyst Wireless 9166D1 Wi-Fi 6E Access Point Hardware Installation Guide
26
Installation Overview
Mounting the Access Point Using Single Axis Articulating Bracket
