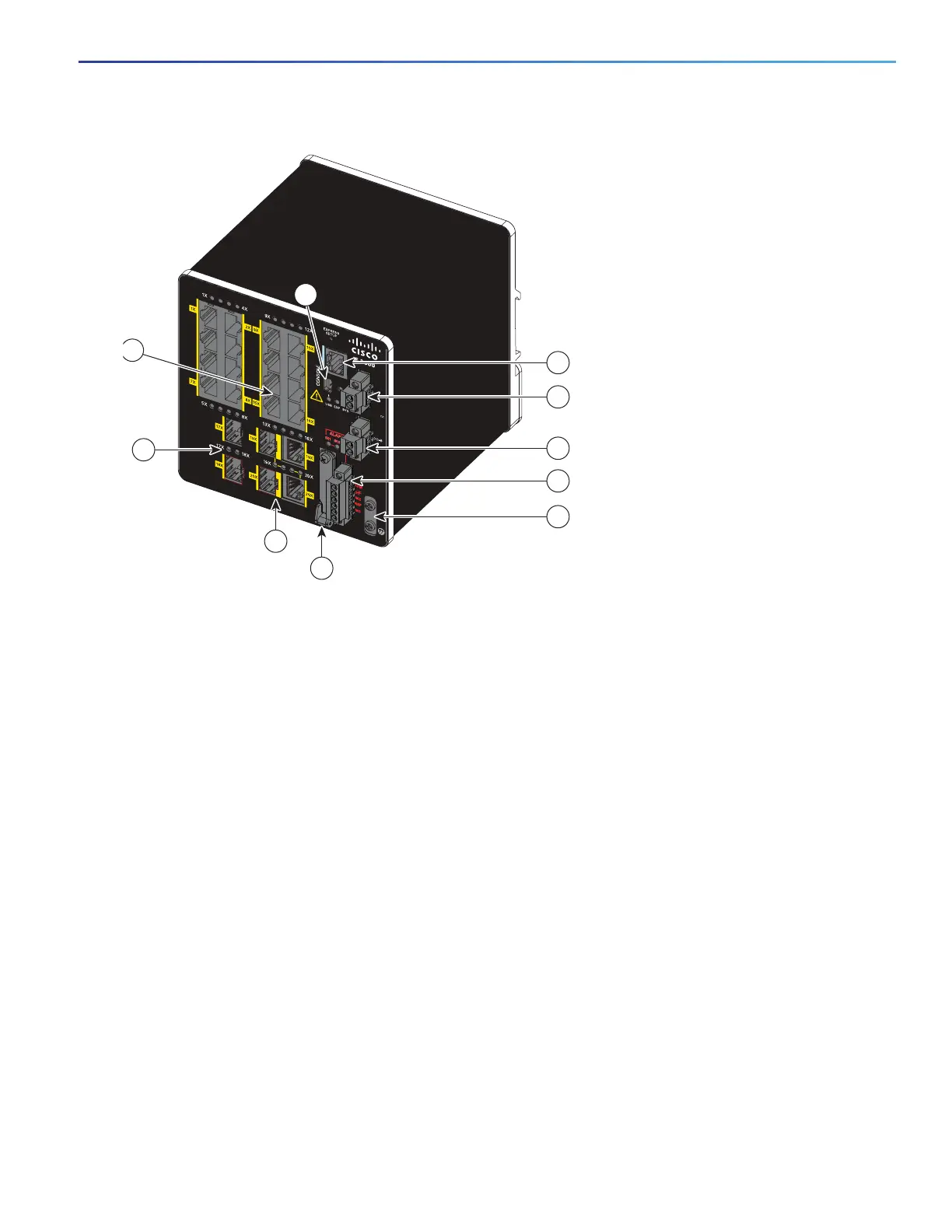

Figure 3 Cisco IE-2000-16TC-L Front Panel View
1 10/100 Ethernet ports (downlink ports) 6 Power connector DC-B
2
2 Dual-purpose ports (uplink ports) 7 Alarm connector
3 USB mini-Type B (console) port
1
8 Protective ground connection
4 RJ-45 console port 9 Flash memory card slot
1
5 Power connector DC-A
2
10 SFP module slots (uplink ports)
1
Use a screwdriver to remove the port cover and access the port.
2
Remove the plastic cover to access the power connector.
16TC
±12/24/48
0.5-3.0A
331544
1
10
4
5
6
7
8
9
2
3
