Cisco RV 120W User Manual

Cisco Small Business RV 120W Quick Start Guide 15

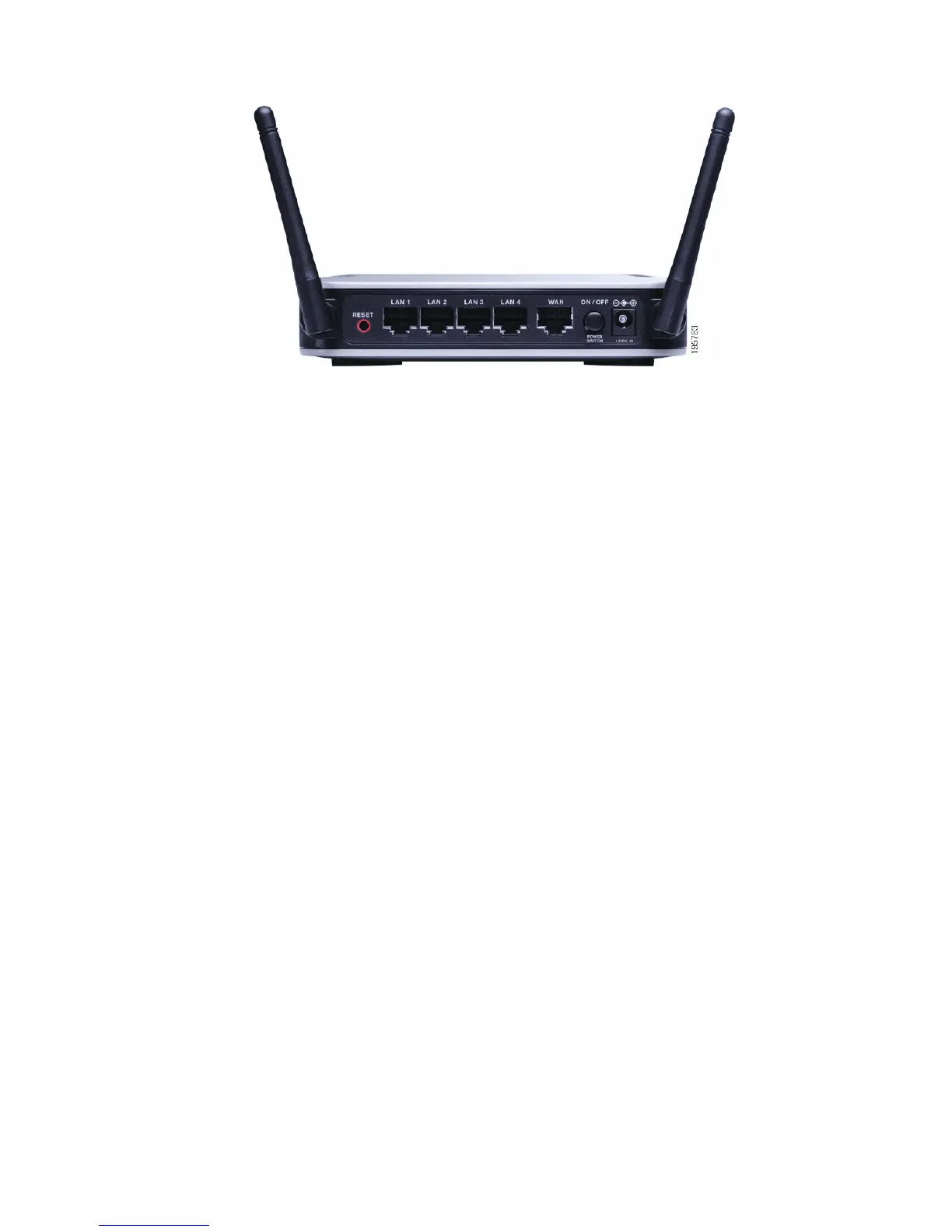

Back Panel
RESET Button—The Reset button has two functions:
• If the Cisco RV 120W is having problems connecting to the Internet,
press the RESET button for less than five seconds with a paper clip or
a pencil tip. This is similar to pressing the reset button on your PC to
reboot it.
• If you are experiencing extreme problems with the Cisco RV 120W and
have tried all other troubleshooting measures, press and hold in the
RESET button for 10 seconds. This restores the factory defaults and
clear all of the Cisco RV 120W settings.
LAN Ports (1-4)—These ports provide a LAN connection to network
devices, such as PCs, print servers, or additional switches.
WAN Port—The WAN port is connected to your Internet device, such as a
cable or DSL modem.
ON/OFF POWER SWITCH—Press this button to turn the Cisco RV 120W
on and off.
When the button is pushed in, power is on.
Power Port—The power port is where you connect the AC power cable.

Cisco RV 120W Specifications

General

Brand	Cisco
Model	RV 120W
Category	Network Router
Language	English
