724-Port 10/100 + 2-Port Gigabit Switch + 2 MiniGBIC
Chapter 3: Installation
Connection Instructions
Make sure all of the devices you will connect to the Switch are
powered off.
Connect a Category 5 Ethernet network cable to one of the
numbered ports on the Switch.

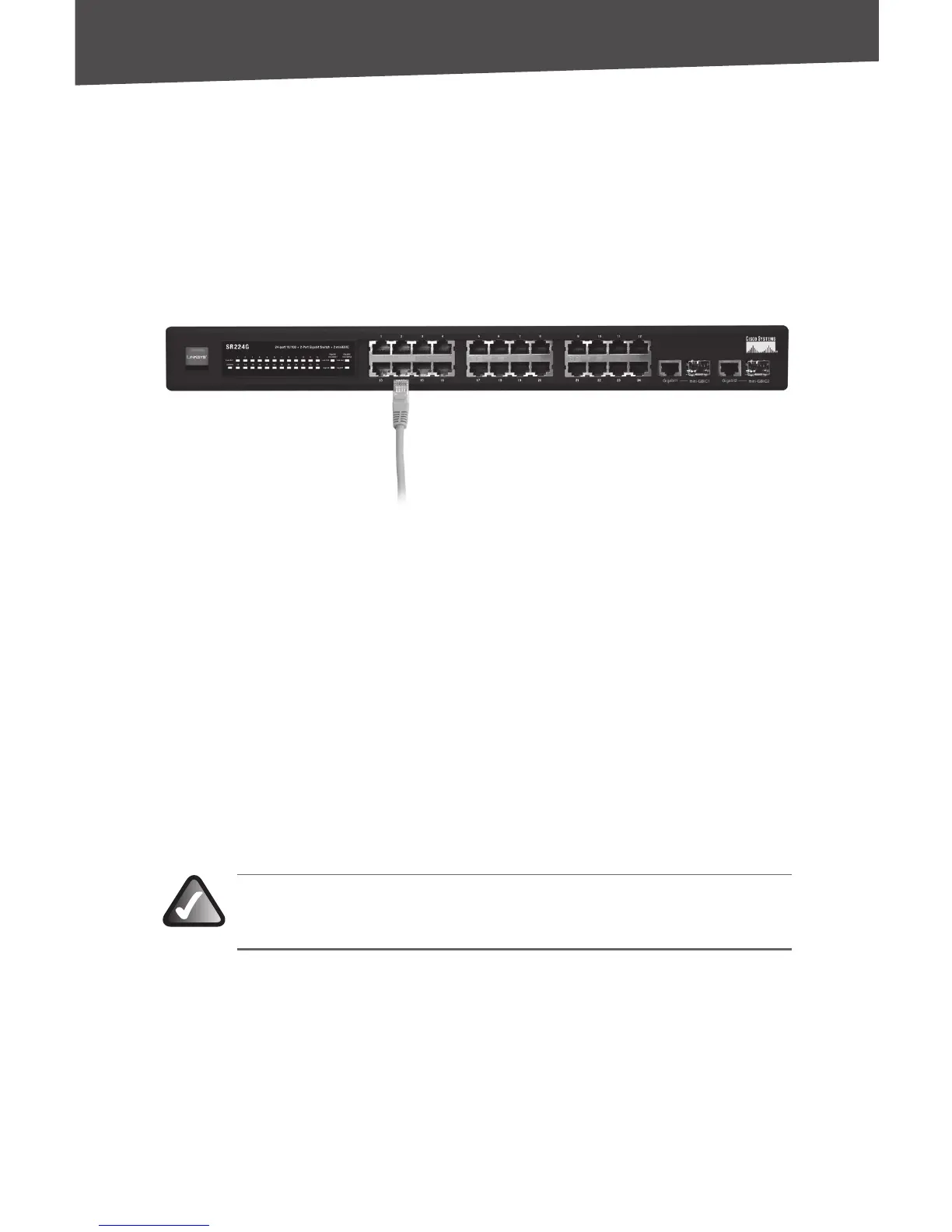

Connect the Ethernet Network Cable
Connect the other end of the Ethernet network cable to a computer
or other network device.
Repeat steps 2 and 3 to connect additional devices.
If you are using a Gigabit port, connect a Category 5e network cable
to a Gigabit port on the Switch, and connect the other end to a
Gigabit server or other network device.
If you are using a miniGBIC port, then connect a miniGBIC module
to a miniGBIC port. For detailed instructions, refer to the module’s
documentation.
NOTE: The miniGBIC ports are compatible with the MGBSX1,
MGBLH1, and MGBT1.
Connect the supplied power cord to the Switch’s power port. Plug
the other end of the adapter into an electrical outlet.
Power on the devices connected to the Switch. Each active port’s
corresponding LED will light up on the Switch.
Congratulations! The installation of the Switch is complete.
