IX5000 Field-Replaceable Units and Country- and Region-Specific Power Connectors
Replacing a Display—Part Number CTS-5K-70-G1=
Replacing a Left or Right Display
Step 1 Remove the bottom fascia by using the following procedure:
Note While two people make this procedure easier, only one person is required.

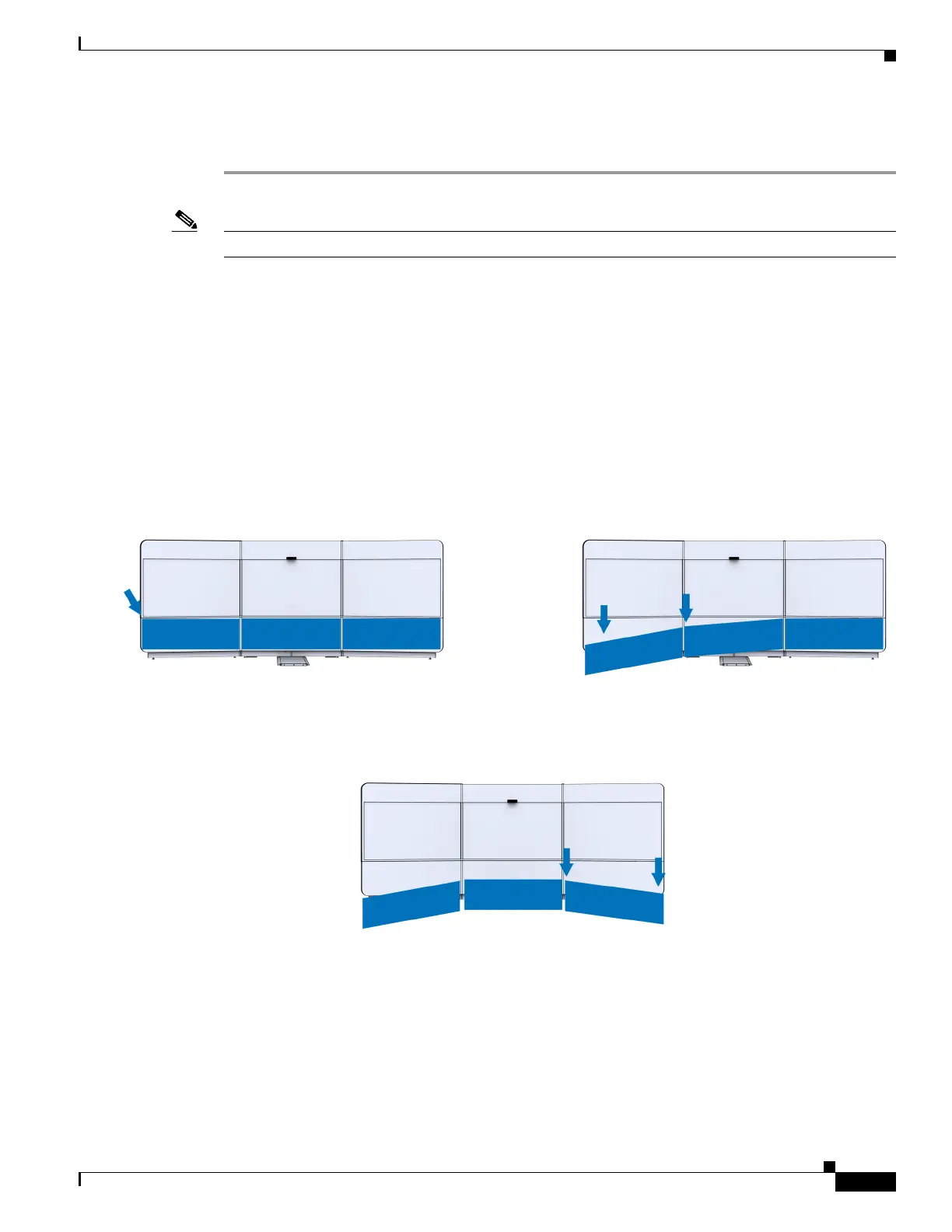

a. While wearing gloves, grasp the fascia from the left side at the top corner and pull it outward. Let
the fascia swing outward from its hinge.
b. Set the left side of the fascia on the ground, leaving it upright. Do not twist or put undue stress on
the joints.
c. Move to the center of the system, pull the center of the fascia outward, and set that part on the
ground.
d. Take the right end of the fascia at the upper corner, pull it outward, and set that on the ground.
Leave the center and side sections at slight angles so that it remains upright.
Step 2 Power down the two PDUs mounted on the lower left and lower right display frames.
