Cisco UCS C200 User Manual

1-2
Cisco UCS C200 Server Installation and Service Guide
OL-20732-02
Chapter 1 Overview

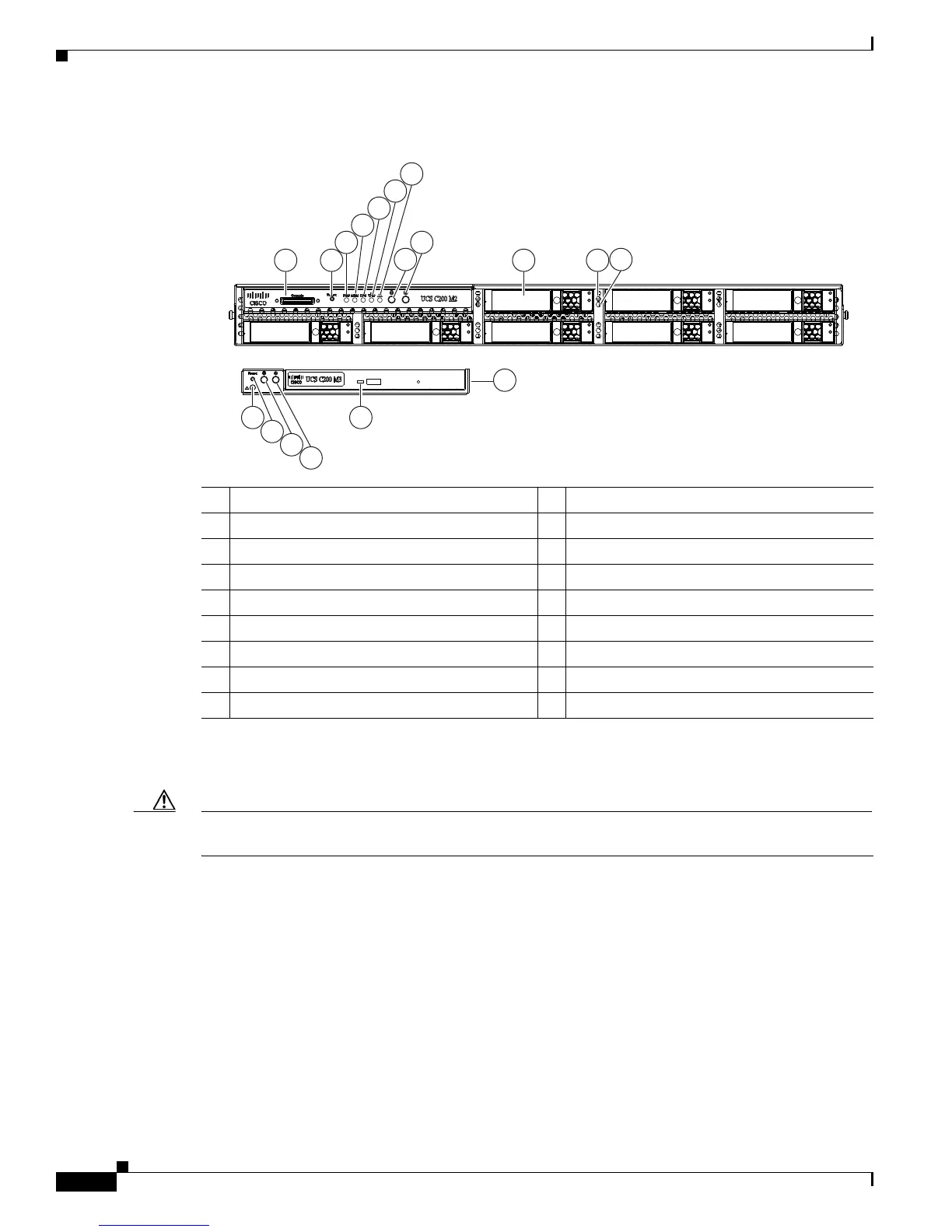

Figure 1-2 Front Panel Features, Small Form Factor
Caution Do not use the Reset button. This button is for development debugging only. This button will reset
memory and CPU settings to the defaults.
1 KVM console connector 10 Hard drives (up to 8)
2 Reset button
1
1. See the following caution.
11 Hard drive fault LED
3 Power supply fault LED 12 Hard drive activity LED
4 Memory fault LED 13 Optional DVD module
5 CPU fault LED 14 DVD activity LED
6 Network activity LED 15 Power button/Power status LED
7 System fault LED 16 Locator button/LED
8 Locator button/LED 17 Reset button
2
2. See the following caution.
9 Power button/Power status LED 18 System fault LED
-A-
1 10 112
3
4
5
6
7
8 12
9
18 14
13
17
16
15
310369
