Installing the WBPN Wireless-N Bridge for Phone Adapters
Installing the WBPN Into the SPA Phone Stand
Cisco WBPN User Guide 17
1

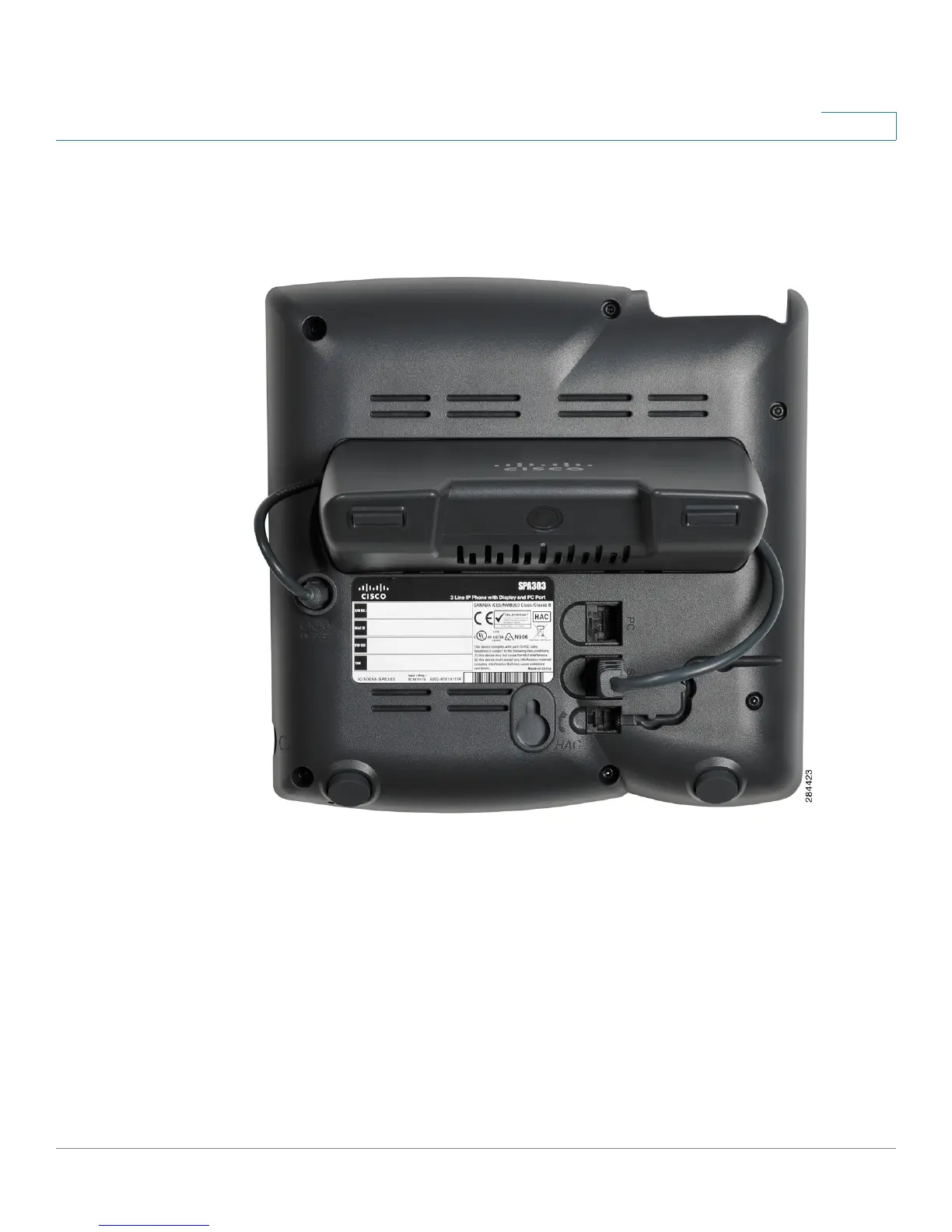

STEP 4 Route the WBPN power cable through the left side of the phone stand.
STEP 5 Route the network cable from the WBPN to the Ethernet port on the phone through
the right side of the phone stand.
STEP 6 Line up the tabs on the desk stand with the slots on the back of the phone.
STEP 7 Slide the bottom tabs into the slots.
STEP 8 Ensure all cables are tucked inside the stand and will not interfere with the stand
attachment.
