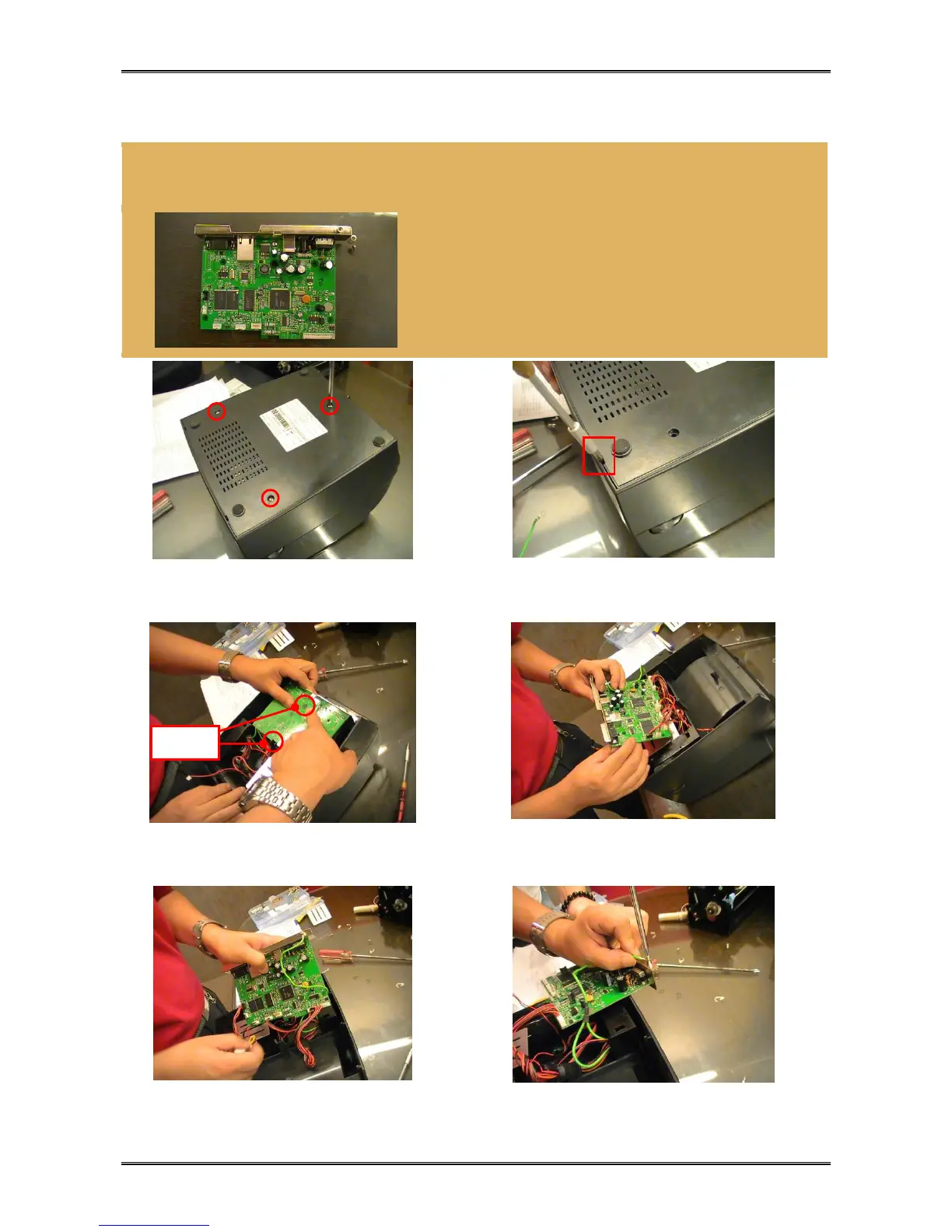

2-2. Disassembly Procedure
(1)“SA MAIN PCB 1 SP 321(PPS00173-00)”, (2)“SA MAIN PCB 2 SP 321(PPS00174-00)”
Unscrew and take out 3 screws on the bottom
cover.
Lift up the bottom cover gently from the cut-out portion
by using a flat-head screw driver.
The main board is held by two points with the
body frame. One with a hole and one hook.
Pull up the main board.
Unplug cables.
Unscrew and take off the ESD cable.
Hooks
